Chromalox® 2110 Digital 1/4 DIN Temperature Controls

Mor Electric Heating is an authorized distributor for Chromalox®

• UL Listed
• Easy Three-Step Setup
• High Current Output Option
• 10 Amp Solid State Relay
• 20 Amp Mechanical Relay
• Plug-In Output Cards
• J, K Thermocouple, or RTD Selectable Inputs, °F or °C Indication
• Alarm Relay Output Option
• NEMA 4X Front Panel
• Compact 1/4 DIN Design 4" Depth

The Chromalox 2110 Temperature controller offers simple setup, flexibility and control features in an attractive, compact design that both OEMs and users will find cost effective. The 2110 is housed in a rugged, plastic 1/4 DIN package that only requires four inches behind the mounting surface. Straightforward operation and easy-to-use control features are major strengths of the 2110 controller.

Easy Three-Step Setup: The 2110 delivers exceptional process temperature control. Your process is up and running after three easy setup steps: 1) Select the sensor and control type, 2) Hook up the system and 3) Select the desired temperature.

Full Feature Outputs: A total of six output functions further extend the applications flexibility of the 2110 controller:

• 1 Amp Relay
• 20 Amp Relay
• Solid State Relay Drive
• 1 Amp Solid State Relay
• 5 Amp Solid State Relay
• 10 Amp Solid State Relay

The 2110 features a variety of output cards including High Current options of a 10 Amp Solid State Relay or 20 Amp Mechanical Relay. These outputs can directly control many cartridge or strip heaters, eliminating the need for a remote contactor or solid state relay. For larger three-phase loads, the 2110 can drive a remote device with the Pilot Duty Relay or Solid State Relay Drive outputs.  The optional Alarm Output gives you a non-latching, normally de-energized, 5 Amp relay output for over or under temperature protection of critical process temperatures.

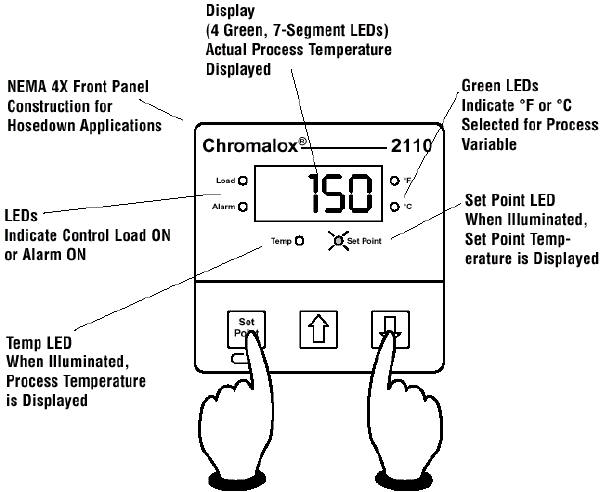

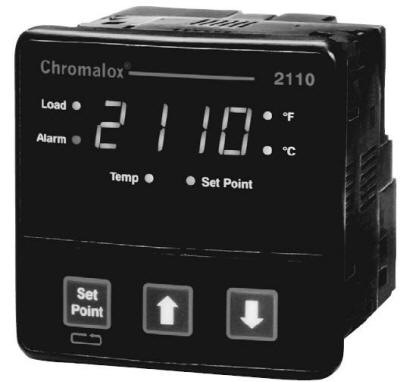

Packaging with the User in Mind: The 2110 features a NEMA 4X front panel with tactile feedback push buttons. The buttons allow even the heaviest gloved hand to easily configure this controller. Large, bright LED’s provide an easy-to-read interface at a distance.

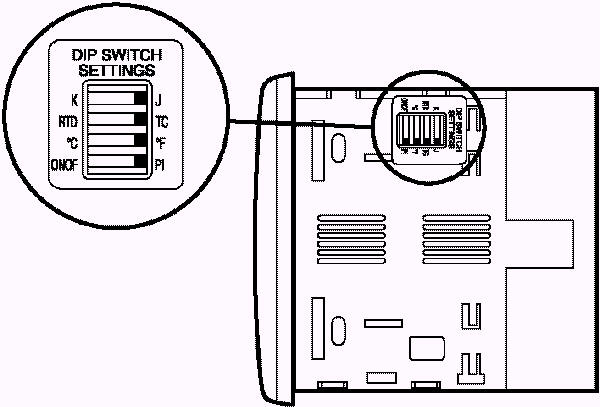

Flexibility: Output cards are plug-in modules that are field replaceable. The switch-selectable control modes include On-Off or Proportional-Integral (PI).

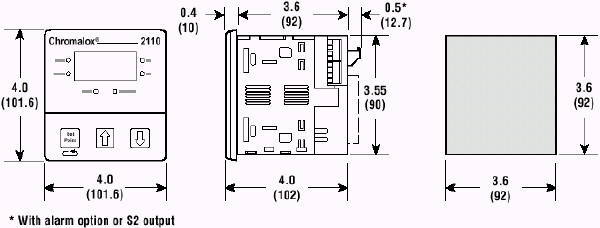

Mounting Dimensions (Inches)

Control Modes
ON/OFF
PI—Proportional with integral

Control Adjustments
Proportional Band............Sensor range
Automatic Reset ..............0.0 to 99.9 repeats/minute
Cycle Time ......................0.1 to 60.0 seconds
On/Off Deadband ............1 to 100°F
Set Point Upper Limit ......Sensor range
Set Point Lower Limit ......Sensor range
Output Limit ....................0 to 100%

Alarm Adjustments
Type ................................Absolute High or Low
Set Point ..........................Sensor range
Alarm Dead Band ............0 to 100°F

Control/Alarm Outputs
Relay (R1)........................1 Amp Form A, 120/240 VAC
Relay (R3)........................120/240 VAC resistive loads at 30 sec. cycle time
........................................20 Amps, 500,000 Operations
........................................15 Amps, 1 Million Operations
........................................10 Amps, 5 Million Operations
........................................5 Amps, 5 Million Operations
Solid State Relay Drive(V0) 24 VDC at 40mA
Solid State Relay (S0)......1A Triac
Solid State Relay (S1)......5A, up to 240 VAC at 40°C
Solid State Relay (S2)......10A, up to 240 VAC at 40°C
Alarm ..............................Form C, Relay 5 Amps at 120 VAC, 2.5A at 240 VAC

Sensor Input ......................Switch selectable J, K Thermocouple or RTD

Input Update Rate ............Four samples per second

Readout Stability
J and K TC ......................+/-1°F per 10°F change in ambient temp.
RTD..................................+/-0.5°F per 10°F change in ambient temp.

Open Sensor and Out-of-Range Conditions ..............Displays "SEnS", Control output 0%

Instrument Power ..............100 to 240 VAC input +10%, -15% Less than 10 VA

Operating Environment ....0 to 65°C (32 to 150°F)

Enclosure Material ABS plastic rated for 0 to 175 °F

Front Panel ........................NEMA 4X construction

Influence of Line Voltage Variation..............+/-0.1% of sensor  span per 10% change in nominal line voltage

Chromalox Specification Data Sheet
