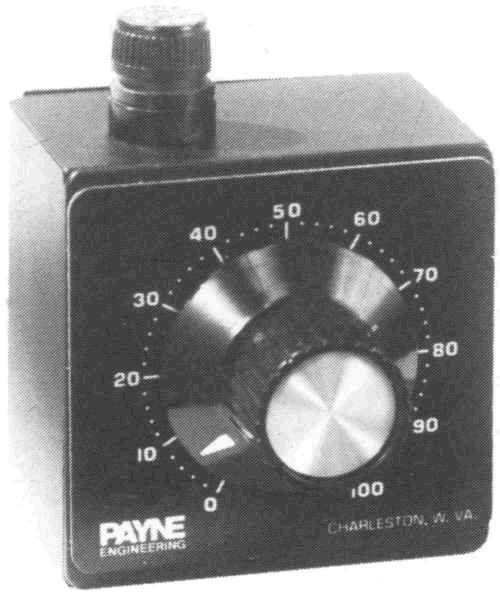

Payne Engineering 18TBP SCR Power Controls

Payne Engineering Company
Scott Depot, WV
Tel: (304)757-7353, Fax: (304)757-7305
e-mail: info@PaynEng.com
www.PaynEng.com

We are an authorized distributor for Payne Engineering.

FEATURES

TYPICAL APPLICATIONS

Model 18TBP controls provide infinitely variable control of single-phase a.c. voltage to resistive heating elements. These controls are solid-state replacements for variable transformers, mercury relays, saturable core reactors, and electromechanical contactors. Power Triacs replace contacts and brushes to control electric power without moving parts, and, when operated within their stated ratings for current, voltage, and temperature, have no known MTBF or life expectancy rating.

PANEL- OR CHASSIS-MOUNT Model 18TBP controls are compact, lightweight packages that employ single hole mounting to panels and enclosure doors, utilize an electrically isolated heatsink chassis.

Dimensions: 2.5" x 2.5" x 2"
Open Chassis Dimensions: 3.2" x 2.5" x 2.5"

EXCLUSIVE ADVANCED TECHNOLOGY:
Three Pillars Of Protection

Model 18TBP controls incorporate exclusive design features to protect power semiconductor components against damage. "2 millisecond" fuses protect against short-circuit damage; an R-C snubber network protects against dv/dt failure; an integral heatsink chassis allows continuous operation in ambients to 500C with no derating.

SPECIFICATIONS

SIZING CONSIDERATIONS
Model 18TBP controls are rated for use with constant resistance loads. Size units by actual load current, not kW.
1> Always use maximum possible load current for sizing purposes
2> The amp rating is determined by the fuse. Current draw must not exceed the fuse rating at any time.
3> Rated voltage of connected load should match control input voltage.

SIZING EXAMPLE
Application: single-phase, 800 watt nichrome heating element; input voltage 120 VAC, 60 Hz.
Model Number Selection:

a. Triac-based variable-voltage: 18TB
b. Panel-mount: P
c. 120 VAC input: -1-
d. Amp rating, calculated as follows:
800/120=6.66 amps
Since 6.66<10, amp rating: 10
Model Number: 18TBP-1-10.

WHEN ORDERING, SPECIFY:

· Model Number
· InputVoltage
· Load Specifications

PERFORMANCE NOTE: Triac power circuits may "Slave" when multiple units are used on 240 VAC lines derived from three phase mains. For optimum performance, use on single phase, 240 VAC derived from 3-wire, 120/240 VAC mains.

Description: Single Phase, Phase Angle Control, using power TRIACs.
Application: Variable Voltage Control of Constant Resistance Loads.

Payne 18TBP-1-15: RL (Ohms) Minimum Load Resistance = 8 (For resistive loads a minimum load resistance RL is always implied by the voltage and the current rating of your power control.  Dividing the maximum output voltage (i.e. the input voltage) by the current rating will give you this value.  Ohm's Law, E=I*R)

Payne 18TBP-2-15: RL (Ohms) Minimum Load Resistance = 16 (For resistive loads a minimum load resistance RL is always implied by the voltage and the current rating of your power control.  Dividing the maximum output voltage (i.e. the input voltage) by the current rating will give you this value.  Ohm's Law, E=I*R)

MODEL NUMBER FUSE AMPS KVA @ MAX RATED VOLTS
*120 VAC INPUT, 0-118 VAC OUTPUT, 50/60Hz *
18TBP-1-5 5 .6
18TBP-1-10 10 1.2
18TBP-1-15 15 1.8
*240 VAC INPUT, 0-235 VAC OUTPUT, 50/60Hz * (ALSO FOR 220/230 VAC INPUT)
18TBP-2-5 5 1.2
18TBP-2-10 10 2.4
18TBP-2-15 15 3.6

NOTE-1 Model 18TBP controls are designed for panel (door) mounting.
NOTE-3 These controls use power triacs, which may "slave" when used on lines derived from three phase mains. Recommend that these units only be used on single phase supplies.

Payne Product Information Sheet

You must have the free Adobe Acrobat Reader plug-in.

Secure Online Ordering
Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method.  Your shipping cost will be displayed in your shopping cart.

Item ID Catalog # Description

Click "Select" below to see our price and actual real-time quantity in stock

PAYNE10001 18TBP-1-15 Payne Engineering 120V Solid State Variable Temperature Power Controller. 120 VAC INPUT, 0-118 VAC OUTPUT, 50/60Hz Select
PAYNE10002 18TBP-2-15 Payne Engineering Solid State Variable Temperature Power Controller. 240 VAC INPUT, 0-235 VAC OUTPUT, 50/60Hz (ALSO FOR 220/230 VAC INPUT)

Select
