EASYHEAT Sno-Melter Mats (G Mats)

Links to related products:
ETI Automatic Controls, Remote Control Unit, Satellite Contactor and Snow Sensor Automatic Control For Snow Melting
Crydom Hybrid Solid State Contactor, RHP Series, 3 Phase Contactor, AC or DC Input, 40-50 Amp, 120/240 or 280/600 VAC (A replacement for Mercury)
Chromalox 4003 DIN-Rail Mount Power Controller (A replacement for Mercury Relay Contactors)
HB Controls Crossovers from Mercury Relay Contactors

Link To EGS Home Page - New Window EasyHeat Heating Products
We are an authorized distributor for Easy Heat, Inc.

Combined with the intelligence of snow melting controls, Sno*Melter® Mats provide the ultimate in economical, worry free and reliable snow and ice removal. Installed beneath the surface and appropriately controlled, these cables will heat the surface area above freezing, thereby melting any snow or ice. Pedestrians and vehicles can then move securely on the protected surface.

Sno*Melter® electric mats are designed to be embedded in concrete or asphalt, either as part of a new installation or when re-paving. Because the snow melting mats operate for relatively short periods each winter, operating costs are less than most other snow and ice removal methods.

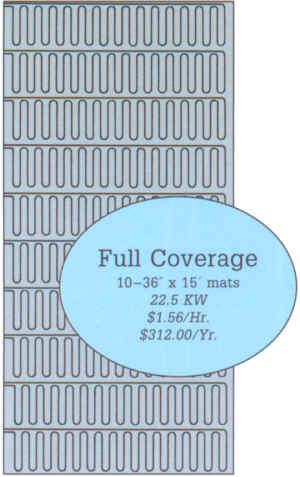

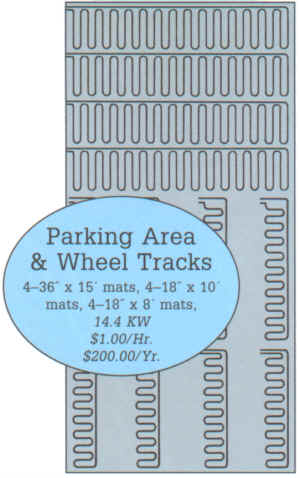

Design Options for a Typical 16' x 32' Driveway

Where to use Sno*Melter
  • Custom, single family dwellings
  • Condominiums, villas
  • Pedestrian accessibility ramps
  • Hospitality pick-up/drop-off zones
  • Multi-deck parking facility ramps
  • Passenger platforms for bus stations and train depots
  • Heliports and hangar door rails
  • Loading docks
  • EMS/ambulance entries for hospitals and firehouses
  • Roads, bridges, tunnels, weigh scales Automotive transaction facilities

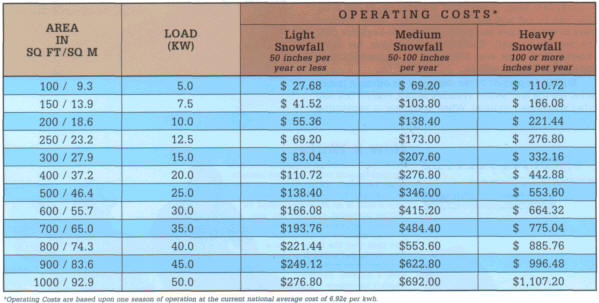

Operating costs for your area will depend upon the total hours of snowfall and upon the heating capacity you specify. Our recommended heat density of 50 watts (nominal) per square foot provides quick response time, especially when used with automatic control. In most cases, snow will melt at a rate that keeps up with average snowfall, minimizing accumulation of snow on the heated surface. In a heavy snowfall, when snow accumulates at a faster rate, extra heating time will be required for complete removal. Automatic control, set to allow additional running time after snowfall stops, ensures drying the pavement and minimizes icy spots.  An electric snow melting system is a practical, economical way of preventing the build-up of ice and snow on steps, walkways, driveways, parking areas, loading docks and even roads.

UL Listed

Compare electric mats with traditional snow removal methods:
  • No damage to concrete or asphalt from salt or other chemicals
  • No messy build-up of sand
  • No waiting for snow-clearing service personnel
  • No investment in snowblowers, shovels, plows and other expensive equipment
  • No labor costs

Snow*Melter® electric mats are more effective than traditional methods. Just turn on to create a heated surface that melts snow as it falls. There are no moving parts. Properly installed, mats normally provide trouble-free service as long as the pavement or concrete in which they are embedded is not disturbed or damaged. Electric mats provide reliable, convenient snow melting.

How it Works

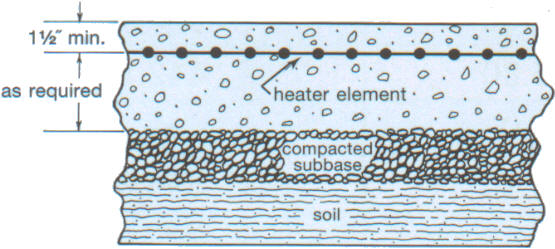

Cross section drawing illustrates how heating mats operate within a poured concrete or asphalt slab. Close spacing of low-temperature heating wire, arrayed to form a mat, is an effective method for heating pavement, provides fast, economical installation and assures even distribution of low-temperature heat over the entire surface. This eliminates strips of snow or ice often left by cable systems with a heating pattern which is too spaced.

Automatic Electric Snow and Ice Melting System

Expect a better solution to clearing snow, ice and freezing rain than plowing, shoveling and salting. It's easy to imagine property damage, time lost to customers or money paid for contracted snow removal. Imagine instead a clear, dry pavement when you need it without using moving parts, chemicals or labor.

For areas small or large, residential or commercial, use Easy Heat's Sno*Melter - an automatic electric system that melts snow and freezing rain on contact with the pavement. Operating only when it needs to, Sno*Melter is efficient and economical. Sno*Melter is UL Listed, too.

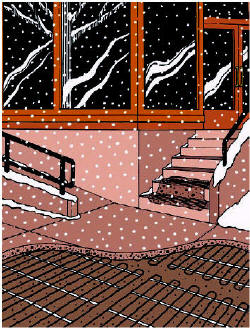

A Sno*Melter system includes electrical heating mats placed in either concrete or asphalt. When energized, these mats warm the surface and melt ice and snow, leaving pavement both clear and dry. With a specially designed sensor embedded in the pavement, the Sno*Melter master control box turns the system on and off when needed, automatically.

Applications

Sno*Melter in the driveways of homes, chalets and cottages in the snow-belt use standard sized mats that allow the owner to work with off-the-shelf components, keeping costs to a minimum. Steep or long drives are no longer a snow-removal concern.

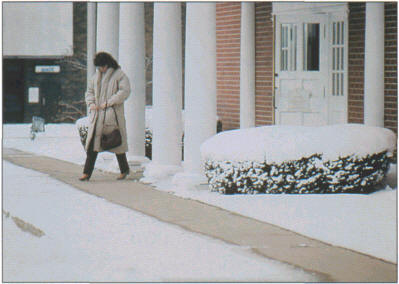

Stores, restaurants, banks and libraries install Sno*Melter systems at their pedestrian entries, providing clear, dry paths for their employees and customers -especially the physically challenged. No need to spread salt that shortens the life of carpets inside and corrodes plantings outside. When special finish concrete is used to beautify these areas, then avoiding salt and plow damage becomes more important.

Industrial plants and distribution centers with around-the-clock operations install Sno*Melter in key areas, particularly outdoor loading docks, steps and ramps. Often there is no time or opportunity to plow or salt these busy areas.

Easy to Buy

Easy Heat Sno*Melter systems are sold nationwide through leading electrical distributors. These professionals are supported by a factory staff that translates ideas into detailed plans using CAD digital technology.

Easy to Design

The Sno*Melter system uses highly efficient heating cables manufactured into mats that install quickly and economically. They are placed about 2" below the surface in concrete or asphalt and connected to an electrical power source. Standard Sno*Melter mats, 18" or 36" wide, are used for most walks and driveways, measuring four to thirty feet long, in standard voltages up to 480 VAC. Mats can be cut and shaped to fit curved edges. Custom mats in special sizes and power ratings are available from the factory as well.

Equally important to the design of an efficient installation are the Sno*Melter system's sensor, control box and other specialized controls. When designing or submitting plans for a specific project, East Heat may recommend the appropriate components necessary. A detailed technical guide is available on request.

Easy to Install

Once the design is complete and the products have been purchased, an electrical contractor installs the system. The electrical contractor works closely with the paving contractor prior to paving, test fitting the mats in the forms and routing all power and sensor wiring out of the target area. Following pavement placement, all system components are connected to the power source, operationally prepared for the first snowfall.

Easy to Use

The best feature of the Sno*Melter system is its ease of operation. Once installed and energized, the system is ready for snowfall or freezing rain. The sensor activates the embedded heating mats when it detects the presence of moisture at temperatures below 380F (3.30C). The system continues to melt snow or ice until the pavement is clear and dry. Optional control panel provides a user adjustment permitting system performance to be conformed to wind and accumulation patterns unique to the location/site-by extending operating time (0-10 hours) after snowfall ceases. Irrespective of meteorological conditions, a manual pushbutton allows the system to melt snow blown from adjacent areas or slush deposited by pedestrian or vehicular traffic.

Sno*Melter step-mats

For snow removal from most step shapes, are designed for easy installation without splices.  Designed for stair (step) applications.  Factory stock in 208 and 240 Volts.  Supplied with 10' cold leads standard.  Contact us for longer cold leads, other sizes, voltages and watt densities.

Crydom 3RHP Series, AC Input, 3 Phase Hybrid Solid State Contactor, 40-50 Amp Output, (280 or 600 VAC (A replacement for Mercury). Solid state and mechanical switching technologies are combined to provide the performance advantages of both technologies in the industry standard DP contactor package
Crydom 3RHP Series, DC Input, 3 Phase Hybrid Solid State Contactor, 40-50 Amp Output, (120 or 240 VAC) (A replacement for Mercury).  Solid state and mechanical switching technologies are combined to provide the performance advantages of both technologies in the industry standard DP contactor package
Crydom 1RHP Series, AC or DC Input, 1 Hybrid Solid State Phase Contactor, 20 Amp Output, (90-250 VAC) (A replacement for Mercury). Solid state and mechanical switching technologies are combined to provide the performance advantages of both technologies.  No heat sink required, DIN rail mount.
Chromalox 4003 DIN-Rail Mount Three Phase Power Controller. (A replacement for Mercury Contactors/Relays), Three Phase Loads up to 60 Amps, 575 Vac, 9-35 Vdc, 100-240 Vac or 24 Vac Input Signals, Easy DIN-Rail or Sub-Panel Installation, Size Compatible for Easy Replacement of Mercury Displacement Relays, Optional Integral Heatsink Thermostat
Model HSC–4 Pavement-Mounted Deicing Controller - Automatic Deicing Control Saves Energy
LCD-7 Aerial Snow Controller Automatic Control For Snow Melting. Snow Switch. Energy saving alternative to thermostat, manual or timer controls. 120 volt direct heater control for small applications such as wheelchair ramps and stairways or may operate external contactors in larger installations.

Secure Online Ordering
Delivery time for the following products: Some standard mats with standard 20 foot cold leads are typically in stock at Mor Electric Heating and are processed/shipped in 1 working day or less.  Mats not in stock will typically ship in 5-7 working days or less plus allow additional time for your selected UPS or FedEx shipping method.  Your shipping cost will be displayed in your shopping cart.  This delivery time is for normal conditions and is subject to EasyHeat factory availability.

Also listed below are mats with extra factory spliced on cold leads for a total of 30, 40, 50 or 60 feet (typically ships in 10-13 working days or less.)   Contact us for other cold lead lengths, nameplates for NEC 426-13 compliance, mats of other voltages (208, 277 and 480) and mats of other sizes or watt densities (H mats).  We also provide a variety of automatic controls (ETI LCD-1 Automatic Control For Snow Melting with Small Systems, ETI Automatic Controls, Remote Control Unit, Satellite Contactor and Snow Sensor, 12 hour timer, and Chromalox 4003 DIN-Rail Mount Power Controller (A replacement for Mercury))
18" wide mats
Item ID Catalog# Description Wattage/Voltage Total Cold Lead Length Price Click "Select" below to see our actual real-time quantity in stock
EASY10115 G05X18-2-50-20A 5' long x 18" wide mat 375 watts, 240 volts 20 feet $123.75 Select
EASY10491 G05X18-2-50-30A 5' long x 18" wide mat 375 watts, 240 volts 30 feet $139.05 Select
EASY10492 G05X18-2-50-40A 5' long x 18" wide mat 375 watts, 240 volts 40 feet $154.35 Select
EASY10493 G05X18-2-50-50A 5' long x 18" wide mat 375 watts, 240 volts 50 feet $169.65 Select
EASY10494 G05X18-2-50-60A 5' long x 18" wide mat 375 watts, 240 volts 60 feet $184.95 Select
EASY10546 G05X18-2-50-70A 5' long x 18" wide mat 375 watts, 240 volts 70 feet $200.25 Select
EASY10181 G06X18-2-50-20A 6' long x 18" wide mat 450 watts, 240 volts 20 feet $128.68 Select
EASY10496 G06X18-2-50-30A 6' long x 18" wide mat 450 watts, 240 volts 30 feet $143.98 Select
EASY10497 G06X18-2-50-40A 6' long x 18" wide mat 450 watts, 240 volts 40 feet $159.28 Select
EASY10498 G06X18-2-50-50A 6' long x 18" wide mat 450 watts, 240 volts 50 feet $174.58 Select
EASY10495 G06X18-2-50-60A 6' long x 18" wide mat 450 watts, 240 volts 60 feet $189.88 Select
EASY10547 G06X18-2-50-70A 6' long x 18" wide mat 450 watts, 240 volts 70 feet $205.18 Select
EASY10106 G07X18-2-50-20A 7' long x 18" wide mat 525 watts, 240 volts 20 feet $136.91 Select
EASY10499 G07X18-2-50-30A 7' long x 18" wide mat 525 watts, 240 volts 30 feet $152.21 Select
EASY10500 G07X18-2-50-40A 7' long x 18" wide mat 525 watts, 240 volts 40 feet $167.51 Select
EASY10501 G07X18-2-50-50A 7' long x 18" wide mat 525 watts, 240 volts 50 feet $182.81 Select
EASY10502 G07X18-2-50-60A 7' long x 18" wide mat 525 watts, 240 volts 60 feet $198.11 Select
EASY10548 G07X18-2-50-70A 7' long x 18" wide mat 525 watts, 240 volts 70 feet $213.41 Select
EASY10223 G08X18-2-50-20A 8' long x 18" wide mat 600 watts, 240 volts 20 feet $141.84 Select
EASY10503 G08X18-2-50-30A 8' long x 18" wide mat 600 watts, 240 volts 30 feet $157.14 Select
EASY10504 G08X18-2-50-40A 8' long x 18" wide mat 600 watts, 240 volts 40 feet $172.44 Select
EASY10505 G08X18-2-50-50A 8' long x 18" wide mat 600 watts, 240 volts 50 feet $187.74 Select
EASY10506 G08X18-2-50-60A 8' long x 18" wide mat 600 watts, 240 volts 60 feet $203.04 Select
EASY10549 G08X18-2-50-70A 8' long x 18" wide mat 600 watts, 240 volts 70 feet $218.34 Select
EASY10103 G09X18-2-50-20A 9' long x 18" wide mat 675 watts, 240 volts 20 feet $151.77 Select
EASY10507 G09X18-2-50-30A 9' long x 18" wide mat 675 watts, 240 volts 30 feet $167.07 Select
EASY10508 G09X18-2-50-40A 9' long x 18" wide mat 675 watts, 240 volts 40 feet $182.37 Select
EASY10509 G09X18-2-50-50A 9' long x 18" wide mat 675 watts, 240 volts 50 feet $197.67 Select
EASY10510 G09X18-2-50-60A 9' long x 18" wide mat 675 watts, 240 volts 60 feet $212.97 Select
EASY10550 G09X18-2-50-70A 9' long x 18" wide mat 675 watts, 240 volts 70 feet $228.27 Select
EASY10077 G10X18-2-50-20A 10' long x 18" wide mat 750 watts, 240 volts 20 feet $155.92 Select
EASY10511 G10X18-2-50-30A 10' long x 18" wide mat 750 watts, 240 volts 30 feet $171.22 Select
EASY10512 G10X18-2-50-40A 10' long x 18" wide mat 750 watts, 240 volts 40 feet $186.52 Select
EASY10513 G10X18-2-50-50A 10' long x 18" wide mat 750 watts, 240 volts 50 feet $201.82 Select
EASY10514 G10X18-2-50-60A 10' long x 18" wide mat 750 watts, 240 volts 60 feet $217.12 Select
EASY10113 G15X18-2-50-20A 15' long x 18" wide mat 1125 watts, 240 volts 20 feet $210.33 Select
EASY10515 G15X18-2-50-30A 15' long x 18" wide mat 1125 watts, 240 volts 30 feet $225.63 Select
EASY10516 G15X18-2-50-40A 15' long x 18" wide mat 1125 watts, 240 volts 40 feet $240.93 Select
EASY10517 G15X18-2-50-50A 15' long x 18" wide mat 1125 watts, 240 volts 50 feet $256.23 Select
EASY10518 G15X18-2-50-60A 15' long x 18" wide mat 1125 watts, 240 volts 60 feet $271.53 Select
EASY10061 G20X18-2-50-20A 20' long x 18" wide mat 1500 watts, 240 volts 20 feet $249.04 Select
EASY10519 G20X18-2-50-30A 20' long x 18" wide mat 1500 watts, 240 volts 30 feet $264.34 Select
EASY10520 G20X18-2-50-40A 20' long x 18" wide mat 1500 watts, 240 volts 40 feet $279.64 Select
EASY10521 G20X18-2-50-50A 20' long x 18" wide mat 1500 watts, 240 volts 50 feet $294.94 Select
EASY10522 G20X18-2-50-60A 20' long x 18" wide mat 1500 watts, 240 volts 60 feet $310.24 Select
EASY10060 G30X18-2-50-20B 30' long x 18" wide mat 2250 watts, 240 volts 20 feet $312.61 Select
EASY10523 G30X18-2-50-30B 30' long x 18" wide mat 2250 watts, 240 volts 30 feet $336.37 Select
EASY10524 G30X18-2-50-40B 30' long x 18" wide mat 2250 watts, 240 volts 40 feet $360.13 Select
EASY10525 G30X18-2-50-50B 30' long x 18" wide mat 2250 watts, 240 volts 50 feet $383.89 Select
EASY10526 G30X18-2-50-60B 30' long x 18" wide mat 2250 watts, 240 volts 60 feet $407.65 Select
36" wide mats:
EASY10083 G04X36-2-50-20A 4' long x 36" wide mat 600 watts, 240 volts 20 feet $149.57 Select
EASY10527 G04X36-2-50-30A 4' long x 36" wide mat 600 watts, 240 volts 30 feet $164.87 Select
EASY10528 G04X36-2-50-40A 4' long x 36" wide mat 600 watts, 240 volts 40 feet $180.17 Select
EASY10529 G04X36-2-50-50A 4' long x 36" wide mat 600 watts, 240 volts 50 feet $195.47 Select
EASY10530 G04X36-2-50-60A 4' long x 36" wide mat 600 watts, 240 volts 60 feet $210.77 Select
EASY10107 G05X36-2-50-20A 5' long x 36" wide mat 750 watts, 240 volts 20 feet $157.09 Select
EASY10531 G05X36-2-50-30A 5' long x 36" wide mat 750 watts, 240 volts 30 feet $172.39 Select
EASY10532 G05X36-2-50-40A 5' long x 36" wide mat 750 watts, 240 volts 40 feet $187.69 Select
EASY10533 G05X36-2-50-50A 5' long x 36" wide mat 750 watts, 240 volts 50 feet $202.99 Select
EASY10481 G05X36-2-50-60A 5' long x 36" wide mat 750 watts, 240 volts 60 feet $218.29 Select
EASY10097 G10X36-2-50-20A 10' long x 36" wide mat 1500 watts, 240 volts 20 feet $250.91 Select
EASY10118 G10X36-2-50-30A 10' long x 36" wide mat 1500 watts, 240 volts 30 feet $266.21 Select
EASY10534 G10X36-2-50-40A 10' long x 36" wide mat 1500 watts, 240 volts 40 feet $281.51 Select
EASY10535 G10X36-2-50-50A 10' long x 36" wide mat 1500 watts, 240 volts 50 feet $296.81 Select
EASY10536 G10X36-2-50-60A 10' long x 36" wide mat 1500 watts, 240 volts 60 feet $312.11 Select
EASY10045 G15X36-2-50-20B 15' long x 36" wide mat 2250 watts, 240 volts 20 feet $314.96 Select
EASY10231 G15X36-2-50-30B 15' long x 36" wide mat 2250 watts, 240 volts 30 feet $338.72 Select
EASY10537 G15X36-2-50-40B 15' long x 36" wide mat 2250 watts, 240 volts 40 feet $362.48 Select
EASY10538 G15X36-2-50-50B 15' long x 36" wide mat 2250 watts, 240 volts 50 feet $386.24 Select
EASY10539 G15X36-2-50-60B 15' long x 36" wide mat 2250 watts, 240 volts 60 feet $410.00 Select
EASY10084 G20X36-2-50-20B 20' long x 36" wide mat 3000 watts, 240 volts 20 feet $373.97 Select
EASY10540 G20X36-2-50-30B 20' long x 36" wide mat 3000 watts, 240 volts 30 feet $397.73 Select
EASY10541 G20X36-2-50-40B 20' long x 36" wide mat 3000 watts, 240 volts 40 feet $421.49 Select
EASY10542 G20X36-2-50-50B 20' long x 36" wide mat 3000 watts, 240 volts 50 feet $445.25 Select
EASY10543 G20X36-2-50-60B 20' long x 36" wide mat 3000 watts, 240 volts 60 feet $469.01 Select
EASY10069 G30X36-2-50-20B 30' long x 36" wide mat 4500 watts, 240 volts 20 feet $538.43 Select
EASY10544 G30X36-2-50-30B 30' long x 36" wide mat 4500 watts, 240 volts 30 feet $562.19 Select
EASY10440 G30X36-2-50-40B 30' long x 36" wide mat 4500 watts, 240 volts 40 feet $585.95 Select
EASY10545 G30X36-2-50-50B 30' long x 36" wide mat 4500 watts, 240 volts 50 feet $609.71 Select
EASY10326 G30X36-2-50-60B 30' long x 36" wide mat 4500 watts, 240 volts 60 feet $633.47 Select
Step Mats (Mats for stair applications)
EASY10062 2M-2-3-0X8 2 step, 3' x 8" tread 200 watts, 240 volts 10 feet $144.34 Select
EASY10184 2M-2-6-0X8 2 step, 6' x 8" tread 400 watts, 240 volts 10 feet $180.81 Select
EASY10410 2M-8-3-0X8 2 step, 3' x 8" tread 200 watts, 208 volts 10 feet $144.34 Select
EASY10413 2M-8-6-0X8 2 step, 6' x 8" tread 400 watts, 208 volts 10 feet $180.81 Select
EASY10139 3M-2-3-0X8 3 step, 3' x 8" tread 300 watts, 240 volts 10 feet $172.42 Select
EASY10273 3M-2-6-0X8 3 step, 6' x 8" tread 600 watts, 240 volts 10 feet $269.11 Select
EASY10416 3M-8-3-0X8 3 step, 3' x 8" tread 300 watts, 208 volts 10 feet $172.42 Select
EASY10419 3M-8-6-0X8 3 step, 6' x 8" tread 600 watts, 208 volts 10 feet $269.11 Select
Accessories:
ETI10006 LCD-7UL ETI Snow Switch® (Automatic Control For Snow Melting) $175.00

Select
ETI15898 LCD-1

ETI Snow Switch® UL (Automatic Control For Snow Melting)

 $208.00

Select
ETI17542 RCU-1

Optional Remote Control, use with APS series controls

 $183.00

Select
ETI18708 APS-4-208/240 APS–4 Control Panel, 208 VAC, Three Phase (208/240 VAC Single Phase) $1,116.00 Select
ETI20931 HSC–4 Pavement-Mounted Deicing Controller $976.00 Select
ETI20756 SIT–6E Pavement-Mounted Sensor $976.00

Select
ETI17539 APS-3B-208/240 Control Panel, 208-240 VAC (UL Listed) $1,024.00 Select
CHROM329762 4003-40610 Chromalox 4003 DIN-Rail Mount Power Controller (A replacement for Mercury Relays). 40AMP 3PH 600V, 100 to 240Vac Input $265.00 Select
CHROM329789 4003-60610 Chromalox 4003 DIN-Rail Mount Power Controller (A replacement for Mercury Relays). 60AMP 3PH 600V, 100 to 240Vac Input $330.00 Select
CRYDOM10001 3RHP6050E Crydom RHP Series Hybrid Solid State Contactor, 20-26 VAC Control, Contactor 50 Amp 600 VAC $147.78 Select
CRYDOM10002 3RHP6050F Crydom RHP Series Hybrid Solid State Contactor, 100-130 VAC Control, Contactor 50 Amp 600 VAC $147.78 Select
