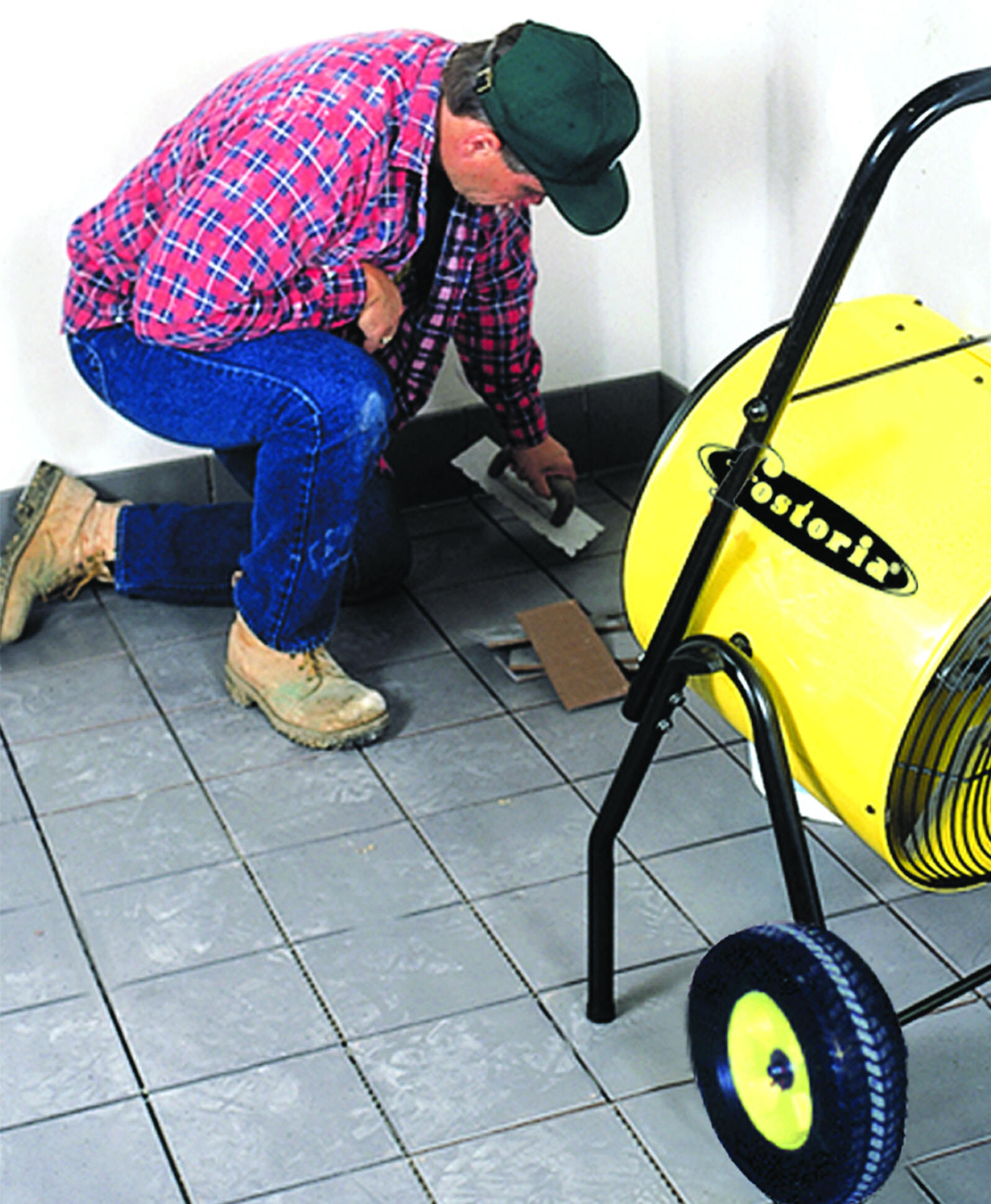

Fostoria Portable and Wall/Ceiling Mount Electric Salamander Heat Wave Space Heater


Click here for a larger image

Model #: FES-1024-1CA includes 10 foot, 50 Amp, 250V rated Cordset.

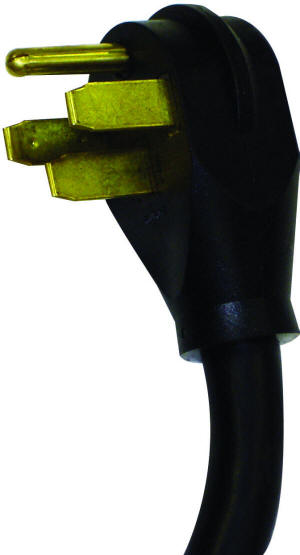

FACTORY PRE-WIRED MODEL WITH STRAIGHT BLADE RANGE PLUG FOR USE WITH A STANDARD RANGE OUTLET.
Cable Kits are available for other models.



We are an authorized distributor for Fostoria Industries, a manufacturer of infrared heating systems.

This electric indoor heater eliminates the hassles of fuel-fired heaters (Salamanders). It requires no fuel. Produces no flames. Needs no late night monitoring, and does not require regular maintenance.  If your indoor temperature is 10°F....you could use a 15KW, 240V model to heat up to 12,800 cubic feet of insulated new construction. Normally, this would produce a 60°F temperature rise in about 2 hours. Once the desired temperature is reached, the thermostat will cycle the heater on and off to hold the desired comfort level. To achieve this, the 800 CFM fan recirculates and warms the air more and more each time it's drawn through the heater.  For best results, use in an enclosed air space with a ceiling height of less than 15 feet.




Click here for a larger image

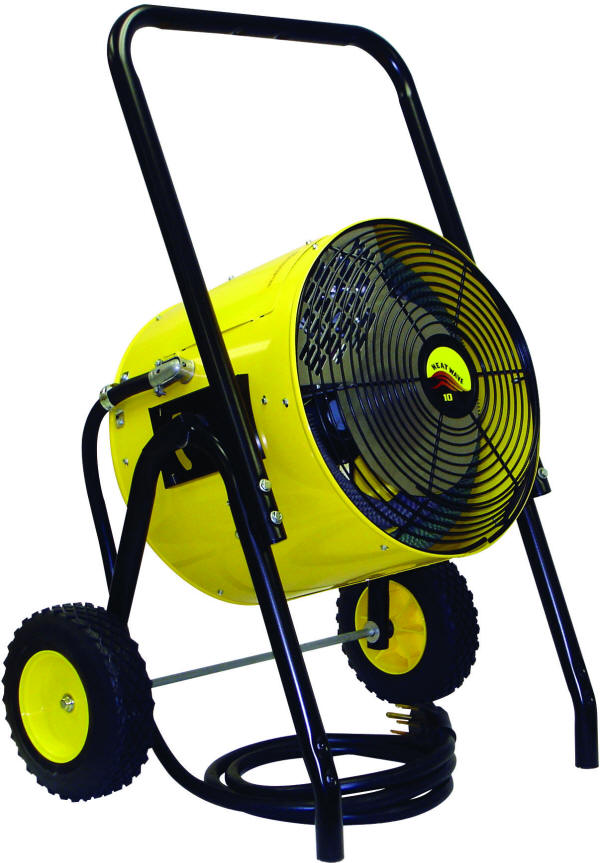

FES-10




Click here for a larger image

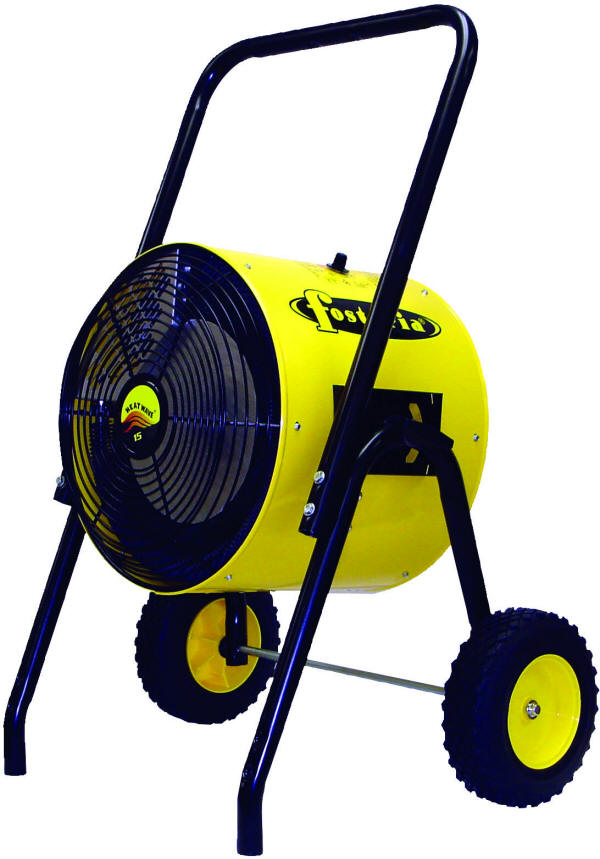

FES-15



Click here for a larger image

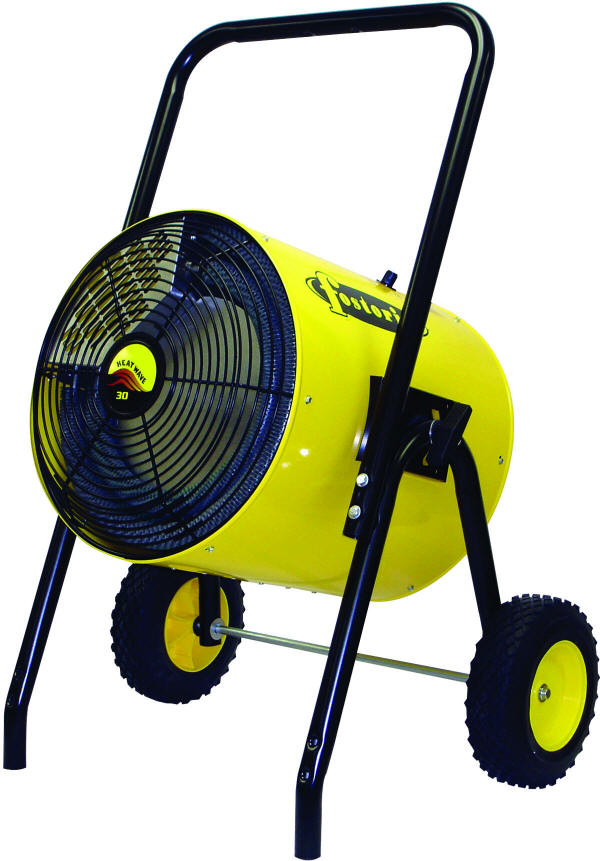

FES-30



Click here for a larger image

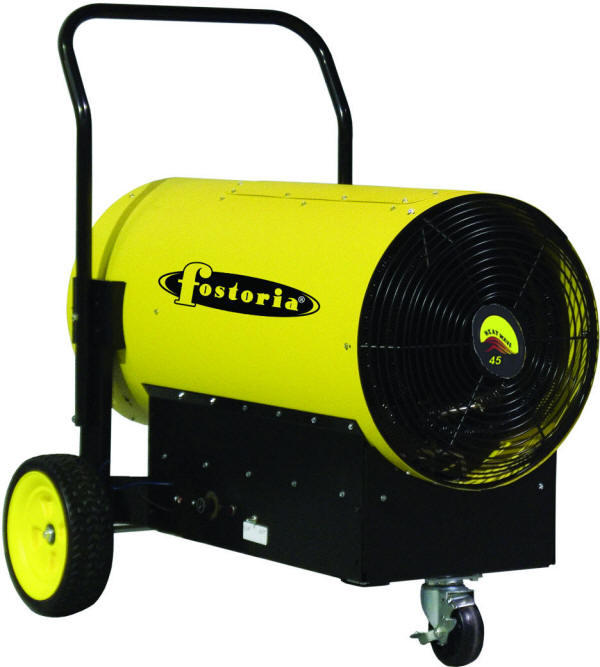

FES-45



Click here for a larger image

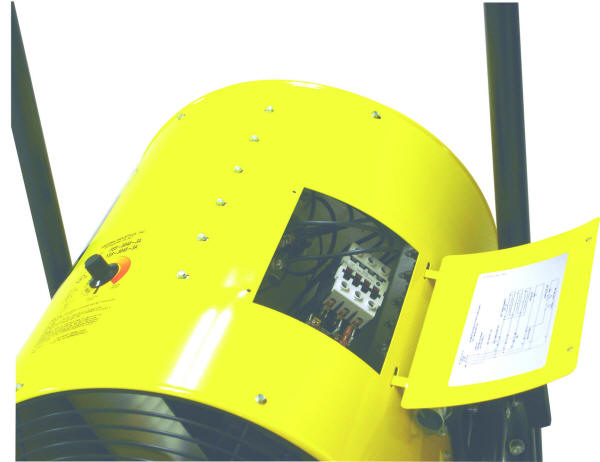

Access Panel



Click here for a larger image


Installation and Operation Instructions and Parts Manual

You must have the free Adobe Acrobat Reader plug-in.

Wall / Ceiling Mount Salamander Heat Wave Space Heater


Ceiling Mount


Wall Mount

Secure Online Ordering
Delivery time: Typically direct ships from Fostoria in 1-2 workdays or less.  The transit time to you depends on your physical location and your selected UPS/FedEx shipping method, the cost of which will be displayed in your shopping cart.

Item ID

Catalog #

KW

BTU

Volts

Phase Cordset

Amps

Click "Select" below to see our price and actual real-time quantity in stock
FOST886000

FES-1024-1CA

10

34,130

240

1

Included

42.0

Select
FOST886017

FES-1520-3A

15

51,195

208

3

316408

42.0

Select
FOST886079 FES-1524-1A

15

51,195

240 1 880534

63.0

Select
FOST886024

FES-1524-3E

15

51,195

240

3

316408

36.0

Select
FOST886031

FES-1548-3E

15

51,195

480

3

316422

18.0

Select
FOST886055 FES-3048-3A

30

102,390

480  3 316408 36.0 Select
FOST872225 FES-4548-3 45 153,585 480  3 316408 54.2 Select
CABLE KITS
Optional cable packages for FES heaters above.  With either 3-conductors or 4-conductors, depending on the fixture requirements. Each cable has 6" of outer jacket removed at one end, and the leads terminated with #10 ring terminals. Each also includes the proper cord grip (connector). Plug is not included.
Item ID

Catalog #

Description


FOST316408 316408

6/4 SO 25 feet Type SO cable

Select
FOST880534 880534

4/3 SO 25 feet Type SO cable

Select
FOST316422 316422

12/4 SO 25 feet Type SO cable

Select
Replacement Parts:
MARKEL2470300 2470300

Thermostat (Replacement Part - Does not include knob)

Select
Wall / Ceiling Mount:
Item ID

Catalog #

KW

BTU

Volts

Phase Amps Temp. Rise
FOST886086 YES-1520-3A 15 51,195 208 3 42 45°F Select
FOST886185 YES-1524-1A 15 51,195 240 1 63 45°F Select
FOST886093 YES-1524-3E 15 51,195 240 3 36 45°F Select
FOST886109 YES-1548-3E 15 51,195 480 3 18 45°F Select
FOST886123 YES-3048-3A 30 102,390 480 3 36 90°F Select
