EASYHEAT WarmTiles Mats
Floor Warming System
Links to other products:
EASYHEAT WarmTiles Floor Warming
Cable System
You'll appreciate every step you take on your new
floor if the first step is the
EASYHEAT Warm Tiles floor warming mat system. After choosing the flooring materialsuch as marble, ceramic and
porcelain tile, slate, granite and poured or dimensional stoneconsider
installing this over Warm Tiles for a comfortable and modern floor. Warm Tiles
has been tested according to ASTM C627, your assurance that Warm Tiles is
compatible with modern tile materials and tile installation methods.

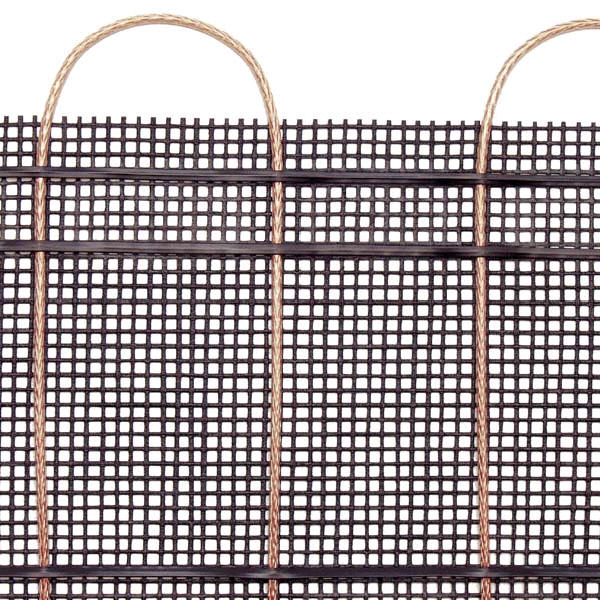

Suitable for new construction or remodeling, the Warm Tiles mat system
radiates gentle warmth through a network of low profile cables prefabricated
into mats. The mats are placed in the mortar below the
tiles, simplifying tile installation. Warm Tiles may be installed directly over
plywood, concrete or backerboard sub-floors. Consult installation instructions
for details on these and other installation methods.
Warm Tiles Mat systems are ideally suited for concrete slab or multi-unit
applicationswherever you want tile floors. Operating on regular household
voltage, Warm Tiles comfort costs about one cent per square foot per day when mats
are installed together with one of the specially designed Warm Tiles
thermostats.
- Ideal for slabs or multi-unit
applications.
- Installed
on subfloor or slab, in thin-set material.
Supplied with 10 foot cold leads.
- Factory-stocked in 120 and 240 VAC.
- Maximum 16 amp load per thermostat.
- Custom lengths and voltages
are also available (contact
us for layout assistance and availability.)
-
 UL Listed
CSA Certified
|
FTS Thermostat:
 |
-
Preprogrammed for easy set up
-
Manual operation or 7-day/5-2 programming options
-
Built-in ground fault protection
-
Optional decorator door
-
Installation tools included
-
UL Listed
-
FTS thermostats fit standard
electrical boxes.
|
|
Get the best results from your electric floor warming system with Easy Heats Warm Tilesฎ FTS thermostats.
Attractive and suitable for any d้cor, they provide comfort, control and years of trouble free service.
Listed by Underwriters Laboratories Inc. to US and Canadian safety standards, these specially engineered controls are available in 120 VAC (FTS-1) or 240 VAC (FTS-2), designed with a Warm Tiles system in mind.
Embedded in the mortar just below your tiles, the floor sensor monitors actual floor temperature for accurate comfort control. Each model features
comfort-level programming options as well as a simple
OFF-position selector switch. While the thermostat can
operate in a traditional fashion, you may choose the
pre-programmed set-back mode to reduce energy usage
and costs by as much as 50%. Built-in ground fault
protection helps confirm the safe operation of your
floor warming system. All Warm Tiles thermostat
kits come complete with the thermostat and its sensor,
instructions and hardware. Decorative recessed wall
thermostat , digital, fully programmable, c/w ground fault protection (7
milliamp protection), includes thermistor sensor, 120 or 240 volt, rated for 16
amps (requires customer supplied deep single gang electrical box) |
 |
Also included is a choice of attractive doors:
with display window or without.
|
ET Thermostat:
(Non-Programmable version of
the FTS thermostat)
Decorative recessed wall thermostat , digital, Non-programmable,
c/w ground fault protection (7 milliamp protection), includes thermistor sensor,
120 or 240 volt, rated for 16 amps (requires
customer supplied deep single gang electrical box)
| SAM
1010 |
20 x 6.67, 120 VAC |
| SAM 1013 |
20 x 8.67, 120 VAC |
| SAM 1017 |
20 x 11.33, 120 VAC |
| SAM 1020 |
20 x 13.33, 120 VAC |
| SAM 1025 |
20 x 16.67, 120 VAC |
| SAM 1033 |
20 x 22, 120 VAC |
| SAM 1042 |
20 x 28, 120 VAC |
| SAM 1050 |
20 x 33.33, 120 VAC |
| SAM 1062 |
20 x 41.33, 120 VAC |
| SAM 1075 |
20 x 50, 120 VAC |
| SAM 1087 |
20 x 58, 120 VAC |
| SAM 1100 |
20 x 66.67, 120 VAC |
| SAM 2010 |
20 x 6.67, 240 VAC |
| SAM 2013 |
20 x 8.67, 240 VAC |
| SAM 2017 |
20 x 11.33, 240 VAC |
| SAM 2020 |
20 x 13.33, 240 VAC |
| SAM 2025 |
20 x 16.67, 240 VAC |
| SAM 2033 |
20 x 22, 240 VAC |
| SAM 2042 |
20 x 28, 240 VAC |
| SAM 2050 |
20 x 33.33, 240 VAC |
| SAM 2062 |
20 x 41.33, 240 VAC |
| SAM 2075 |
20 x 50, 240 VAC |
| SAM 2087 |
20 x 58, 240 VAC |
| SAM 2100 |
20 x 66.67, 240 VAC |
EasyHeat and WarmTiles are
registered trademarks of EasyHeat, Inc.
|
