White Rodgers 24A06G-1 Dual Level-Temp Low Voltage Control System for Electric Heat

White-Rodgers 1F80-241 Low Voltage Set-Back Programmable Thermostat
Other Thermostats

Order Online Secure Online Ordering

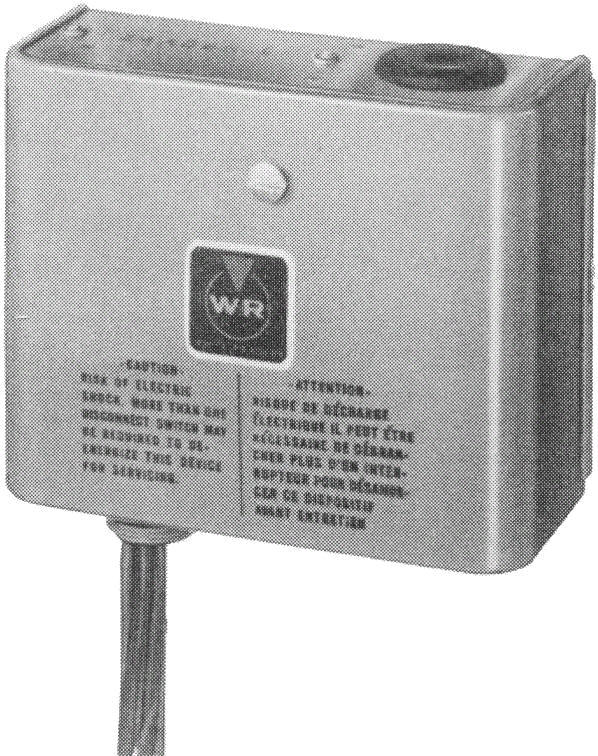

WHITE-RODGERS®*


PROVIDES SILENT OPERATION AND NARROW DIFFERENTIAL CONTROL FOR HEATING OR COOLING INSTALLATIONS FOR USE WITH A 2-WIRE 24 VOLT THERMOSTAT.

FEATURES
  • Level-Temp allows low voltage 2-wire thermostat to control line voltage loads such as baseboard heaters.
  • Conduit hub or screw mounting.
  • Ideal for all types of electrical heat.
  • Non-critical mounting angle. Universal break-off mounting tabs.
  • Dual Level-Temp capable of controlling two separate loads.

  • UL listed. Design complies with U.L. 873 T.I.R.E. (Temperature Indicating and Regulating Equipment) standard.

SPECIFICATIONS

  • Switch action: two independent — SPST normally open
  • Average time delay — 45 seconds
  • Lead length —18 inches
  • Ambient range from -20 to +120°F.

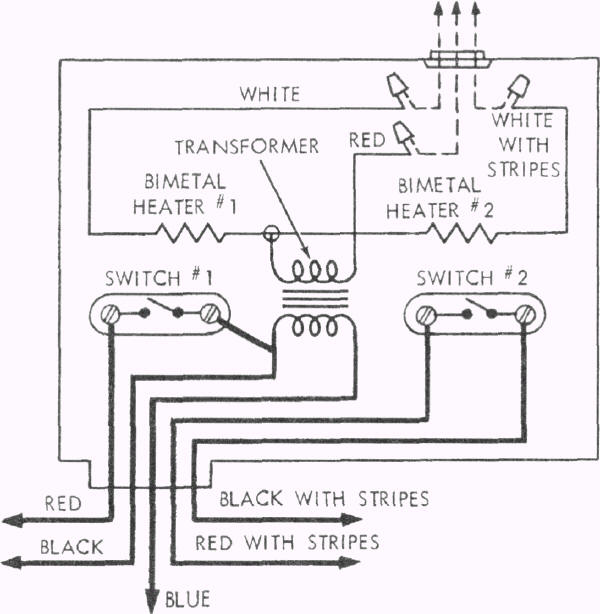

DUAL LEVEL TEMPS (Controls Two Independent Loads) — Normally Open
Input Voltage/Frequency Thermostat Current A.C. Resistive* (Non-inductive) A.C. Motor Rating (Inductive)
Full Load Locked Rotor
240 VAC 60Hz 0.2A per Switch 25A, 6000W, 240V 12A,240v 72A, 240v

*Electrical ratings apply to each switch load.

NOTE: Delay approximately 30 seconds opening and 60 seconds closing.

PHYSICAL DIMENSIONS
Overall Length Case Width Height
4-13/16" 2-1/8" 3-13/16"

Secure Online Ordering
Delivery time: typically ships in 1 working day or less plus the time of your selected UPS shipping method.  Your shipping cost will be displayed in your shopping cart.
Item ID Catalog # Description Price Click "Select" below to see the actual quantity in stock
WR10009 24A06G-1 Dual Level-Temp Low Voltage Control System. $107.35 Select

*White-Rodgers and the WR logo are trademarks of White-Rodgers, Inc.
