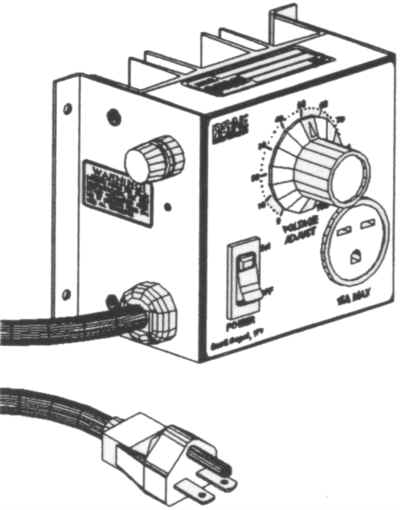

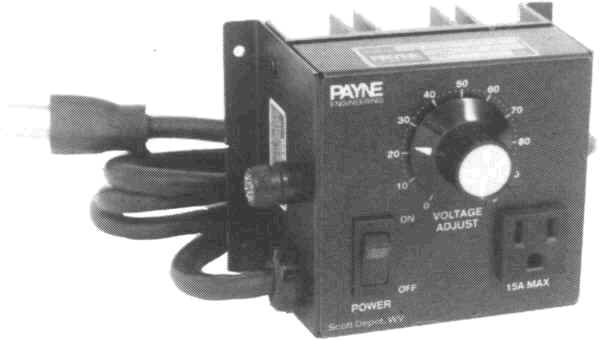

Payne Engineering Model 18TP Portable Variable Voltage Solid State Power Control with Plug and Cord Set

Secure Online Ordering

Payne Engineering Company
Scott Depot, WV
Tel: (304)757-7353, Fax: (304)757-7305
e-mail: info@PaynEng.com
www.PaynEng.com

We are an authorized distributor for Payne Engineering.

Model 18TP-1-15 (120 Volt)

Model 18TP-2-15 (240 volt)

Applications:

Electric heating elements (small constant resistance loads)
Replace variable transformers
Band and nozzle heaters
Platen heating
Cartridge heaters
Hot runners

Features:

All solid state construction
Lighted on/off rocker power switch
270° turn potentiometer variable control of RMS output voltage
6 foot 120 volt grounded power cord and 3-prong plug (NEMA-standard)
On-board "2 millisecond" fuse self- protection
Lightweight, portable design
Open chassis dimension: height 4", width 5.12", depth 2.74"
Output voltage: 0-95% of input

120 or 240 volt a.c. portable or chassis mounted variable voltage power control. Phase angle control, using power TRIACs. Solid state replacement for variable transformers for process temperature control applications. Power semiconductors replace windings and brushes to control voltage output. Unit chassis is designed for portable use or 2-hole fixed mounting. Fuse protects semi conductor from short circuit damage; an r-c snubber network provides RC/V_bo protection; and the integral, isolated heatsink chassis allows continues operation in ambient temperature up to 50°C (122°F)

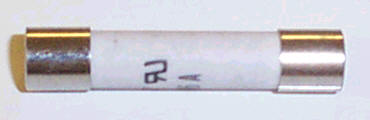

Replacement Fuse For 18TP-1-15 control (Part# 49C25-15)

Also available:
5 and 10 amp 120 volt models
(Part #'s 18TP-1-5 and 18TP-1-10)
5 and 10 amp 240 volt models
(Part #'s 18TP-2-5, 18TP-2-10)

Secure Online Ordering
Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method. Your shipping cost will be displayed in your shopping cart.

Item ID Catalog # Description
Click "Select" below to see our price and actual real-time quantity in stock

PAYNE10003 18TP-1-15 120 VAC, 15 amp fuse, 6 foot plug & cordset. Portable solid state Variable Temperature power controller. Single-phase, 50/60 Hz input. 1800 watts @ 120 volts (maximum rated voltage)

PAYNE10006 49C25-15 Replacement Fuse For 18TP-1-15 control (Can be added to your order after selecting the control above)

PAYNE10005 18TP-2-15 240 VAC Variable Voltage Control. Portable solid state power control. 15 amp fuse, 6 foot plug & cordset. Single-phase. 3600 watts @ 240 volts (maximum rated voltage)
