Qmark Type CRA Wall Heaters (Residential Fan Forced Zonal Heaters)

Qmark Electric Heating Products
We are an authorized distributor for Qmark, a division of Marley Engineered Products.

Links to other types of Wall Heaters:
Qmark Commercial Fan Forced Wall Heaters (Type CWH1000)
Qmark Commercial Fan Forced Wall Heaters (Type CWH3000)
Qmark Architectural Heavy Duty Fan Forced Wall Heaters (Type AWH)
Qmark Commercial Fan Forced Wall Heaters (Type EFQ)

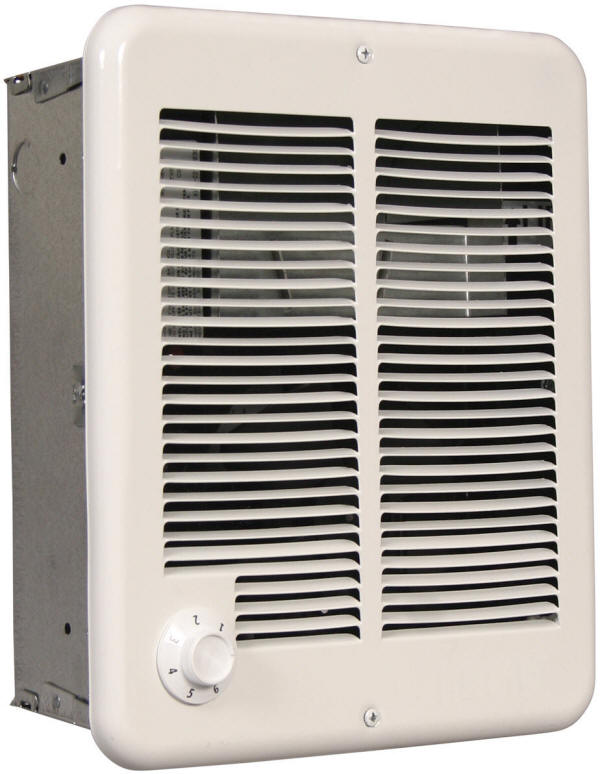

Complete unit: Back box, heater assembly, grille, and factory installed DP thermostat (Range 40 - 85F). Optional Surface Mounting Frame is also available.

  • Suitable for use in almost any room.

  • Fast-response coil element assures quick heat and low maintenance.

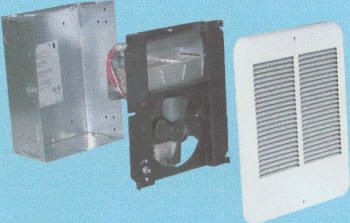

  • Three piece construction offers ease of installation

  • Attractive European styled grille with rounded corners complements any room decor.

  • Dual protection: Thermal cutout with indicator light and one time thermal fuse.

  • Sienna White baked enamel finish.

  • 500 - 1000 Watt units are approved for ceiling mounting.

  • Wattage levels should be determined by heat loss calculations.

  • Patented Clip-n-Fit Feature

  • Grill: 12-1/4"H x 10-1/2"W x 3/4"D

  • Backbox: 11-1/8"H x 9-3/8"W x 3-3/4"D

  • Use single heaters in smaller rooms such as bedrooms and bathrooms.

  • Use multiple heaters (controlled by a single thermostat) in larger rooms such as living rooms and family rooms.

Mounting Limitations
Do not install back box closer than 4.5 inches from floor, adjacent walls and 12 inches from ceiling. Units 1000W or less can be ceiling mounted. Do not install heater behind towel rack, behind door, in floor, in closet, or where airflow may be obstructed. To insure proper operation, maintain 5 feet minimum clearance to furniture or other objects placed directly in front of the heater. Note: For installations over 7,500 feet above sea level Qmark recommends using models under 1500 watts.

Selecting Heaters:

Use the calculator below for selecting the quantity and wattage of wall heaters you will need in a given area, when using the heaters as a primary heat source (no other heaters present.) Supplementing existing heaters such as a forced air furnace system requires less wattage. A general rule of thumb for primary heating is to use 10 Watts / Square Foot of heat. Example: a 10'x10' room is 100 square feet: (100 x 10 W/Ft2 = 1000 Watts.)

Result:

Keep in mind that this is for an insulated building or room insulated to "electric heating" standards and is an estimation based on average conditions.

acrobat reader Replacement Parts

You must have the free Adobe Acrobat Reader plug-in. acrobat reader

Secure Online Ordering
*Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method.  Items not currently in stock will show "call for availability" when added to your shopping cart, and will ship in 7-10 workdays.  Your shipping cost will be displayed in your shopping cart.

Item ID Catalog# Volts Watts Amps BTU/HR. Click "Select" below to see our price and actual real-time quantity in stock
Complete units with built-in double pole thermostat, back box, grill and heater assembly:
QMARK685360017396 CRA1512-T2 120

1500/1125/750/375

12.5/9.4/6.3/3.1 5118/3838/2560/1280 Select
QMARK685360017433 CRA2024-T2 240
208

2000/1500/1000/500
1500/1125/750/375

8.3/6.3/4.2/2.1
12.5/9.4/6.3/3.1
6824/5118/3412/1706
5118/3838/2560/1280
Select
QMARK685360017495 CRA2224-T2 240
208

2250/1688/1125/863
1688/1266/844/422

9.4/7.0/4.7/2.4
8.1/6.1/4.1/2.0
7677/5760/3838/1920
5760/4320/2880/1440
Select

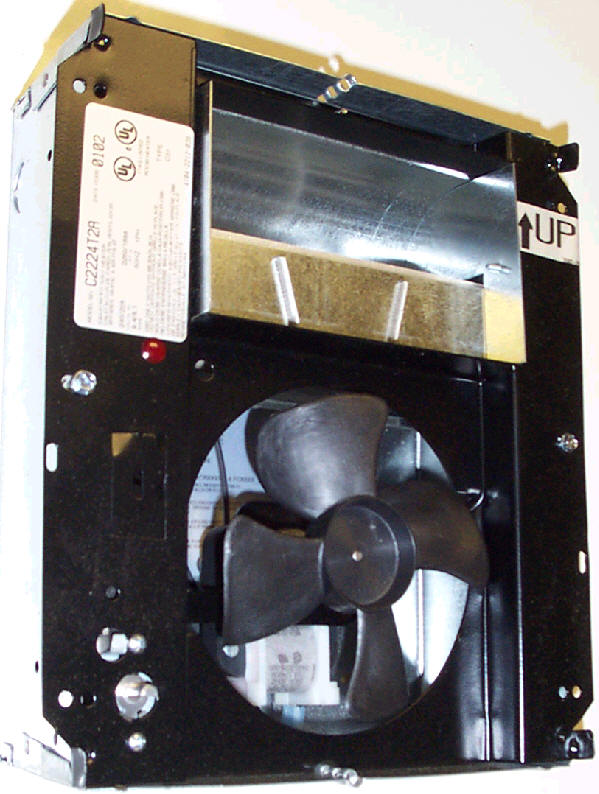

Inner frame units with grill and heater assembly only, order back box separately:
QMARK685360017389 CRA1512-IF 120

1500/1125/750/375

12.5/9.4/6.3/3.1 5118/3838/2560/1280 Select
QMARK685360017440 CRA2028-IF 208 2000/1500/1000/500 9.6/7.2/4.8/2.4 6824/5118/3412/1706 Select
QMARK685360017426 CRA2024-IF 240
208

2000/1500/1000/500
1500/1125/750/375

8.3/6.3/4.2/2.1
12.5/9.4/6.3/3.1
6824/5118/3412/1706
5118/3838/2560/1280
Select
QMARK685360017488 CRA2224-IF 240
208

2250/1688/1125/863
1688/1266/844/422

9.4/7.0/4.7/2.4
8.1/6.1/4.1/2.0
7677/5760/3838/1920
5760/4320/2880/1440
Select
Accessories:
QMARK685360017235 CRASM Optional Surface Mounting Frame Select
QMARK685360017198 CRABB Back Box Only (Used with *-IF suffix models) Select
QMARK685360017204 CRABB6 Back Multi pack 6 pieces (Used with *-IF suffix models) Select
QMARK685360017266 CRATDP Double Pole Thermostat Kit (Range: 40 - 85) Select
QMARK685360113074 CRA2AFAKIT Retro Kit for A Series Back Box Select
Wall Mount Thermostats: (Optional)
AUBE10010 TH115-A-240D Aube Tech. Double Pole, 240V Programmable Line Voltage Thermostat, 3600W @ 240 V 15 A resistive 60 Hz 4 wires / D.P.S.T. Select
QMARK98319841025 TC1 Qmark Clear Plastic Universal Lockable Thermostat Guard. Dimensions: 7"L x 4.28"H x 2.74"D. Select

*This delivery time is for normal conditions and is subject to factory availability.

MEARS10014

M601W

White Mears Single Pole Thermostat, wall mount Select
MEARS10005

M601

Ivory Mears Single Pole Thermostat, wall mount Select
MEARS10009

M602W

White Mears Double Pole Thermostat, wall mount Select
MEARS10008

M602

Ivory Mears Double Pole Thermostat, wall mount Select




Qmark is a registered trademark and division of Marley Engineered Products.
