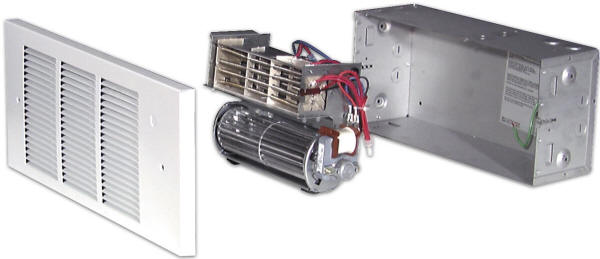

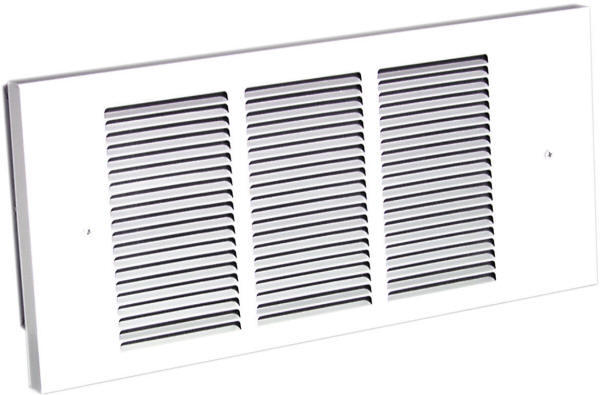

Qmark Wall Heaters - Type QFG

Qmark Electric Heating Products
We are an authorized distributor for Qmark

RESIDENTIAL: QFG Series electric in-wall heaters are suitable for use in almost any room. Use single heaters in smaller rooms such as bedrooms and bathrooms. Use multiple heaters (controlled by a single thermostat) in larger rooms such as living rooms and family rooms. Wattage should be determined through heat loss calculations.

COMMERCIAL: Suitable as the primary heat source in smaller rooms and as supplemental heat in almost any general use area.

MOUNTING LIMITATIONS

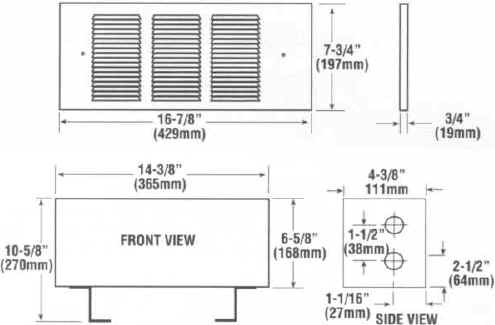

Dimensions

Note: Use of mounting feet is optional

acrobat reader Replacement Parts

You must have the free Adobe Acrobat Reader plug-in. acrobat reader

Secure Online Ordering
*Delivery time for the following products:  Typically in stock.  Shipped in 1 working day or less.  The transit time to you depends on your physical location and your selected UPS/FedEx shipping method, the cost of which will be displayed in your shopping cart.

Note: "IF" models include heater assembly and grille only.  Order back box separately. See Accessories
Note: "T2M" models are complete heater assemblies with grille, back box and thermostat.

Item ID Catalog # Volts Watts Back Box Built-in Thermostat Amps Click "Select" below to see our price and actual real-time quantity in stock
QMARK685360059372 QFG1512T2M 120 275/750/1125/1500 Yes Yes 3.1/6.3/9.4/12.5 Select
QMARK685360059419 QFG2024T2M 240 500/1000/1500/2000 Yes Yes 2.1/4.2/6.3/8.3 Select
QMARK685360059464 QFG2224T2M 240 563/1125/1688/2250 Yes Yes 2.3/4.7/7.0/9.4 Select
QMARK685360088099 QFG1512IFM 120 375/750/1125/l500 No No 3.1/6.3/9.4/12.5 Select
QMARK685360059471 QFG2228IF 208 2200 No No 10.6 Select
QMARK685360088105 QFG2024IFM 240 500/1000/1500/2000 No No 2.1/4.2/6.3/8.3 Select
QMARK685360088112 QFG2224IFM 240 563/1125/1688/2250 No No 4.7/7.0 Select
Optional Accessories:
QMARK685360033631 GFRBB Back Box Select
QMARK685360059266 GFRSM Surface Mounting Frame Select
QMARK685360033624 QFGTSP Acc Single pole Tstat Select
QMARK685360059259 QFGTDP Acc Double pole Tstat Select
Wall Mount Thermostats: (Optional)
AUBE10010 TH115-A-240D Aube Tech. Double Pole, 240V Programmable Line Voltage Thermostat. 3600W @ 240V 15 Amp resistive 60 Hz 4 wires / DPST. 7-day programming, pre-programmed, backlight. 4 wires / DPST Select
MEARS10014

M601W

White Mears Single Pole Thermostat, wall mount Select
MEARS10005

M601

Ivory Mears Single Pole Thermostat, wall mount Select
MEARS10009

M602W

White Mears Double Pole Thermostat, wall mount Select
MEARS10008

M602

Ivory Mears Double Pole Thermostat, wall mount Select
QMARK98319841025 TC1 Qmark Clear Plastic Universal Lockable Thermostat Guard. Dimensions: 7"L x 4.28"H x 2.74"D. Select
*This delivery time is for normal conditions and is subject to Qmark factory availability.

Note: For installations over 7500 feet above sea level we recommend using models under 1500 watts.
