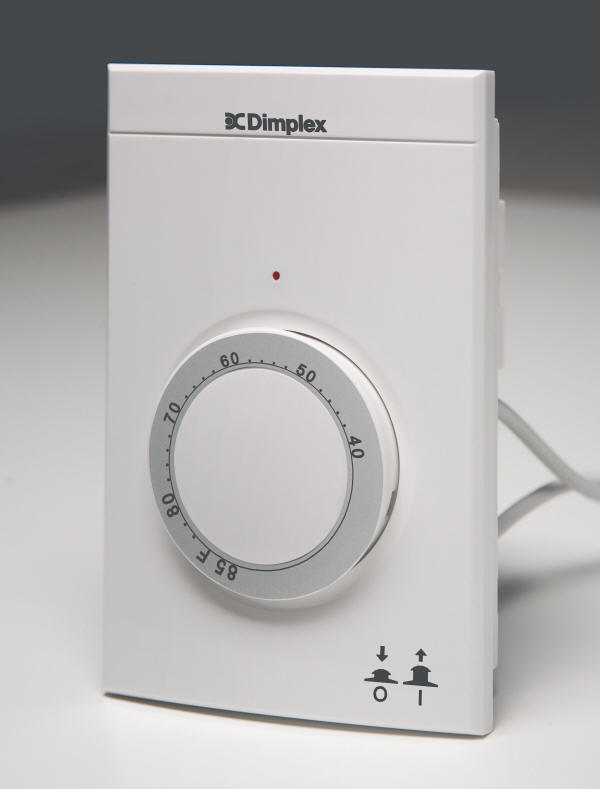

Electromode/Dimplex ETS/ETD Series Line Voltage Electronic Smart Wall Thermostat


Click here for a larger image



We are an authorized distributor for
Electromode (Dimplex North America Ltd.)


"Smart" Program Control

• Adapts to any installation of both convection and fan forced heaters.
• Smart Program
Technology learns and remembers characteristics of your room’s heat loss, and responds to provide optimum comfort.

Features

• Attractive styling suits all dιcors.
• Electronic sensing for accurate temperature control.
• Neutral white and almond finishes.
• Large, easy-to-read and use control dial.
• Includes Celsius and Fahrenheit temperature control dial inserts.
• Lead wires are enclosed into switch for safety – no exposed electrical contacts.
•
Manual off switch /electrical disconnect on double pole – pull dial ON and push OFF.

Technical Specifications

• Temperature range 5˚ to 30˚ C, 40˚ to 85˚ F.
• Also for non-electric heating applications: Inductive ratings up to 1/6 HP @ 120 volts, 1/3 HP @ 240 volts.
•
Cycle-to- cycle accuracy of 0.1˚ C / 0.2˚ F.

Designed to meet new CSA828 Efficiency Performance Standard

Operating Ranges
Catalog# Wattage/Amps Range @ 120 Volts Wattage Range/Amps @ 208 Volts Wattage Range/Amps @ 240 Volts Wattage Range/Amps @ 277 Volts
ETD620W2 600W-1920W/5A - 16.7A 1040W-3328W/5A - 16.7A 1200W-3840W/5A - 16.7A 1385W-4432W/5A - 16.0A
ETD620A2 600W-1920W/5A - 16.7A 1040W-3328W/5A - 16.7A 1200W-3840W/5A - 16.7A 1385W-4432W/5A - 16.0A
ETD620W1 150W-888W/1.25A - 7.4A 260W-1539W/1.25A - 7.4A 300W-1776W/1.25A - 7.4A 346W-2050W/1.25A - 7.4A
ETD620A1 150W-888W/1.25A - 7.4A 260W-1539W/1.25A - 7.4A 300W-1776W/1.25A - 7.4A 346W-2050W/1.25A - 7.4A
ETS610W2 600W-1920W/5A - 16.7A 1040W-3328W/5A - 16.7A 1200W-3840W/5A - 16.7A 1385W-4432W/5A - 16.0A
ETS610A2 600W-1920W/5A - 16.7A 1040W-3328W/5A - 16.7A 1200W-3840W/5A - 16.7A 1385W-4432W/5A - 16.0A
ETS610W1 150W-888W/1.25A - 7.4A 260W-1539W/1.25A - 7.4A 300W-1776W/1.25A - 7.4A 346W-2050W/1.25A - 7.4A
ETS610A1 150W-888W/1.25A - 7.4A 260W-1539W/1.25A - 7.4A 300W-1776W/1.25A - 7.4A 346W-2050W/1.25A - 7.4A

Secure Online Ordering
Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method.
  Your shipping cost will be displayed in your shopping cart.

Item ID Catalog# Pole Color Click "Select" below to see our price and actual real-time quantity in stock
DIMPLEX781052052901 ETD620W2 Double Pole White Select
DIMPLEX781052052925 ETD620A2 Double Pole Almond Select
DIMPLEX781052052895 ETD620W1 Double Pole White Select
DIMPLEX781052052918 ETD620A1 Double Pole Almond Select
DIMPLEX781052052864 ETS610W2 Single Pole White Select
DIMPLEX781052052888 ETS610A2 Single Pole Almond Select
DIMPLEX781052052857 ETS610W1 Single Pole White Select
DIMPLEX781052052871 ETS610A1 Single Pole Almond Select

Electromode and Dimplex are registered trademarks of Dimplex North America Ltd.
