Electromode CKHA Series Fan Forced Kickspace Heater


Click here for a larger image


Click here for a larger image


Other Kickspace (Toe Space) Heaters



We are an authorized distributor for
Electromode (Dimplex North America Ltd.)


Low profile fan forced heater that provides comfort for places where space is limited.

Features
Fits under a standard 24" kitchen cabinet
Black or White heater (heater is the same, only the grill is different between the two catalog #'s)
single model offers flexible wattage output with voltage selection
superior finned tubular element design
automatic reset thermal cutout
pilot light for hi-limit trip
Multi Watt/Volt Unit in one catalog #
Replacement grill available (Color can be changed or damaged/dirty grill can be replaced)

applications
kitchen or bathroom under-counter, flush mounting, stair riser

Specifications:
Colors: Black or White
Voltage: 120, 240/208 volts
Wattage: Five outputs ranging from 450 to 1800W

Air Flow: 80 cfm
Finish: Specially formulated polyester powder coating process is applied to the front panel which resists fading and abrasion.
Construction: The enclosure is constructed of 20 gauge steel. Horizontal mount only.
Heating Element: The Kick Space heater has four totally enclosed nickel chromium resistance elements with steel sheaths. The elements are complete with spiral steel fins that are brazed to the steel sheath to provide excellent heat transfer.
Controls & Wiring: The Kick Space heater is factory wired for 240/208V@900/675W and is field adjustable for 240/208V@1800/1300W, 120V@450, 900, 1350, or 1800W configuration. The unit is controllable from a line voltage wall thermostat or field installed built-in tamperproof single or double pole thermostat kit.
Warranty: One year warranty on complete unit.

U.L. approved

  CSA Certified

Secure Online Ordering
Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method.  Your shipping cost will be displayed in your shopping cart.

Item ID Catalog# Description Click "Select" below to see our price and actual real-time quantity in stock
DIMPLEX781052014077 CKHA20D31 Fan Forced Kick Space Heater - Black Select
DIMPLEX781052031838 CKHA20D31W Fan Forced Kick Space Heater - White Select

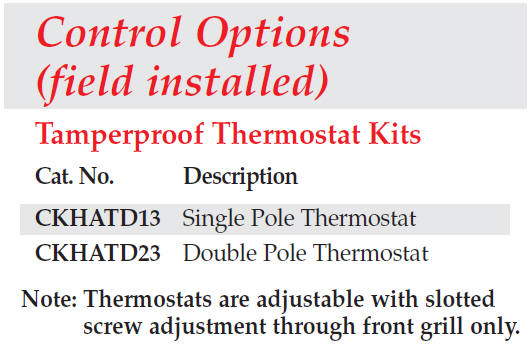

DIMPLEX781052014200 CKHATD13 Single pole thermostat kit - 17A, 120V Select
DIMPLEX781052013766 CKHATD23 Double pole thermostat kit - 17A, 208/240V Select
DIMPLEX781052034792 CKHAWG Replacement White Grill for either CKHA Heater Select
DIMPLEX781052034891 CKHABG Replacement Black Grill for either CKHA Heater Select
Wall Mount Line Voltage Thermostat: (Optional)
AUBE10005 TH104 SPST Digital Line Voltage Thermostat, 120/240V

Select

AUBE10056 TH114-A-120S Aube Tech. non-programmable 2000W @ 120V, 16.7 A resistive 60 Hz - backlight. 4 wires / SPST Select
AUBE10053 TH114-A-240D

Aube Tech. non-programmable 3600W @ 240V, 15.0 A resistive 60 Hz - backlight. 4 wires / DPST

Select
AUBE10022 TH115-A-120S Aube Tech. programmable 2000 W @ 120 V, 16.7 A - 7-day programming, pre-programmed, backlight. 4 wires / SPST Select
AUBE10010 TH115-A-240D Aube Tech. Double Pole, 240V Programmable Line Voltage Thermostat. 3600W @ 240V 15 Amp resistive 60 Hz 4 wires / DPST. 7-day programming, pre-programmed, backlight. 4 wires / DPST Select
HONEYWELL10010 TL6120A1016

Honeywell LineVoltPRO 6000 5-2 day programmable thermostat - Single Pole - 240 Vac - White - SPST - 12.5 Amps Max: 3000 Watts at 240 VAC - 40 F to 80 F - Stages: 1 Heat

Select
HONEYWELL10020 TL7235A1003

Honeywell LineVoltPRO 7000 Digital Non-Programmable White Thermostat. Double Pole, 15 Amps, 3600 Watts at 240 VAC, 3120 Watts at 208 VAC

Select
AUBE10090 TL8230A1003

Honeywell LineVoltPRO 8000 7-Day Programmable Electric Heat Thermostat. Double Pole, 3600 W @ 240 V, 15 A. 7-day programming, pre-programmed, backlight

Select
HONEYWELL10021 TL8130A1005

Honeywell LineVoltPRO 8000 Digital Programmable White Electric Heat Thermostat. Single Pole 16.7 Amps Max; 4000 Watts at 240 VAC, 3470 Watts at 208 VAC

Select
MEARS10014

M601W

White Mears Single Pole Thermostat, wall mount Select
MEARS10005

M601

Ivory Mears Single Pole Thermostat, wall mount Select
MEARS10009

M602W

White Mears Double Pole Thermostat, wall mount Select
MEARS10008

M602

Ivory Mears Double Pole Thermostat, wall mount Select

Electromode and Dimplex are registered trademarks of Dimplex North America Ltd.
