Chromalox® 1601 1/16 DIN Digital Temperature Control

1601.tif (291774 bytes)

Chromalox Electric Heaters and Controls
Mor Electric Heating is an authorized distributor for Chromalox®

UL Listed

• 3-Digit Display

• SMART Self-Tuning with Fuzzy Logic

• Heat or Cool Control

• NEMA 4X Faceplate

• Soft Start Power Limiting on Power-Up

• Universal Inputs TC, RTD

• Switching Power Supply from 100-240 Vac, 50/60 Hz

Description

The fully field configurable 1600 series 1/16 DIN controllers combine advanced hardware design and sophisticated electronic control technology into a compact, reliable 1/16 DIN package. Easy to install and operate, the plug-in design requires only panel cutout, instrument mounting, setpoint and alarm setpoint adjustment to set up. The 1600 series’ SMART self-tuning feature automatically adjusts the controller to rapidly respond to all process changes. Sophisticated control features include:

• Start-up and continuous in-process tuning

• Continuous self-tuning without artificial upset

• Proprietary control algorithm using fuzzy logic/artificial intelligence concepts

• Proven maximum suppression of overshoot

Applications

Rubber production, polymerization and synthetic fiber plants

• Packaging and packing equipment

• Fermentation equipment, reactors for chemical and pharmaceutical industries

• Food industries

• Environmental chambers and refrigeration

• Extrusion lines, co-extrusion lines, plastic films and injection presses


Specifications

Control Modes Field Selectable On/Off

PID

SMART (Autotune)

Outputs

One (1) Heat or Cool Output

Relay

NO. SPDT contact, 3 Amps at 250 Vac

(resistive)

SSR Drive

Transistor output of 24 Vdc max at 1mA,

14 Vdc ± 20% at 20mA

4-20 mA Current

Alarm Features

Field Selectable

Functions:

Process, Deviation, Band or Heater Breakdown Alarm (1604 only)

Types:

High/Low for Process Alarm

Inside/Outside for Band Alarm

Normally Energized/Normally De-energized

Inhibit on Power-Up and Setpoint Changes

Latching/Non-latching (Manual/Automatic Reset)

Input Specifications

Sensor Type Range* °F °C

Thermocouple

J 0-999 0-800

K 0-999 0-999

L 0-999 0-999

N 0-999 0-999

RTD -199 to +999 -199 to +500

                          -19.9 to +99.9

Instrument Power 100-240 Vac, +10%, -15%, 50-60 Hz, 24 Vac or Vdc

Operating Environment 30-120°F (0-50°C) ambient with less than 85% relative humidity

Chromalox Specification Data Sheet
Chromalox Product Instruction Sheet

You must have the free Adobe Acrobat Reader plug-in.

Secure Online Ordering
Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method.  Your shipping cost will be displayed in your shopping cart.

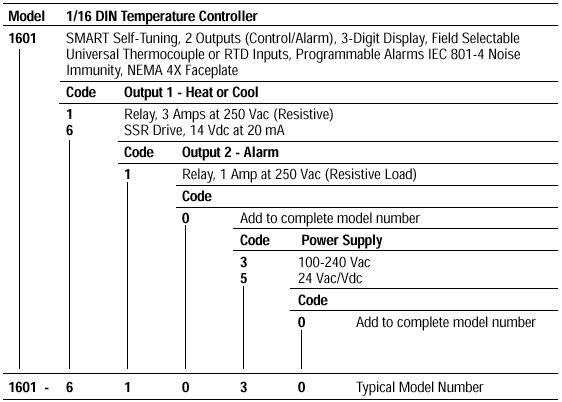

Item Id Description Click "Select" below to see our price and actual real-time quantity in stock

CHROM306464

1601-11030 SGL. DPLY.,2 RLY

Select

The following typically ships in 5-7 working days or less plus allow additional time for your selected UPS or FedEx shipping method.

CHROM306472

1601-61030 SGL. DPLY., SSR DR., R

Select
