Qmark Fan Forced Wall Heaters - Commercial Type CWH 1000 Series

Links to other types of Wall Heaters:
Qmark Residential Fan Forced Wall Heaters (Type CRA)
Qmark Architectural  Fan Forced Wall Heaters (Type AWH)
Qmark Commercial Fan Forced Wall Heaters (Type EFQ)
Qmark Commercial Fan Forced Wall Heaters (Type CWH3000)

We are an authorized distributor for Qmark^®

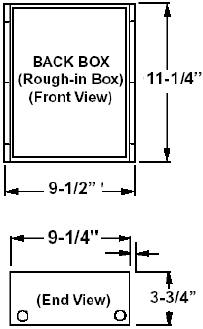

Heating element is heavy duty steel fins brazed to steel sheathed tubular elements in a grid pattern that covers the entire discharge area. Fan Delay: On a call for heat element is energized but fan is delayed until element is warm, eliminating the circulation of cold air during start up. When the thermostat is satisfied, the element is de-energized, but the fan continues until all heated air is discharged providing longer component life and higher comfort level. Designed for easy installation. Heater is mounted prior to wiring. Both hands are free to make field connections in roomy compartment. Motor is totally enclosed, impedance protected with permanently lubricated bearings. Airflow system maximizes air volume at minimum noise level; 65 CFM. Rugged louvered commercial grade steel grille creates downflow air pattern. This heater is designed for installation in 2 x 4 or larger wall sections using the wall box provided. The heater may also be surface mounted to the wall by using the Surface Mounting Frame, Catalog No. CWHSM (order separately).

The heater may be wired with standard building wire (60C). Refer to specification chart for correct supply voltage and wire size. Built-in snap action thermostat (no radio/TV interference; 40 - 85F). A hole plug is provided for tamper resistant installations. Disconnect Switch: Standard Northern White baked-on enamel finish. Single Phase

• 1. Do not install heater closer than 1" from floor.
• 2. Do not install heater behind towel rack, behind door, in floor, in ceiling, in closet, or where air flow may be obstructed.
• 3 Requires 3 wires if remote thermostat is desired.

Selecting Heaters:

Use the calculator below for selecting the quantity and wattage of wall heaters you will need in a given area, when using the heaters as a primary heat source (no other heaters present.) Supplementing existing heaters such as a forced air furnace system requires less wattage. A general rule of thumb for primary heating is to use 10 Watts / Square Foot of heat. Example: a 10'x10' room is 100 square feet: (100 x 10 W/Ft² = 1000 Watts.)

Keep in mind that this is for an insulated building or room insulated to "electric heating" standards and is an estimation based on average conditions.

Secure Online Ordering Delivery time: typically ships in 1 working day or less plus the time of your selected UPS shipping method.  Your shipping cost will be displayed in your shopping cart. Accessories (Optional)
Item ID	Catalog#	Volts	Watts	Amps	Price	Click "Select" below to see the actual quantity in stock
QMARK685360139500	CWH1101DS	120	1000/500	8.4	$156.76
QMARK685360139517	CWH1151DS	120	1500/750	12.6	$156.76
QMARK685360139531	CWH1201DS	120	1800	16.7	$156.76
QMARK685360139548	CWH1202DS	240/208	1500/750/2000/1000	7.2/3.6/8.3/4.2	$156.76
Delivery time: The following typically ship in 7-10 workdays or less plus the time of your selected UPS shipping method.
QMARK685360139562	CWH1208DS	208	2000	9.6	$156.76
QMARK685360139524	CWH1157DS	277/240	1500/750/2000/1000	4.7/2.3/5.4/2.7	$156.76
QMARK685360139555	CWH1207DS	277/240	1500/750/2000/1000	6.3/3.1/7.2/3.6	$156.76
Accessories (Optional): Delivery time: The following typically ship in 1 working day or less plus the time of your selected UPS shipping method.

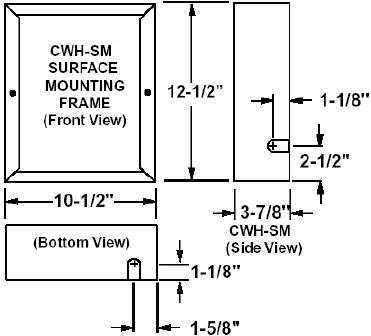

QMARK685360139470	CWHSM	Surface Mounting Frame (15 1/4"H x 12"W x 3 3/4"D)			$27.95
QMARK685360139484	CWHS2	2" Semi-Recessed Frame (15 1/4"H x 12"W x 2"D)			$27.95
QMARK685360139487	CWHS1	1" Semi-Recessed Frame (15 1/4"H x 12"W x 1"D)			$27.95
Wall Mount Thermostats: (Optional)
WR10001	WR-65	1A65-641 WR-65 SPST Thermostat, 40°F to 85°F, 22 amp 120/240V, 18 amp 277V, Single Pole			$26.35
WR10002	WR-66	1A66-641 WR-66 DPST Thermostat, 40°F to 85°F,  22 amp 240V, 18 amp 277V, Double Pole (D.P.S.T., Includes off position)			$26.35
AUBE10003	TH106	Aube Tech. 120/240V, S.P.S.T., Programmable Line Voltage Thermostat			$63.67
AUBE10010	TH115-A-240D	Aube Tech. Double Pole, 240V Programmable Line Voltage Thermostat, 3600W @ 240 V 15 A resistive 60 Hz 4 wires / D.P.S.T.			$66.17
QMARK98319841025	TC1	Qmark Clear Plastic Universal Lockable Thermostat Guard. Dimensions: 7"L x 4.28"H x 2.74"D.			$52.20

Qmark^® is a registered trademark and division of Marley Engineered Products.
