Excel Dryer XLERATOR Model Hand Dryers

Secure Online Ordering

We are an authorized distributor for Excel Dryer, Inc.

Finally... A Fast Hand Dryer!

• 3 Times Faster! Dries in 10-15 Seconds.

• Uses 80% Less Energy.

• 95% Cost Savings vs. Paper Towels.

• GreenSpec^® Approved and LEED^® Rated.

• Source Reduction Alternative.

• Promotes Hygiene.

Saves 95% over paper towels, and 80% over the traditional dryer in operating costs

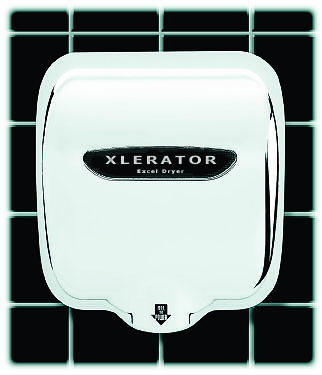

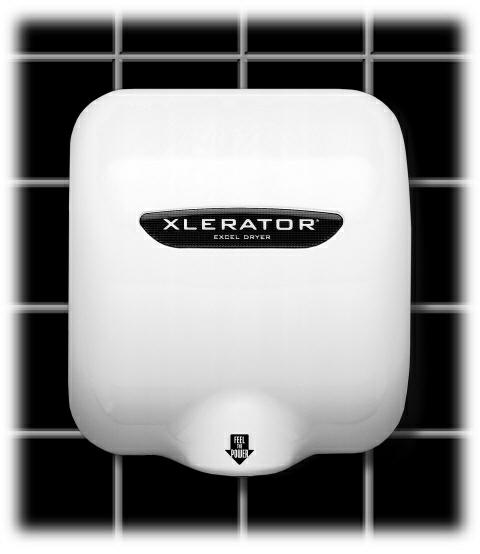

Model XL-W Surface-Mounted Automatic Hand Dryer White Epoxy Painted Cover	Model XL-C Surface-Mounted Automatic Hand Dryer Chrome Plated Cover

Dries Hands in 10 to 15 Seconds

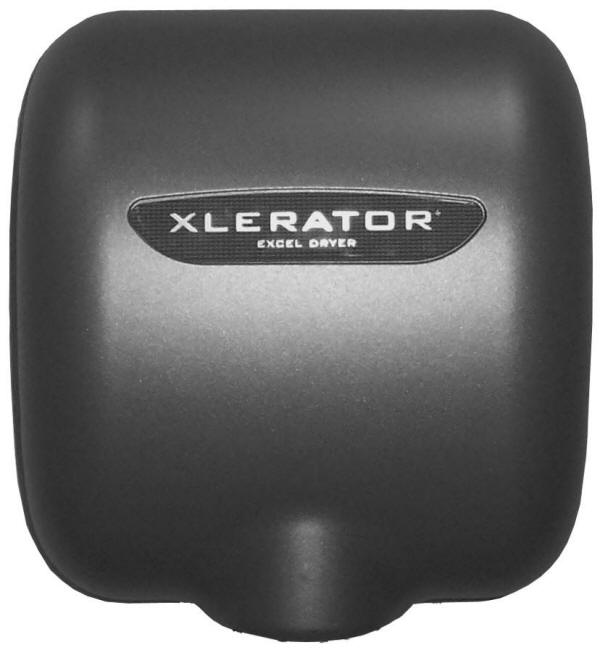

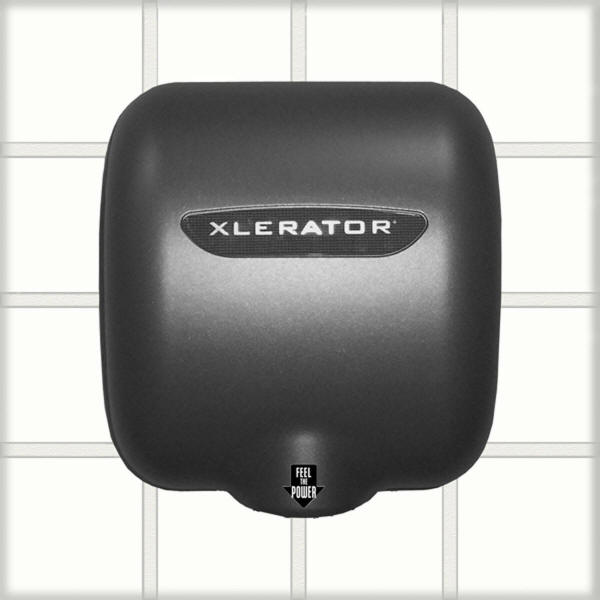

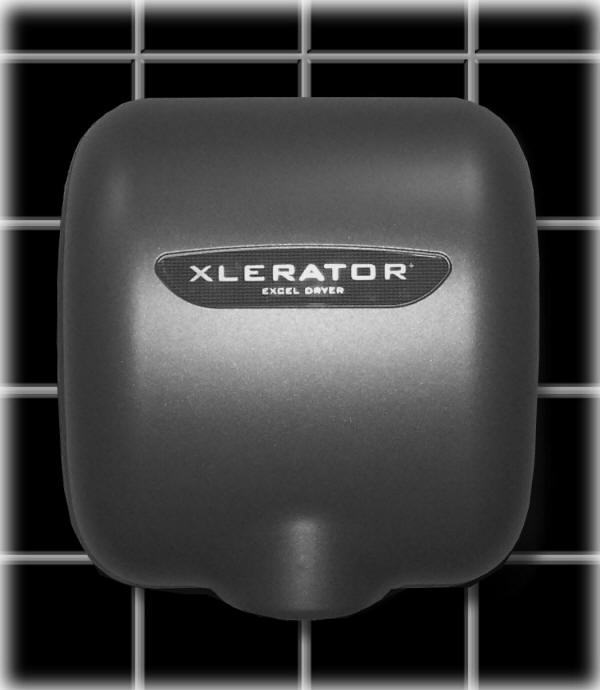

Now available with a graphite colored cover:

SPECIFICATIONS

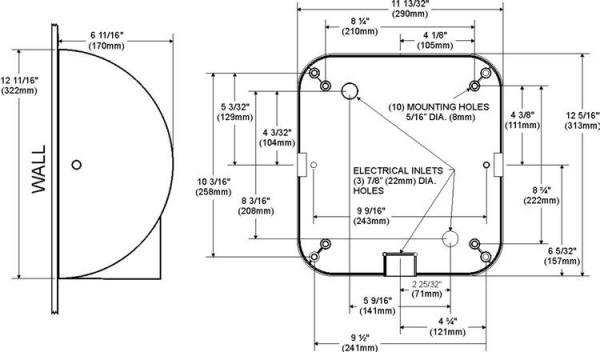

Dimensions: 11 3/4" LG. X 12 11/16" HIGH X 6 11/16" DEEP
(298 MM LG. X 322 MM HIGH X 170 MM DEEP)
Weight:16 LBS. (7.3 KGS.)

1. Hand dryer cover shall be a one-piece, heavy-duty, rib-reinforced, die-cast zinc alloy. It shall be lightweight, unbreakable, rustproof and all exposed surfaces shall be bright chrome plated or finished with chip-proof, electrostatically applied epoxy paint and fastened to a wall plate by two chrome plated tamper-proof bolts.

2. Hand dryer wall plate shall be equipped with (3) 7/8" (22 mm) diameter holes, one of which shall be suitable for use with surface conduit, for ease of wiring.

3. All internal hand dryer parts shall be coated according to Underwriters' Laboratories, Inc. requirements.

4. Entire mechanism shall be internally grounded.

1. Hand dryer motor shall be a series commutated through-flow discharge vacuum motor/blower (5/8 HP / 20,000 RPM) which provides air velocity of 16,000 LFM (linear feet per minute) at the air outlet and 14,000 LFM at the hands (4 inches [102 mm] below air outlet).

2. Hand dryer heating element (900 W) is constructed of Nichrome wire and mounted inside the blower housing, thereby being vandal proof. It shall be protected by an automatic resetting thermostat, which shall open whenever air flow is cut off and shall close when flow of air is resumed. It shall produce an air temperature of up to 135°F (57°C) at a 72°F (22°C) ambient room temperature at the hands (4 inches [102 mm] below air outlet).

3. Hand dryer Control assembly is activated by an infrared optical sensor located next to the air outlet. The dryer shall operate as long as hands are under the air outlet. There is a 35-second lockout feature if hands are not removed.


The hand dryer shall be guaranteed to be free from defects for a period of three (3) years. Warranty shall include factory performed labor as well as the repair or exchange of defective parts, at manufacturer's option.

3 Part Specification Pages Cost savings vs. paper towels

You must have the free Adobe Acrobat Reader plug-in.

Read the article on XLERATOR® featured in Environmental Building News

Excel Dryer is now a member of the US Green Building Council

The market for warm air Hand Dryers is growing at a rapid pace for a number of reasons, as follows:

• 90% Cost Savings vs. Paper Towels
  The energy to operate a hand dryer is less than 10% of the cost of paper towels, including the elimination of associated labor costs for ordering, storing, replenishing dispensers, collecting and disposing of paper towels. Here are some typical savings examples:

  A cost savings analysis worksheet is available to help you determine the effect of converting from paper towels to Excel hand dryers. Just take a few minutes to analyze the impact on your own facility.

  Cost Savings: Excel Hand Dryers vs. Paper Towels.

• Good For The Environment
  Converting to Excel Hand Dryers is a great source reduction alternative. Many businesses and institutions are required by law to reduce non-recyclable waste.
• Approved
  Excel is the only hand dryer manufacturer to achieve ^® approval.
• Promotes Hygiene
  The use of hand dryers allows washrooms to stay cleaner and more sanitary. Picking up and disposing of bacteria-laden paper towel waste is one of the custodians' least favorite tasks.
• Labor Savings
  Excel Hand Dryers are virtually maintenance-free, except for a recommended annual cleaning. Paper towels, by comparison, require one hour of maintenance for each case of towels used.
• Reduced Vandalism
  Hand dryers eliminate the vandalism often present with paper towels. Towels clog toilets and sinks, can be set aflame, and are thrown, wet, onto walls and floors.
• Always Ready For Use
  Hand Dryers are ready to be used 24 hours a day. Say goodbye to customer complaints about empty or non-functioning paper towel dispensers.
• Best Warranty
  Excel Dryers offer the best warranty in the industry, including a 10-year unlimited warranty on our Hands On® models (see specifications for details).
• Easy Access For The Disabled
  Hand Dryers are easily positioned at recommended heights for use by the physically challenged

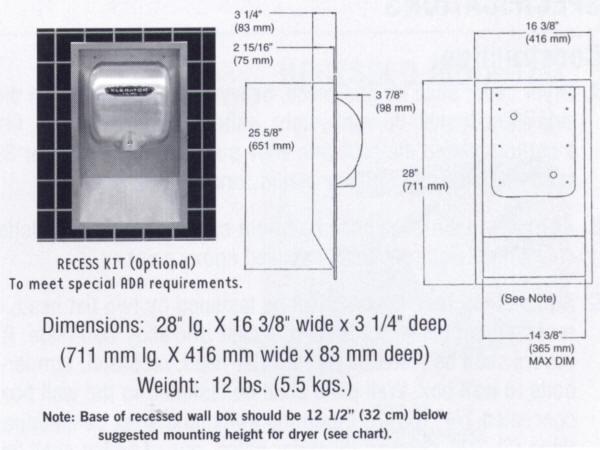

Recess kit - only needed in ADA (Americans With Disabilities Act) required applications where the unit can not protrude from the wall too much because of wheelchairs, etc.

Secure Online Credit Card Ordering - SSL Encryption delivery time: typically ships in 2-3 working days or less plus the time of your selected UPS shipping method.  Price below does not include shipping cost which is calculated using your address before entering your credit card number.
MODEL	DESCRIPTION	VOLTAGE, AMPS, Hz	PRICE
XL-W-120	White Epoxy Painted Cover	110/120, 12.5 Amp, 60 Hz	$549.00
delivery time: the following typically ship in 5-10 working days or less plus the time of your selected UPS shipping method.  Price below does not include shipping cost which is calculated using your address before entering your credit card number.
XL-W-208	White Epoxy Painted Cover	208, 7.0 Amp, 60 Hz	$549.00
XL-W-240	White Epoxy Painted Cover	220/240, 6.5 Amp, 60 Hz	$549.00
XL-W-277	White Epoxy Painted Cover	277, 5.5 Amp, 60 Hz	$549.00
XL-C-120	Chrome Plated Cover	110/120, 12.5 Amp, 60 Hz	$599.00
XL-C-208	Chrome Plated Cover	208, 7.0 Amp, 60 Hz	$599.00
XL-C-240	Chrome Plated Cover	220/240, 6.5 Amp, 60 Hz	$599.00
XL-C-277	Chrome Plated Cover	277, 5.5 Amp, 60 Hz	$599.00
XL-GR	Graphite colored cover
XL-RE	Recess kit for ADA (Americans With Disabilities Act) required applications.
