Mor Electric Heating is an authorized distributor for Chromalox®

Chromalox® Tubular heating elements are versatile and perform exceptional heat transfer by conduction, convection or radiation to heat liquids, air, gases and surfaces. In most heater assemblies, tubular element design configurations vary round, triangular, flat press and formed bends are made to customer requirements. Custom built from .200" to .475" diameters, a multitude of sheath materials with temperatures to 1600°F, watt densities to fit many applications and up to 600 volts. Over 20 optional terminations and many stocked accessories.

	Up to 172" Lengths (Std.)
	75 - 10,000 Watts (Std.)
	120, 240 and 480 Volt (Std.)
	3 - 53 W/In 2 (Std.)
	Max. Sheath Temperature:

• Copper — 350°F
• Steel — 750°F
• Stainless Steel — 1200°F
• INCOLOY® — 1600°F

Different cross sectional shapes are available to match and contact platen holes for efficient heat transfer.

Many different terminal options are available:

• Threaded Bolt
• Terminal Connector
• Leadwire with Sleeving
• Single-end or Both-end Leadwires
• Right-angle Connector

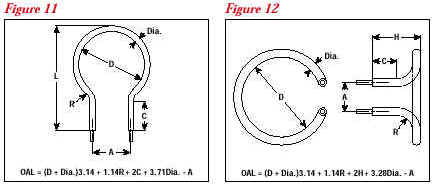

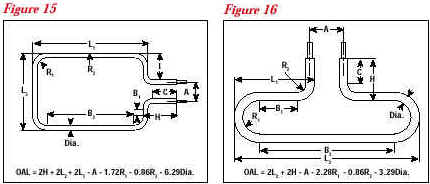

For formed tubular heaters, please reference a figure number below.
