G706J MGO (Mineral Insulated) Metal
Transition Thermocouples

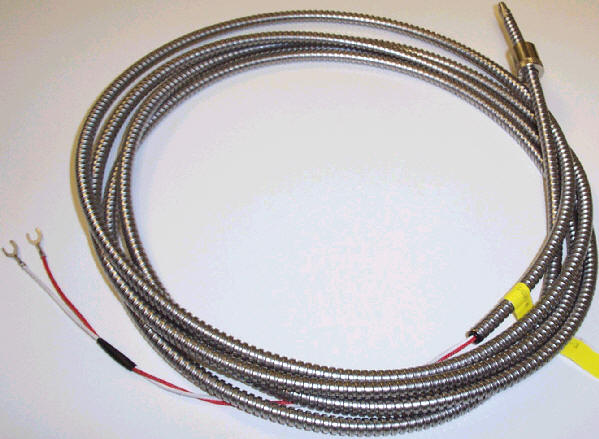

Bayonet Style Type J
Thermocouple
The JA series
armor adjustable immersion thermocouple has a bayonet cap on the flexible armor
and allows for immersion for the entire specified 'B' dimension. This assembly
is used in a variety of applications (with a bayonet
adapter) where ease of installation and quick disconnect is preferred.
-
B = 120"
-
C = 6"
-
D = 0.188"
-
Q =0.275"
-
7/16" ID Single Slot Bayonet Cap
-
2" split leads with spade lugs
-
Stranded, fiberglass insulation with stainless steel armor
|
Secure
Online Ordering
*Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method. Your shipping cost will be displayed in your shopping cart. The Plug
and Jacks can be added to your basket after adding the thermocouple
below. |
|
Item ID |
Catalog
# |
Description |
Price |
Click "Select" below to see our actual real-time quantity in stock |
|
MORPY10014 |
JAA3-F3A120-3 |
Type J Thermocouple - Armor Adjustable With Bayonet Cap -
120" Flexible Armor and Leadwire (Old Part # JAA-4120-3) |
$29.00 |
 |
Ring Style Type J Thermocouple
These ring type assemblies have the
thermocouples embedded into a stainless steel stamping for grounded junctions to measure the surface temperature of
nozzles, extruder barrels, die heads, molds, and many other applicable surfaces.
|
Secure
Online Ordering
*Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method. Your shipping cost will be displayed in your shopping cart.
Minimum total order $25.00 |
|
Item ID |
Catalog
# |
Description |
Price |
Click "Select" below to see our actual real-time quantity in stock |
|
MORPY10019 |
JRS1-F3B120-3 |
Surface Mount Type J Grounded Thermocouple - Ring Style with
Ring Size: .2"ID x .375"W x .875"L - 120" Stranded Fiberglass Leadwire with
Stainless Steel Overbraid - 2" Split Leads With Spade Lugs, #6-#10 screw |
$17.50 |
|

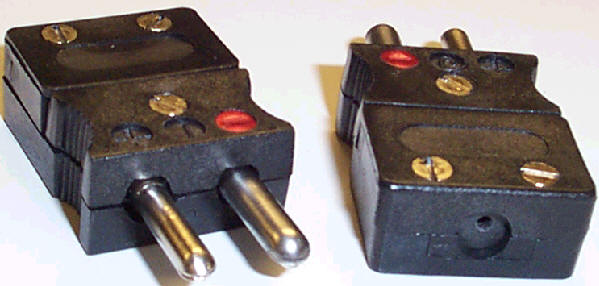

Plug and Jack
61J
62J
|
|
-
Hollow pins
-
350°F temperature rating
-
7/16" pin spacing
|
|
Secure
Online Ordering
*Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method. Your shipping cost will be displayed in your shopping cart.
Minimum total order $25.00 |
|
Item ID |
Catalog
# |
Description |
Price |
Click "Select" below to see our actual real-time quantity in stock |
|
MORPY10002 |
61J |
Standard Size Type J Plug |
$3.90 |
|
|
MORPY10004 |
62J |
Standard Size Type J Type Jack |
$3.70 |
|

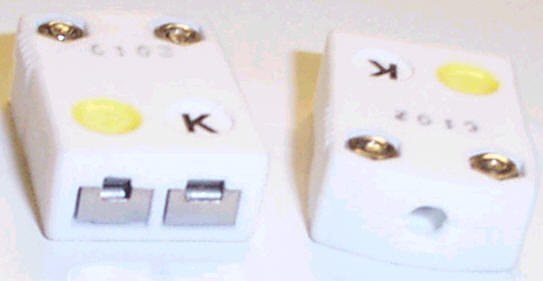

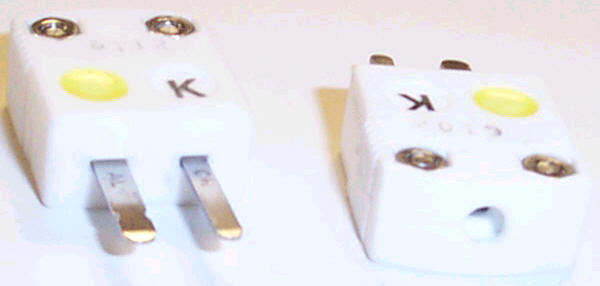

Miniature ceramic plug and
jack:
IRCER11610
IRCER11609
 | Ultra High Temperature Miniature Connectors.
Ceramic Body Temp. Rating: 560°C (1200°F) |
|
| One-Piece Body with
Removable Cap Design.
Extra Heavy Duty Two-piece ceramic construction assures long life |
|
| Oversized Terminal Screws for Easy Wiring |
|
| Accepts Stranded or Solid Wire up to Size 20 AWG |
|
| Use with fine
gage thermocouple wires in applications where high temperatures are
required. |
|
Secure
Online Ordering
*Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method. Your shipping cost will be displayed in your shopping cart.
Minimum total order $25.00 |
|
Item ID |
Catalog
# |
Description |
Price |
Click "Select" below to see our actual real-time quantity in stock |
|
IRCER11610 |
SHX-K-F |
High
Temperature Type K Miniature
Ceramic Jack Connector |
$10.00 |
|
|
IRCER11609 |
SHX-K-M |
High
Temperature Type K Miniature
Ceramic Plug Connector
|
$10.00 |
|
Bayonet Fitting Adapters
 |
The plated steel bayonet adapter accommodates the
bayonet lock cap assembly to bottom the hot junction in holes in machine walls,
cylinder, or dies. 705-7/8. |
|
Secure
Online Ordering
*Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method. Your shipping cost will be displayed in your shopping cart.
Minimum total order $25.00 |
|
Item ID |
Catalog
# |
Description |
Price |
Click "Select" below to see our actual real-time quantity in stock |
|
MORPY10010 |
705-0.88 |
Bayonet Fitting Adaptor, 1/8NPT x 7/8 |
$1.30 |
|
|
