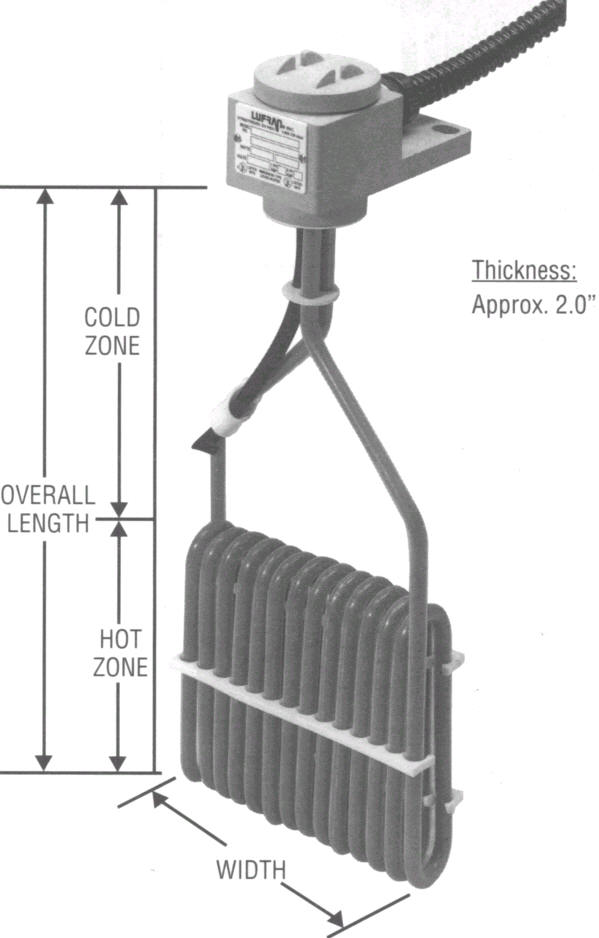

Lufran TFMO Series Teflon* Immersion Heaters

We are a distributor for Lufran, Inc.

Single phase only.
Available in 2 KW thru 6 KW.
Low watt density - nominal 10 watts/sq. inch.
120, 240, 480 volts standard - other voltages available.
Rugged construction prevents floating.
Flame retardant, vapor tight, Polypropylene terminal box.
Stainless steel elements with cladding of TEFLON^®*.
Internal metal ground for maximum safe operation.
3 ft. flexible PVC liquid tight conduit.
Thermal Fuse Overtemp protection standard (Field replaceable) with optional bimetal thermostat (FQ2M).
UL and C-UL approved.
Special widths and lengths available.
Polypropylene guards are standard - optional PVDF/ Guards of TEFLON^®* available.
Use of liquid level controls is strongly recommended.
Extended cold zones available

Element Only
Complete Heater With Guard	Watts	Volts	Vertical Ht. in.	Width in.	Hot Zone in.	Cold Zone in.
TFMO-1104-08-14C	1000	120	14	4	8	6
TFMO-1204-08-14C	1000	240	14	4	8	6
TFMO-2106-08-17C	2000	120	17	6	8	9
TFMO-2206-08-17C	2000	240	17	6	8	9
TFMO-2406-08-17C	2000	480	17	6	8	9
TFMO-3207-09-23C	3000	240	23	7	9	14
TFMO-3407-09-23C	3000	480	23	7	9	14
TFMO-4208-11-29C	4000	240	29	8	11	18
TFMO-4408-11-29C	4000	480	29	8	11	18
TFMO-5209-12-35C	5000	240	35	9	12	23
TFMO-5409-12-35C	5000	480	35	9	12	23
TFMO-6210-13-40C	6000	240	40	10	13	27
TFMO-6410-13-40C	6000	480	40	10	13	27

Element Only:
TFMO-1104-08-14E	1000	120	14	4	8	6
TFMO-1204-08-14E	1000	240	14	4	8	6
TFMO-2106-08-17E	2000	120	17	6	8	9
TFMO-2206-08-17E	2000	240	17	6	8	9
TFMO-2406-08-17E	2000	480	17	6	8	9
TFMO-3207-09-23E	3000	240	23	7	9	14
TFMO-3407-09-23E	3000	480	23	7	9	14
TFMO-4208-11-29E	4000	240	29	8	11	18
TFMO-4408-11-29E	4000	480	29	8	11	18
TFMO-5209-12-35E	5000	240	35	9	12	23
TFMO-5409-12-35E	5000	480	35	9	12	23
TFMO-6210-13-40E	6000	240	40	10	13	27
TFMO-6410-13-40E	6000	480	40	10	13	27

*Reg. U.S. Pat Office for Dupont's fluorocarbon resins.
