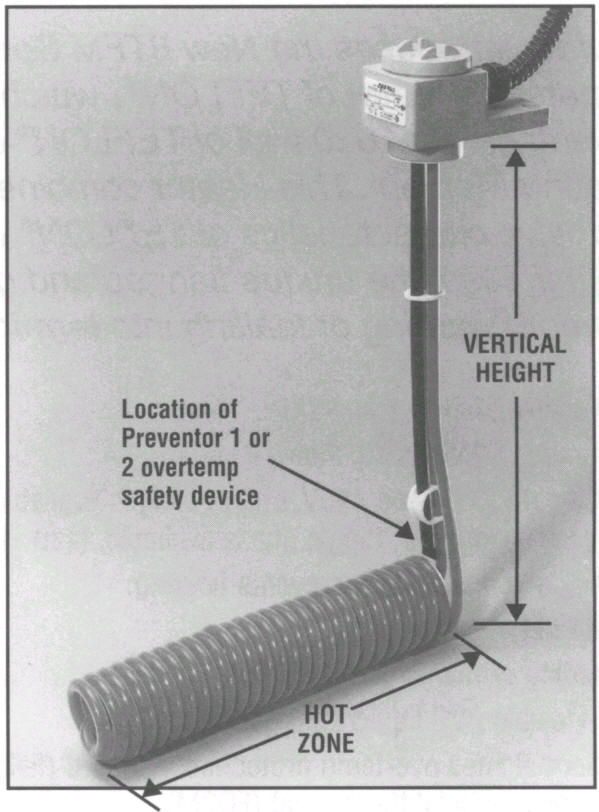

Lufran TFML Series L-Shaped Teflon®* Immersion Heaters

We are a distributor for Lufran, Inc.

The TFML series L-shaped electric immersion heater of TEFLON® has the same construction and characteristics of the TFM over-the-side heater. Special features of this style heater are as follows:

Heater element extends horizontally along bottom, providing superior heat distribution.
Vertical portion above horizontal coil is not heated.
Longer vertical lengths available - up to 32".
Guard recommended. Standard guard is Polypropylene, other materials available
Single phase only.
Longer vertical heights available - up to 32".
Thermal Fuse Overtemp protection standard (Field replaceable) with optional Bi-Metallic Thermal Fuse (FQL2M).
UL and C-UL approved.
Use of liquid level controls is strongly recommended.
Longer vertical heights available
Standard heater has 3' leads and conduit. Additional lengths available; add -X plus length wanted in inches to the end of the model number.

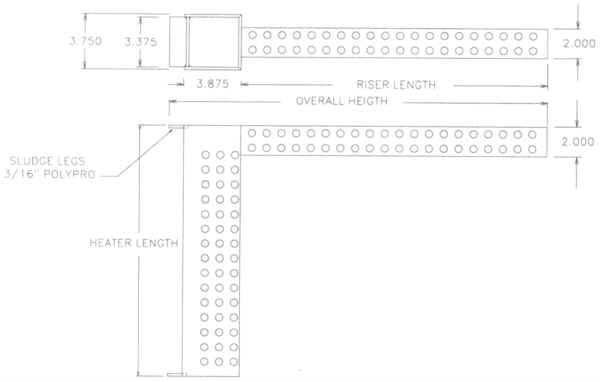

Guard:


Complete Heater With Guard	Watts	Volts	Horiz. Lgth. in.	Vert. Ht. in.
TFML-1109-R12C	1000	120	9	12
TFML-1209-R12C	1000	240	9	12
TFML-2113-R18C	2000	120	13	18
TFML-2213-R18C	2000	240	13	18
TFML-2413-R18C	2000	480	13	18
TFML-3217-R18C	3000	240	17	18
TFML-3417-R18C	3000	480	17	18
TFML-4221-R18C	4000	240	21	18
TFML-4421-R18C	4000	480	21	18
TFML-5225-R18C	5000	240	25	18
TFML-5425-R18C	5000	480	25	18
TFML-6229-R18C	6000	240	29	18
TFML-6429-R18C	6000	480	29	18
2TFML-8237-R18C	8000	240	37	18
2TFML-8437-R18C	8000	480	37	18
2TFML-9244-R18C	9000	240	44	18
2TFML-9444-R18C	9000	480	44	18

Heater Without Guard	Watts	Volts	Horiz. Lgth. in.	Vert. Ht. in.
TFML-1109-R12E	1000	120	9	12
TFML-1209-R12E	1000	240	9	12
TFML-2113-R18E	2000	120	13	18
TFML-2213-R18E	2000	240	13	18
TFML-2413-R18E	2000	480	13	18
TFML-3217-R18E	3000	240	17	18
TFML-3417-R18E	3000	480	17	18
TFML-4221-R18E	4000	240	21	18
TFML-4421-R18E	4000	480	21	18
TFML-5225-R18E	5000	240	25	18
TFML-5425-R18E	5000	480	25	18
TFML-6229-R18E	6000	240	29	18
TFML-6429-R18E	6000	480	29	18
2TFML-8237-R18E	8000	240	37	18
2TFML-8437-R18E	8000	480	37	18
2TFML-9244-R18E	9000	240	44	18
2TFML-9444-R18E	9000	480	44	18

*Reg. U.S. Patent Office for DuPont's fluorocarbon resins.
