Lufran TF Series Teflon* Immersion Heaters

We are a distributor for Lufran, Inc.

• Non-Corrosive Heaters of TEFLON®
• Replaces Alumina, Graphite, Lead.
• Unbreakable construction.
• Special lengths and voltages available.
• 36" liquid tight and acid resistant flex conduit and lead wires as standard. Additional lengths available.
• PVDF or Guards of TEFLON® available.
• Unique patented purge system available which can significantly extend heater life.
• Element only is not usually supplied with a mounting plate.
• Use of liquid level controls is strongly recommended.

• Single phase standard, three phase available as an option. Add "-3" to the end of the model number

• Longer overall length available.

Junction Box:

Guard:

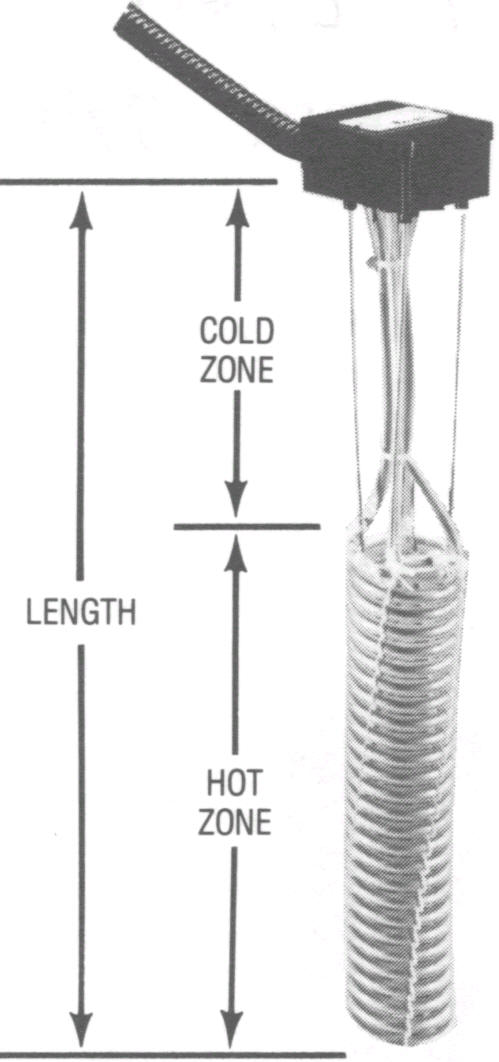

Complete Heater With Guard	Watts	Volts	Length (in)	Hot Zone (in)	Cold Zone (in)
TF-1114C	1000	120	14	9	5
TF-1214C	1000	240	14	9	5
TF-2221C	2000	240	21	14	7
TF-2421C	2000	480	21	14	7
TF-3227C	3000	240	27	20	7
TF-3427C	3000	480	27	20	7
TF-4235C	4000	240	35	26	9
TF-4435C	4000	480	35	26	9
TF-5241C	5000	240	41	32	9
TF-5441C	5000	480	41	32	9
TF-6247C	6000	240	47	38	9
TF-6447C	6000	480	47	38	9

Element Only
TF-1114E	1000	120	14	9	5
TF-1214E	1000	240	14	9	5
TF-2221E	2000	240	21	14	7
TF-2421E	2000	480	21	14	7
TF-3227E	3000	240	27	20	7
TF-3427E	3000	480	27	20	7
TF-4235E	4000	240	35	26	9
TF-4435E	4000	480	35	26	9
TF-5241E	5000	240	41	32	9
TF-5441E	5000	480	41	32	9
TF-6247E	6000	240	47	38	9
TF-6447E	6000	480	47	38	9

*Reg. U.S. Pat Office for Dupont's fluorocarbon resins.
