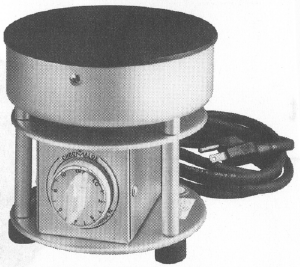

Chromalox ROPH Heavy Duty Hot Plates

Mor Electric Heating is an authorized distributor for Chromalox®

• 660 - 2,000 Watts

• 120 and 240 Volt

• Temp. to 1000°F

• Infinite Control

• UL Listed

• Continuous Heavy Duty Laboratory Work

• For Heating Beakers and Pans

• Evaporations

• Heat Treatments

• Dehydrations

• Flat, Rugged Cast Heating Element is designed for heavy duty service. It is unaffected by physical and thermal shock. Spillovers cannot damage the heating unit.

• Sturdy Frame

• Enclosed Switch in a terminal box which protects it from excess heat and assures safety and long life.

• Six Foot, 3-Conductor Cord — supplied with all models; has NEMA type plug.

• Chromatrol — devices have HI, LO and infinite control positions. Can be turned either to left or right to select proper heat from 0 to 100% wattage with infinite control over first 50% of total wattage. Energized continuously in HI position, at other settings it delivers selected input level under control of a simple bimetal timer.

Nema 5-15P

Nema 5-20P

Nema 6-15P

Dimensions in inches:



Chromalox Installation, Operation and Maintenance Instructions

You must have the free Adobe Acrobat Reader plug-in.

Secure Online Credit Card Ordering - SSL Encryption delivery time: typically ships in 5-7 working days or less plus the time of your selected UPS shipping method.  Price below does not include shipping cost which is calculated using your address before entering your credit card number.
Item ID	Catalog# / Description	Price	Click "Select" below
CHROM298257	ROPH-64 120V1P 660W	$313.00
CHROM298126	ROPH-104 120V1P 1000W	$313.00
CHROM298134	ROPH-124 120V1P 1200W	$313.00
CHROM298142	ROPH-144 120V1P 1400W	$364.00
CHROM298169	ROPH-204 240V1P 2000W	$364.00

---

---

Chromalox® is a registered trademark.
