Lufran QZM Series Single Tube Quartz Immersion Heaters

We are a distributor for Lufran, Inc.

Grounded Metal Heating Element is standard on all Quartz Heaters.
Resettable Over-Temp System available as an option. (Preventer 2)
Specially designed liquid tight cap prevents entry of liquids or vapors into heater.
Standard heater has 36" liquid tight and acid resistant flex conduit and lead wires as standard. Additional lengths available; add -X plus length wanted in inches to the end of the model number.
UL and C-UL approved.
Special voltages available-consult factory.
Use of liquid level controls is strongly recommended.
All Quartz Heaters are supplied with "One-Time" Thermal Fuse Preventer 1 Over-Temperature System as standard. (Replacement Thermal Fuses for Quartz Heaters are Model No. FQ1.)
Standard guard is polypropylene; special guard material available. Protective Guards made from PVDF available as an option.
Single phase standard; three phase available as an option. Add "-3" to the end of model number.
Also available is the complete 3QZM triple tube heater which consists of 3 elements, 3 tubes, and 1 guard.

Element and Tube shown separately

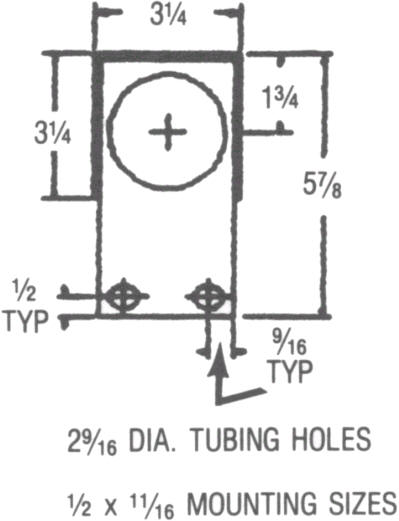

Guard:


Complete Heater with Guard	Watts	Volts	Lgth. in.	Hot Zone in.	Cold Zone in.
QZM-1111C	1000	120	11	7	4
QZM-1211C	1000	240	11	7	4
QZM-1117C	1000	120	17	7	10
QZM-1217C	1000	240	17	7	10
QZM-2117C	2000	120	17	12	5
QZM-2217C	2000	240	17	12	5
QZM-2417C	2000	480	17	12	5
QZM-2223C	2000	240	23	12	11
QZM-2423C	2000	480	23	12	11
QZM-3223C	3000	240	23	18	5
QZM-3423C	3000	480	23	18	5
QZM-3229C	3000	240	29	18	11
QZM-3429C	3000	480	29	18	11
QZM-35229C	3500	240	29	21	8
QZM-35429C	3500	480	29	21	8
QZM-4235C	4000	240	35	28	7
QZM-4435C	4000	480	35	28	7
QZM-4241C	4000	240	41	28	13
QZM-4441C	4000	480	41	28	13
QZM-5241C	5000	240	41	33	8
QZM-5441C	5000	480	41	33	8
QZM-5247C	5000	240	47	33	14
QZM-5447C	5000	480	47	33	14
QZM-6247C	6000	240	47	39	8
QZM-6447C	6000	480	47	39	8
QZM-6252C	6000	240	52	39	13
QZM-6452C	6000	480	52	39	13
QZM-8259C	8000	240	59	49	10
QZM-8459C	8000	480	59	49	10
QZM-10271C	10000	240	71	62	9
QZM-10471C	10000	480	71	62	9

Heater without Guard:
QZM-1111H	1000	120	11	7	4
QZM-1211H	1000	240	11	7	4
QZM-1117H	1000	120	17	7	10
QZM-1217H	1000	240	17	7	10
QZM-2117H	2000	120	17	12	5
QZM-2217H	2000	240	17	12	5
QZM-2417H	2000	480	17	12	5
QZM-2223H	2000	240	23	12	11
QZM-2423H	2000	480	23	12	11
QZM-3223H	3000	240	23	18	5
QZM-3423H	3000	480	23	18	5
QZM-3229H	3000	240	29	18	11
QZM-3429H	3000	480	29	18	11
QZM-35229H	3500	240	29	21	8
QZM-35429H	3500	480	29	21	8
QZM-4235H	4000	240	35	28	7
QZM-4435H	4000	480	35	28	7
QZM-4241H	4000	240	41	28	13
QZM-4441H	4000	480	41	28	13
QZM-5241H	5000	240	41	33	8
QZM-5441H	5000	480	41	33	8
QZM-5247H	5000	240	47	33	14
QZM-5447H	5000	480	47	33	14
QZM-6247H	6000	240	47	39	8
QZM-6447H	6000	480	47	39	8
QZM-6252H	6000	240	52	39	13
QZM-6452H	6000	480	52	39	13
QZM-8259H	8000	240	59	49	10
QZM-8459H	8000	480	59	49	10
QZM-10271H	10000	240	71	62	9
QZM-10471H	10000	480	71	62	9
