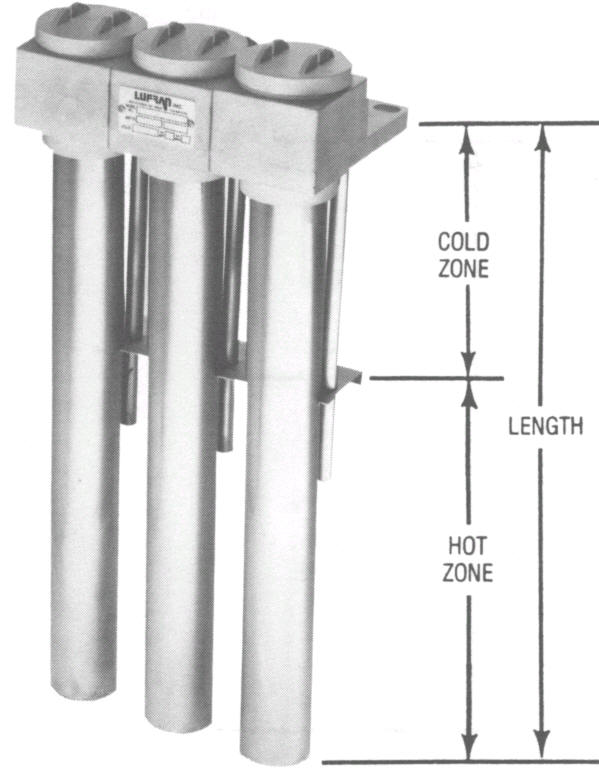

Lufran Triple Tube Metal Over the Side Heaters
We are a distributor for Lufran, Inc.
Heavy Duty, Rugged Construction.
All Metal Heaters are supplied with "One-Time" Thermal Fuse Preventer 1 Over-Temperature System as standard. (Replacement Thermal Fuses for Metal Heaters are model No. F1.) Each single heater in triple tube configuration is supplied with its own Thermal Fuse for maximum protection.
Resettable Over-Temp System available as an option.
Titanium Heaters are made from chemically pure materials.
All tubing pressure tested to eliminate possibility of leakage.
Specially designed liquid tight cap prevents entry of liquids or vapors into heater.
Standard heater has 36" liquid tight and acid resistant flex conduit and lead wires as standard. Additional lengths available; add -X plus length wanted in inches to the end of the model number.
UL and C-UL approved.
Use of liquid level controls is strongly recommended.
Each heater is individual, to allow for easy and inexpensive replacement.
|
Mild Steel |
|||||
|
Part # |
Watts |
Volts |
Lgth. in. |
Hot Zone in. |
Cold Zone in. |
|
3MS-3111 |
3000 |
120 |
11 |
6 |
5 |
|
3MS-3211 |
3000 |
240 |
11 |
6 |
5 |
|
3MS-3411 |
3000 |
480 |
11 |
6 |
5 |
|
3MS-6117 |
6000 |
120 |
17 |
10 |
7 |
|
3MS-6217 |
6000 |
240 |
17 |
10 |
7 |
|
3MS-6417 |
6000 |
480 |
17 |
10 |
7 |
|
3MS-9223 |
9000 |
240 |
23 |
16 |
7 |
|
3MS-9423 |
9000 |
480 |
23 |
16 |
7 |
|
3MS-12229 |
12000 |
240 |
29 |
20 |
9 |
|
3MS-12429 |
12000 |
480 |
29 |
20 |
9 |
|
3MS-15235 |
15000 |
240 |
35 |
25 |
10 |
|
3MS-15435 |
15000 |
480 |
35 |
25 |
10 |
|
3MS-18240 |
18000 |
240 |
40 |
30 |
10 |
|
3MS-18440 |
18000 |
480 |
40 |
30 |
10 |
|
3MS-24247 |
24000 |
240 |
47 |
37 |
10 |
|
3MS-24447 |
24000 |
480 |
47 |
37 |
10 |
|
3MS-27254 |
27000 |
240 |
54 |
44 |
10 |
|
3MS-27454 |
27000 |
480 |
54 |
44 |
10 |
|
3MS-30259 |
30000 |
240 |
59 |
49 |
10 |
|
3MS-30459 |
30000 |
480 |
59 |
49 |
10 |
|
3MS-36268 |
36000 |
240 |
68 |
58 |
10 |
|
3MS-36468 |
36000 |
480 |
68 |
58 |
10 |
|
304 Stainless |
|||||
|
3S4-3111 |
3000 |
120 |
11 |
6 |
5 |
|
3S4-3211 |
3000 |
240 |
11 |
6 |
5 |
|
3S4-3411 |
3000 |
480 |
11 |
6 |
5 |
|
3S4-6117 |
6000 |
120 |
17 |
10 |
7 |
|
3S4-6217 |
6000 |
240 |
17 |
10 |
7 |
|
3S4-6417 |
6000 |
480 |
17 |
10 |
7 |
|
3S4-9223 |
9000 |
240 |
23 |
16 |
7 |
|
3S4-9423 |
9000 |
480 |
23 |
16 |
7 |
|
3S4-12229 |
12000 |
240 |
29 |
20 |
9 |
|
3S4-12429 |
12000 |
480 |
29 |
20 |
9 |
|
3S4-15235 |
15000 |
240 |
35 |
25 |
10 |
|
3S4-15435 |
15000 |
480 |
35 |
25 |
10 |
|
3S4-18240 |
18000 |
240 |
40 |
30 |
10 |
|
3S4-18440 |
18000 |
480 |
40 |
30 |
10 |
|
3S4-24247 |
24000 |
240 |
47 |
37 |
10 |
|
3S4-24447 |
24000 |
480 |
47 |
37 |
10 |
|
3S4-27254 |
27000 |
240 |
54 |
44 |
10 |
|
3S4-27454 |
27000 |
480 |
54 |
44 |
10 |
|
3S4-30259 |
30000 |
240 |
59 |
49 |
10 |
|
3S4-30459 |
30000 |
480 |
59 |
49 |
10 |
|
3S4-36268 |
36000 |
240 |
68 |
58 |
10 |
|
3S4-36468 |
36000 |
480 |
68 |
58 |
10 |
|
316 Stainless |
|||||
|
3S6-3111 |
3000 |
120 |
11 |
6 |
5 |
|
3S6-3211 |
3000 |
240 |
11 |
6 |
5 |
|
3S6-3411 |
3000 |
480 |
11 |
6 |
5 |
|
3S6-6117 |
6000 |
120 |
17 |
10 |
7 |
|
3S6-6217 |
6000 |
240 |
17 |
10 |
7 |
|
3S6-6417 |
6000 |
480 |
17 |
10 |
7 |
|
3S6-9223 |
9000 |
240 |
23 |
16 |
7 |
|
3S6-9423 |
9000 |
480 |
23 |
16 |
7 |
|
3S6-12229 |
12000 |
240 |
29 |
20 |
9 |
|
3S6-12429 |
12000 |
480 |
29 |
20 |
9 |
|
3S6-15235 |
15000 |
240 |
35 |
25 |
10 |
|
3S6-15435 |
15000 |
480 |
35 |
25 |
10 |
|
3S6-18240 |
18000 |
240 |
40 |
30 |
10 |
|
3S6-18440 |
18000 |
480 |
40 |
30 |
10 |
|
3S6-24247 |
24000 |
240 |
47 |
37 |
10 |
|
3S6-24447 |
24000 |
480 |
47 |
37 |
10 |
|
3S6-27254 |
27000 |
240 |
54 |
44 |
10 |
|
3S6-27454 |
27000 |
480 |
54 |
44 |
10 |
|
3S6-30259 |
30000 |
240 |
59 |
49 |
10 |
|
3S6-30459 |
30000 |
480 |
59 |
49 |
10 |
|
3S6-36268 |
36000 |
240 |
68 |
58 |
10 |
|
3S6-36468 |
36000 |
480 |
68 |
58 |
10 |
|
Titanium |
|||||
|
3TI-3111 |
3000 |
120 |
11 |
6 |
5 |
|
3TI-3211 |
3000 |
240 |
11 |
6 |
5 |
|
3TI-3411 |
3000 |
480 |
11 |
6 |
5 |
|
3TI-6117 |
6000 |
120 |
17 |
10 |
7 |
|
3TI-6217 |
6000 |
240 |
17 |
10 |
7 |
|
3TI-6417 |
6000 |
480 |
17 |
10 |
7 |
|
3TI-9223 |
9000 |
240 |
23 |
16 |
7 |
|
3TI-9423 |
9000 |
480 |
23 |
16 |
7 |
|
3TI-12229 |
12000 |
240 |
29 |
20 |
9 |
|
3TI-12429 |
12000 |
480 |
29 |
20 |
9 |
|
3TI-15235 |
15000 |
240 |
35 |
25 |
10 |
|
3TI-15435 |
15000 |
480 |
35 |
25 |
10 |
|
3TI-18240 |
18000 |
240 |
40 |
30 |
10 |
|
3TI-18440 |
18000 |
480 |
40 |
30 |
10 |
|
3TI-24247 |
24000 |
240 |
47 |
37 |
10 |
|
3TI-24447 |
24000 |
480 |
47 |
37 |
10 |
|
3TI-27254 |
27000 |
240 |
54 |
44 |
10 |
|
3TI-27454 |
27000 |
480 |
54 |
44 |
10 |
|
3TI-30259 |
30000 |
240 |
59 |
49 |
10 |
|
3TI-30459 |
30000 |
480 |
59 |
49 |
10 |
|
3TI-36268 |
36000 |
240 |
68 |
58 |
10 |
|
3TI-36468 |
36000 |
480 |
68 |
58 |
10 |
|
