Lufran Single Tube Metal Over the Side Heaters

We are a distributor for Lufran, Inc.

Heavy Duty, Rugged Construction.
All Metal Heaters are supplied with "One-Time" Thermal Fuse Preventer 1 Over-Temperature System as standard. (Replacement Thermal Fuses for Metal Heaters are model No. F1.) Each single heater in triple tube configuration is supplied with its own Thermal Fuse for maximum protection.
Resettable Over-Temp System available as an option.
Titanium Heaters are made from chemically pure materials.
All tubing pressure tested to eliminate possibility of leakage.
Specially designed liquid tight cap prevents entry of liquids or vapors into heater.
36" liquid tight and acid resistant flex conduit and lead wires as standard. Additional lengths available.
UL and C-UL approved.
Use of liquid level controls is strongly recommended.
Vaporless seal head available. Add 'V' to the beginning of the model number
Single phase standard; three phase available as an option. Add "-3" to the end of model number.

Mild Steel

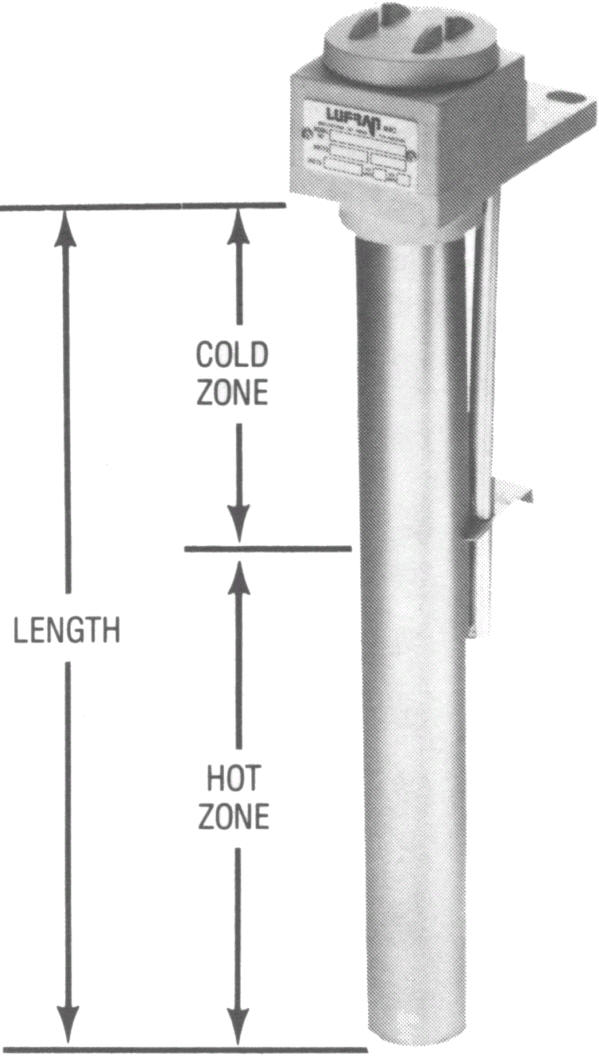

Part #	Watts	Volts	Lgth. in.	Hot Zone in.	Cold Zone in.
MS-1111	1000	120	11	6	5
MS-1211	1000	240	11	6	5
MS-2117	2000	120	17	10	7
MS-2217	2000	240	17	10	7
MS-2417	2000	480	17	10	7
MS-3223	3000	240	23	16	7
MS-3423	3000	480	23	16	7
MS-4229	4000	240	29	20	9
MS-4429	4000	480	29	20	9
MS-5235	5000	240	35	25	10
MS-5435	5000	480	35	25	10
MS-6240	6000	240	40	30	10
MS-6440	6000	480	40	30	10
MS-8247	8000	240	47	37	10
MS-8447	8000	480	47	37	10
MS-9254	9000	240	54	44	10
MS-9454	9000	480	54	44	10
MS-10259	10000	240	59	49	10
MS-10459	10000	480	59	49	10
MS-12268	12000	240	68	58	10
MS-12468	12000	480	68	58	10

304 Stainless
Part #	Watts	Volts	Lgth. in.	Hot Zone in.	Cold Zone in.
S4-1111	1000	120	11	6	5
S4-1211	1000	240	11	6	5
S4-2117	2000	120	17	10	7
S4-2217	2000	240	17	10	7
S4-2417	2000	480	17	10	7
S4-3223	3000	240	23	16	7
S4-3423	3000	480	23	16	7
S4-4229	4000	240	29	20	9
S4-4429	4000	480	29	20	9
S4-5235	5000	240	35	25	10
S4-5435	5000	480	35	25	10
S4-6240	6000	240	40	30	10
S4-6440	6000	480	40	30	10
S4-8247	8000	240	47	37	10
S4-8447	8000	480	47	37	10
S4-9254	9000	240	54	44	10
S4-9454	9000	480	54	44	10
S4-10259	10000	240	59	49	10
S4-10459	10000	480	59	49	10
S4-12268	12000	240	68	58	10
S4-12468	12000	480	68	58	10

316 Stainless
Part #	Watts	Volts	Lgth. in.	Hot Zone in.	Cold Zone in.
S6-1111	1000	120	11	6	5
S6-1211	1000	240	11	6	5
S6-2117	2000	120	17	10	7
S6-2217	2000	240	17	10	7
S6-2417	2000	480	17	10	7
S6-3223	3000	240	23	16	7
S6-3423	3000	480	23	16	7
S6-4229	4000	240	29	20	9
S6-4429	4000	480	29	20	9
S6-5235	5000	240	35	25	10
S6-5435	5000	480	35	25	10
S6-6240	6000	240	40	30	10
S6-6440	6000	480	40	30	10
S6-8247	8000	240	47	37	10
S6-8447	8000	480	47	37	10
S6-9254	9000	240	54	44	10
S6-9454	9000	480	54	44	10
S6-10259	10000	240	59	49	10
S6-10459	10000	480	59	49	10
S6-12268	12000	240	68	58	10
S6-12468	12000	480	68	58	10

Titanium
Part #	Watts	Volts	Lgth. in.	Hot Zone in.	Cold Zone in.
Tl-1111	1000	120	11	6	5
Tl-1211	1000	240	11	6	5
Tl-2117	2000	120	17	10	7
Tl-2217	2000	240	17	10	7
Tl-2417	2000	480	17	10	7
Tl-3223	3000	240	23	16	7
Tl-3423	3000	480	23	16	7
Tl-4229	4000	240	29	20	9
Tl-4429	4000	480	29	20	9
Tl-5235	5000	240	35	25	10
Tl-5435	5000	480	35	25	10
Tl-6240	6000	240	40	30	10
Tl-6440	6000	480	40	30	10
Tl-8247	8000	240	47	37	10
Tl-8447	8000	480	47	37	10
Tl-9254	9000	240	54	44	10
Tl-9454	9000	480	54	44	10
Tl-10259	10000	240	59	49	10
Tl-10459	10000	480	59	49	10
Tl-12268	12000	240	68	58	10
Tl-12468	12000	480	68	58	10
