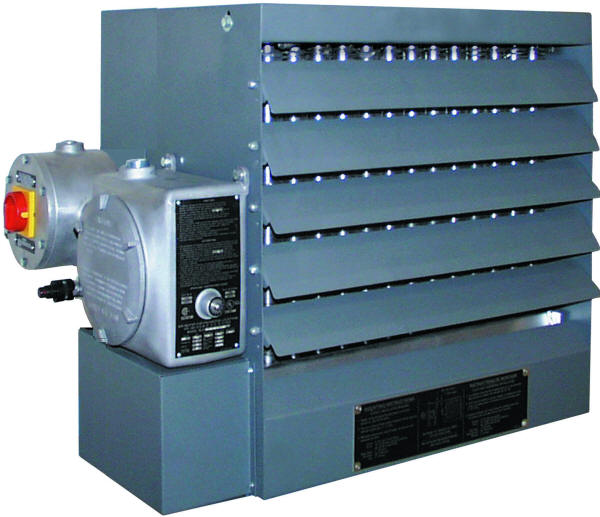

Fostoria Type HLA Hazardous Location
Unit Heaters
Click here for a larger image
We are an authorized distributor for Fostoria
Industries, a manufacturer of infrared heating
systems.
Suspended Fan-Forced Unit Heaters are for Class I, Group D, Division I &
II, and Class II, Groups E, F and G, Division I & II.
Choose from 30 SKU's of fan forced, suspended
unit heaters ranging in size from 3 to 25KW at
208 to 600 volt. They're designed for rugged
industrial applications in hazardous locations
where the possibility of explosion or fire exists
due to flammable gases, vapors, powdered
metals or dusts.
Click here for a larger image
|
UL Listed |
|
|
|
|
|
|
Contact Factory for Lead-Time. |
|
MODEL |
ITEM |
CABINET SIZE |
|
|
|
|
LINE |
|
NO. |
CODE |
H x W x D (in.) |
KW |
BTU |
VOLTS |
PHASE |
AMPS |
|
HLA12-208160-3.0-24 |
07343501 |
17-3/4 x 22-3/8 x 20-5/8 |
3.0 |
10,239 |
208 |
1 |
16.3 |
|
HLA12-208360-3.0-24 |
07340001 |
|
|
208 |
3 |
9.8 |
|
HLA12-240160-3.0-24 |
07340101 |
|
|
240 |
1 |
14.8 |
|
HLA12-240360-3.0-24 |
07340201 |
|
|
240 |
3 |
8.6 |
|
HLA12-480360-3.0-24 |
07340301 |
|
|
480 |
3 |
4.3 |
|
HLA12-600360-3.0-24 |
07340401 |
|
|
600 |
3 |
3.5 |
|
HLA12-208160-5.0-24 |
07343601 |
17-3/4 x 22-3/8 x 20-5/8 |
5.0 |
17,065 |
208 |
1 |
26.0 |
|
HLA12-208360-5.0-24 |
07340501 |
|
|
208 |
3 |
15.4 |
|
HLA12-240160-5.0-24 |
07340601 |
|
|
240 |
1 |
23.1 |
|
HLA12-240360-5.0-24 |
07340701 |
|
|
240 |
3 |
13.4 |
|
HLA12-480360-5.0-24 |
07340801 |
|
|
480 |
3 |
6.7 |
|
HLA12-600360-5.0-24 |
07340901 |
|
|
600 |
3 |
5.4 |
|
HLA12-208160-7.5-24 |
07343701 |
17-3/4 x 22-3/8 x 20-5/8 |
7.5 |
25,598 |
208 |
1 |
38.0 |
|
HLA12-208360-7.5-24 |
07341001 |
|
|
208 |
3 |
22.3 |
|
HLA12-240160-7.5-24 |
07341101 |
|
|
240 |
1 |
33.6 |
|
HLA12-240360-7.5-24 |
07341201 |
|
|
240 |
3 |
19.4 |
|
HLA12-480360-7.5-24 |
07341301 |
|
|
480 |
3 |
9.7 |
|
HLA12-600360-7.5-24 |
07341401 |
|
|
600 |
3 |
7.8 |
|
HLA16-208360-10.0-24 |
07341501 |
20-3/4 x 26-3/4 x 21-5/8 |
10.0 |
34,130 |
208 |
3 |
29.3 |
|
HLA16-240160-10.0-24 |
07341601 |
|
|
240 |
1 |
44.0 |
|
HLA16-240360-10.0-24 |
07341701 |
|
|
240 |
3 |
25.5 |
|
HLA16-480360-10.0-24 |
07341801 |
|
|
480 |
3 |
12.7 |
|
HLA16-600360-10.0-24 |
07341901 |
|
|
600 |
3 |
10.2 |
|
HLA20-208360-15.0-24 |
07342001 |
24-3/4 x 30-3/8 x 22-1/2 |
15.0 |
51,195 |
208 |
3 |
43.5 |
|
HLA20-240360-15.0-24 |
07342101 |
|
|
240 |
3 |
38.1 |
|
HLA20-480360-15.0-24 |
07342201 |
|
|
480 |
3 |
19.0 |
|
HLA20-600360-15.0-24 |
07342301 |
|
|
600 |
3 |
15.2 |
|
HLA20-480360-20.0-24 |
07342401 |
24-3/4 x 30-3/8 x 22-1/2 |
20.0 |
68,260 |
480 |
3 |
25.1 |
|
HLA20-600360-20.0-24 |
07342501 |
|
|
600 |
3 |
20.0 |
|
HLA20-480360-25.0-24 |
07342601 |
24-3/4 x 30-3/8 x 22-1/2 |
25.0 |
85,325 |
480 |
3 |
31.0 |
|
HLA20-600360-25.0-24 |
07342701 |
|
|
600 |
3 |
24.9 |
|
1. |
208 & 240 volt control available on 208 & 240 volt
models only. Delete "24" from Model No. then add 208 or 240,
plus |
|
2. |
"T" option (built-in stat) will operate on all
voltages. |
|
|
|
3. |
Heaters are Made - To - Order. Consult factory for
delivery date. Heaters will NOT ship via UPS. |
|
Built - in Control Options |
|
|
|
|
|
|
ITEM CODE |
|
DESCRIPTION |
|
|
|
|
|
|
T |
|
Built-in Thermostat with 45-90 degree F range. Add
"T" suffix to model no. above |
|
120V |
|
Control Transformer with Primary Fusing. Delete
"24" suffix & add "120V" |
|
Remote Mounted Hazardous Location Thermostat |
|
|
|
MODEL NO. |
ITEM CODE |
DESCRIPTION |
|
|
|
|
|
|
EP-ETD-8D |
5021201 |
120-277V DPST, 22 amp max. - 50-90 degree F range |
|
|
|
Class 1, Groups C & D - Class 2, Groups E, F & G |
|
Mounting Kits |
|
|
|
|
|
|
MODEL NO. |
ITEM CODE |
DESCRIPTION |
|
|
|
|
|
|
HLPM37 |
07342801 |
Pipe Mounting Kit for 3.0 - 7.5 KW Models |
|
|
HLPM10 |
07342901 |
Pipe Mounting Kit for 10.0 KW Models |
|
|
|
HLPM1525 |
07343001 |
Pipe Mounting Kit for 15.0 - 25.0 KW Models |
|
|
HLHM |
07343101 |
Hanging Mounting Kit for All Models |
|
|
|
HLWM37 |
07343201 |
Wall Mounting Kit for 3.0 - 7.5 KW Models |
|
|
HLWM10 |
07343301 |
Wall Mounting Kit for 10.0 KW Models |
|
|
|
HLWM1525 |
07343401 |
Wall Mounting Kit for 15.0 - 25.0 KW Models |
|
|
