Avatar Instruments C1Z SSR Power Controllers

We are a distributor for Avatar Instruments

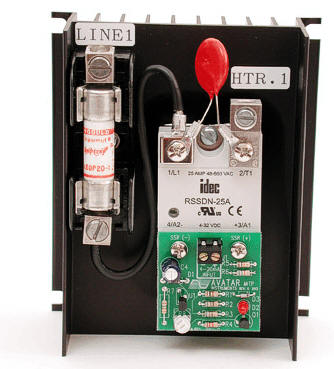

Avatar C1Z SSR Power Control

Low cost SSR Zero Voltage switched power controllers

The Avatar C1Z Series units are Zero Voltage switched, single or three phase fused power controls used to replace mercury or mechanical relays. there are no parts to mechanically wear out: Millions of operations can occur without failure. High/fast duty cycle will not damage the C1Z series controllers. No arcing problems like with mechanical relays. Dust and Dirt will not cause long term reliability issues.

FEATURES

• Full rated output at 50 degrees C ambient temperatures

• Economical Zero Voltage switching SSR's

• 15 and 25 Amp packages

• I2T Fuses mounted on heatsink

• MOV protection & lugs standard

• No transformers to wire up

• Standard Control Signal 4-20 mA compliance voltage 6 VDC Input & Voltage Limit Adjustment

• 3-32 VDC and 120V input signal available

• Single and three phase, 1, 2 & 3 leg packages

DIMENSIONS
Figures in inches.

All CZ Series controls for use with resistive heaters only. Not intended for driving transformer primaries or high inrush loads.

Manual, wiring diagrams, dimensional drawings

You must have the free Adobe Acrobat Reader plug-in.

Used with permission of and copyright Avatar Instruments
