Qmark Automotive Air Circulator

We are an authorized distributor for Qmark®, a division of Marley Engineered Products.

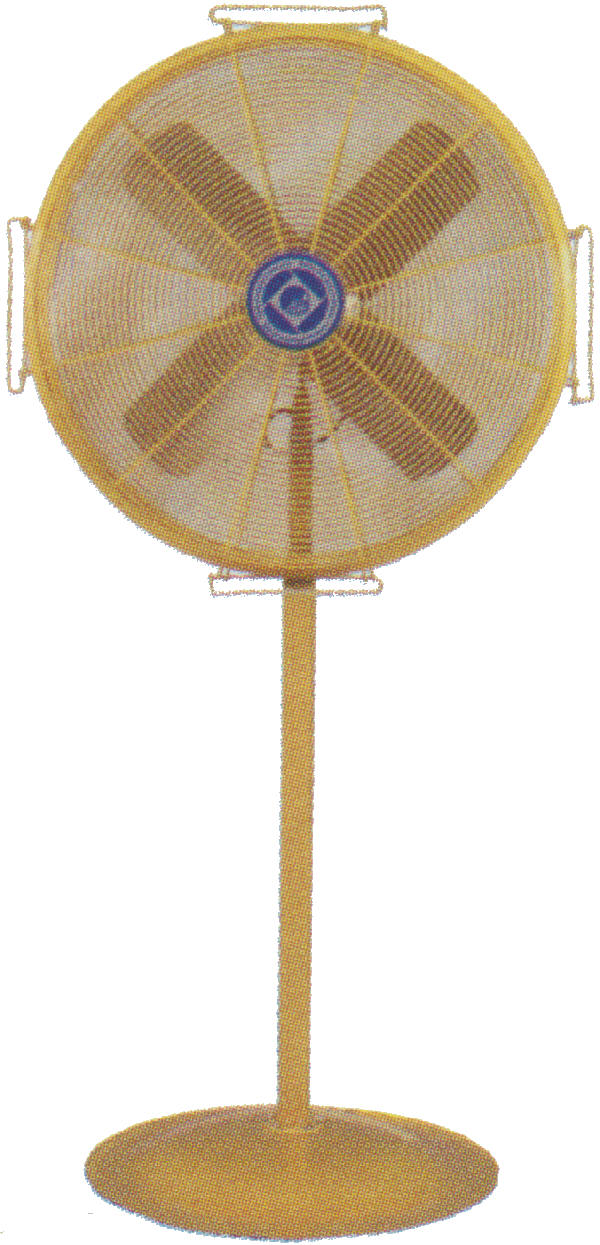

AF30H fan head shown with optional 2430PB-Y pole and base.

• Meets Federal OSHA standards, UL listed.

• Safety yellow motor, guards and mounts.

• Factory assembled motor - blade - guard assembly to ease final assembly.

• 5" wheels on pedestal base.

• Available with 3', 6' and 12' drop cord extension.

• 1/3 HP, 1Ø, 2-speed, 115 volt, totally enclosed, permanently lubricated permanent split capacitor, ball bearing motor.

• 2-speed, drop-cord switch.

• 12' long 3 conductor SJT type cord.

• Coated steel blades.

• 3-1/2" oversized double locking, yellow powder coated guards.

• Fan head tilt: Pedestal 10º down or 28º up; Wall mount 40º down or 0º up.

• Column adjustment: 48-7/8" - 66" with locking collar.

• 27" diameter steel dome pedestal base.

• Column/base connection: 5 carriage bolts.

•

NOTE: AF30H fan head assembly does not meet UPS shipping criteria.

Qmark Assembly and Installation Instructions Qmark Information Bulletin
