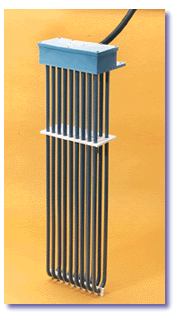

Lufran 9TFM Series Teflon* Immersion Heaters

We are a distributor for Lufran, Inc.

Available in 2 KW thru 18 KW.
Nominal 10 watts/sq. inch.
Standard 240V and 480V, other voltages available.
3 phase standard. Single phase available as an option. Add "-1" to the end of model number.
Rugged construction prevents floating.
Flame retardant, vapor tight, Polypropylene terminal box.
Stainless steel elements with cladding of TEFLON^®*.
Internal metal ground.
3 ft. flexible PVC liquid tight conduit. Standard heater has 3' leads and conduit. Additional lengths available; add -X plus length wanted in inches to the end of the model number.
Thermal Fuse Overtemp protection standard (Field replaceable) with optional bimetal thermostat (FQ2M).
UL and C-UL approved.
Use of liquid level controls is strongly recommended.

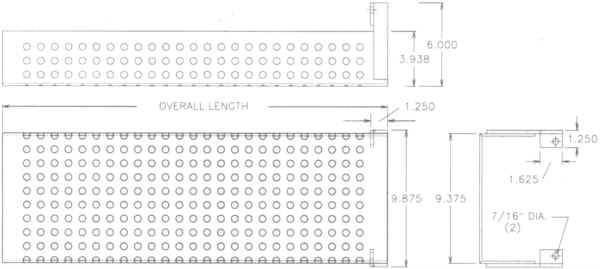

Standard guard is Polypropylene, other materials available.

Head & Guard:

Complete Heater With Guard:

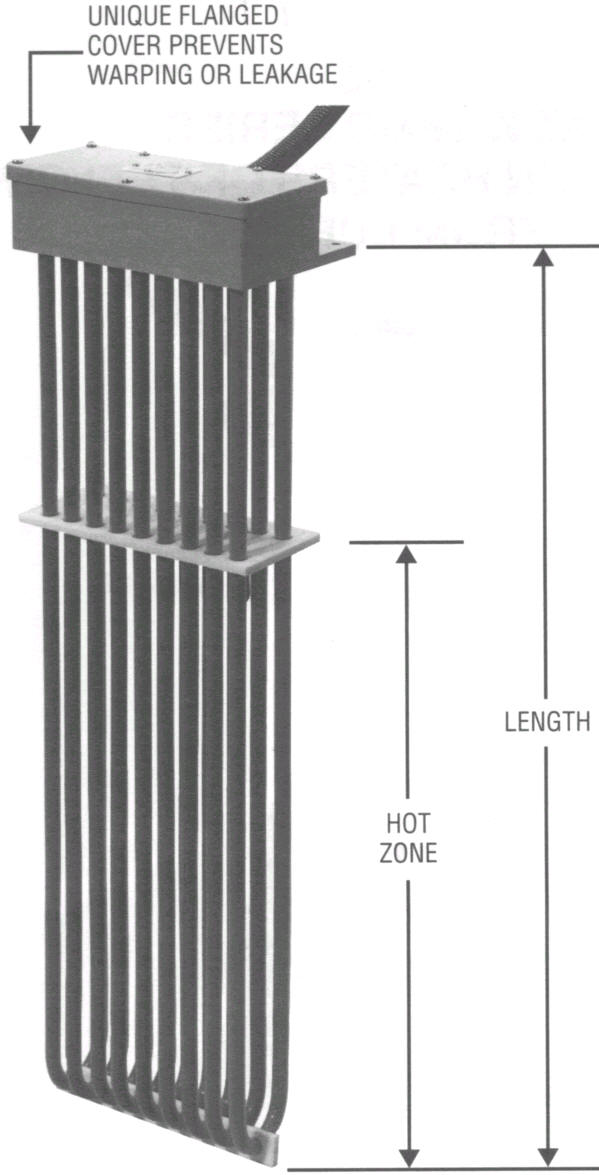

Part #	Watts	Volts	Lgth. in.	Hot Zone in.	Cold Zone in.
9TFM-3217C	3000	240	17	9	8
9TFM-3417C	3000	480	17	9	8
9TFM-45223C	4500	240	23	15	8
9TFM-45423C	4500	480	23	15	8
9TFM-6229C	6000	240	29	21	8
9TFM-6429C	6000	480	29	21	8
9TFM-9235C	9000	240	35	28	7
9TFM-9435C	9000	480	35	28	7
9TFM-12247C	12000	240	47	38	9
9TFM-12447C	12000	480	47	38	9
9TFM-15259C	15000	240	59	47	12
9TFM-15459C	15000	480	59	47	12
9TFM-18268C	18000	240	68	55	13
9TFM-18468C	18000	480	68	55	13

Element Only No Guard:
9TFM-3217E	3000	240	17	9	8
9TFM-3417E	3000	480	17	9	8
9TFM-45223E	4500	240	23	15	8
9TFM-45423E	4500	480	23	15	8
9TFM-6229E	6000	240	29	21	8
9TFM-6429E	6000	480	29	21	8
9TFM-9235E	9000	240	35	28	7
9TFM-9435E	9000	480	35	28	7
9TFM-12247E	12000	240	47	38	9
9TFM-12447E	12000	480	47	38	9
9TFM-15259E	15000	240	59	47	12
9TFM-15459E	15000	480	59	47	12
9TFM-18268E	18000	240	68	55	13
9TFM-18468E	18000	480	68	55	13

*Reg. U.S. Pat Office for Dupont's fluorocarbon resins.
