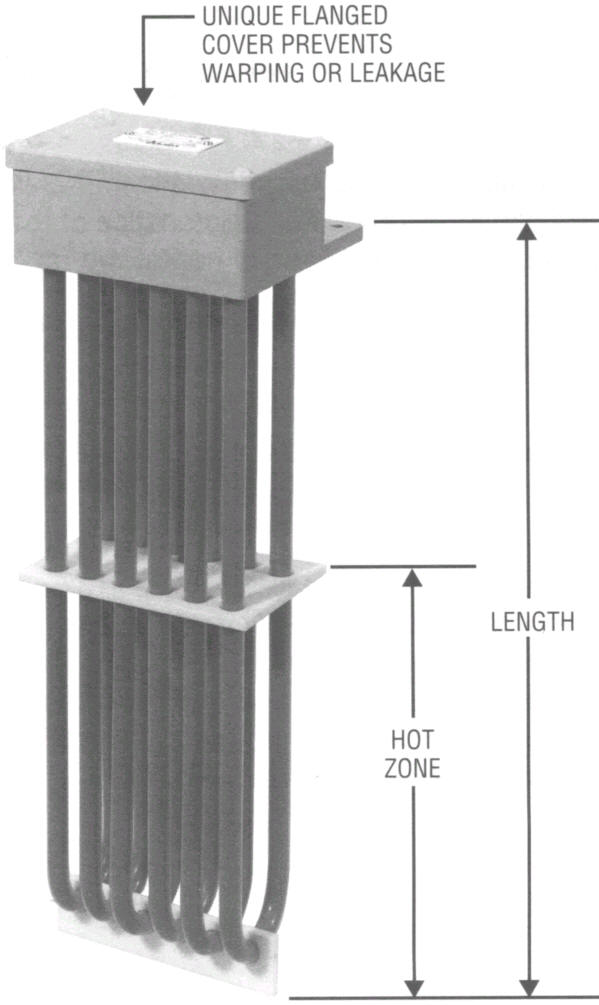

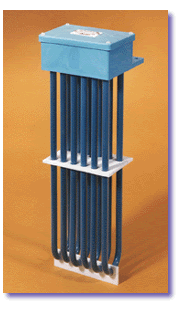

Lufran 6TFM Series Teflon Immersion Heaters

5880 Alpine Ave. NW, Comstock Park, MI 49321 USA - Tel 616-784-1121 - 800-442-2581 - Fax 616-784-7775 - E-mail sales@heatersplus.com

When you are ready to order you will be taken to our secure online ordering website: www.MorElectricHeating.com.
Visit our other websites for home, office and factory infrared heating, fans and air conditioning: www.InfraredHeaters.com and www.Fans-Plus.com.

view cart

Lufran 6TFM Series Teflon Immersion Heaters

We are a distributor for Lufran, Inc.

Available in 2 KW thru 12 KW.
Nominal 10 watts/sq. inch.
Standard 240V and 480V, other voltages available.
3 phase standard. Single phase available as an option. Add "-1" to the end of model number.
Rugged construction prevents floating.
Flame retardant, vapor tight, Polypropylene terminal box.
Stainless steel elements with cladding of TEFLON^®.
Internal metal ground.
3 ft. flexible PVC liquid tight conduit.
Thermal Fuse Overtemp protection standard (Field replaceable) with optional bimetal thermostat (FQ2M).
UL and C-UL approved.
Use of liquid level controls is strongly recommended.
Standard guard is Polypropylene, other materials available

Head & Guard:

Complete Heater With Guard:
Part #	Watts	Volts	Lgth. in.	Hot Zone in.	Cold Zone in.
6TFM-2117C	2000	120	17	9	8
6TFM-2217C	2000	240	17	9	8
6TFM-2417C	2000	480	17	9	8
6TFM-3223C	3000	240	23	15	8
6TFM-3423C	3000	480	23	15	8
6TFM-4229C	4000	240	29	21	8
6TFM-4429C	4000	480	29	21	8
6TFM-6235C	6000	240	35	28	7
6TFM-6435C	6000	480	35	28	7
6TFM-8247C	8000	240	47	38	9
6TFM-8447C	8000	480	47	38	9
6TFM-10259C	10000	240	59	47	12
6TFM-10459C	10000	480	59	47	12
6TFM-12268C	12000	240	68	55	13
6TFM-12468C	12000	480	68	55	13

Element Only No Guard:
6TFM-2117E	2000	120	17	9	8
6TFM-2217E	2000	240	17	9	8
6TFM-2417E	2000	480	17	9	8
6TFM-3223E	3000	240	23	15	8
6TFM-3423E	3000	480	23	15	8
6TFM-4229E	4000	240	29	21	8
6TFM-4429E	4000	480	29	21	8
6TFM-6235E	6000	240	35	28	7
6TFM-6435E	6000	480	35	28	7
6TFM-8247E	8000	240	47	38	9
6TFM-8447E	8000	480	47	38	9
6TFM-10259E	10000	240	59	47	12
6TFM-10459E	10000	480	59	47	12
6TFM-12268E	12000	240	68	55	13
6TFM-12468E	12000	480	68	55	13

*Reg. U.S. Patent Office for DuPont's fluorocarbon resins.
