Lufran 3QZM Series Triple Tube Quartz Immersion Heaters

We are a distributor for Lufran, Inc.

• Grounded Metal Heating Element is standard on all Quartz Heaters.
• Resettable Over-Temp System available as an option. (Preventer 2)
• Specially designed liquid tight cap prevents entry of liquids or vapors into heater.
• Standard heater has 36" liquid tight and acid resistant flex conduit and lead wires as standard. Additional lengths available; add -X plus length wanted in inches to the end of the model number.
• UL and C-UL approved.
• Special voltages available-consult factory.
• Use of liquid level controls is strongly recommended.
• Supplied with "One-Time" Thermal Fuse Preventer 1 Over-Temperature System as standard. Each single heater in triple tube configuration is supplied with its own thermal fuse for maximum protection. (Replacement Thermal Fuses for Quartz Heaters are Model No. FQ1.)
• Standard guard is polypropylene; special guard material available. Protective Guards made from PVDF available as an option.
• Single phase standard; three phase available as an option. Add "-3" to the end of model number.
• Consists of 3 elements, 3 tubes, and 1 guard. (Standard 3QZM is three single phase heaters to be wired single or three phase.  Three phase available as an option. Add "-3" to the end of model number.)

Element and tube shown separately

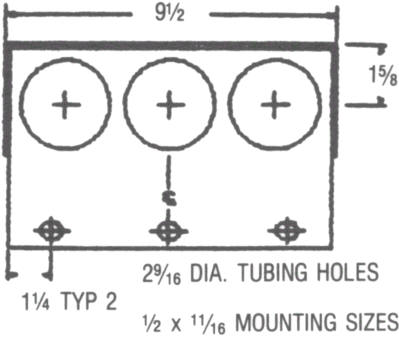

Guard:
