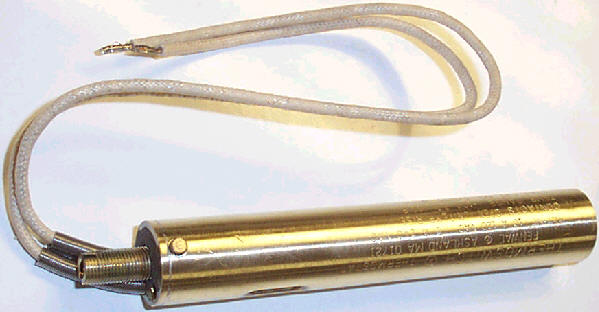

Fenwal 17000 Series
Cartridge Style Thermoswitch
01-017002-000 (Stainless Steel
Shell)
01-017000-000 (Brass Shell)
|
We are a distributor of Fenwal
|
|
FEATURES |
APPLICATIONS |
- Contacts open on temperature rise
- Fast Response - outer shell is the
active sensing member
- Close Control - substantially reduces
overshoot & undershoot
- Extreme Sensitivity - slow make &
break contacts, resolution 0.1F (0.05C)
- Vibration Resistance - best possible
control under difficult physical conditions
- Agency Approved - list of component
recognized by UL and CSA
- 8 to 10 inch lead wires
- Can be inserted into a .625"
reamed hole.
- Approximate weight is 2.5 ounces
- AC Current Rating: 10 amps on
120 volts. 5 amps on 240 volts
- DC Current Rating: Consult us
|
- Hydraulic Laminating Presses
- Livestock Watering Fountains
- Label Adhesive Applicators
- Paint Drying Equipment
- Typesetting Machines
- Air Conditioning Units
- Hot Stamp Printers
- Vending Machines
- Deep Fat Cookers
- Textile Platens
- Waffle Irons
|
Principle of Operation
The controller is a "strut and tube" type
thermostat comprised of 2 basic parts: the outer shell, made of high
expanding metal, and the strut assembly, made of low expanding metal.
A pair of electrical contacts is mounted and installed in the shell under
tension or compression. A net change in force is produced on the low
expanding strut assembly as the high expanding shell expands or contracts
with changing temperature. The temperature at which the contacts "make" or
"break" can be regulated by a temperature adjusting sleeve.
|
*Thermoswich and Fenwal are trademarks
and
KIDDE-FENWAL, INC.
|
and
. 90F
change per full turn of adjusting sleeve.
