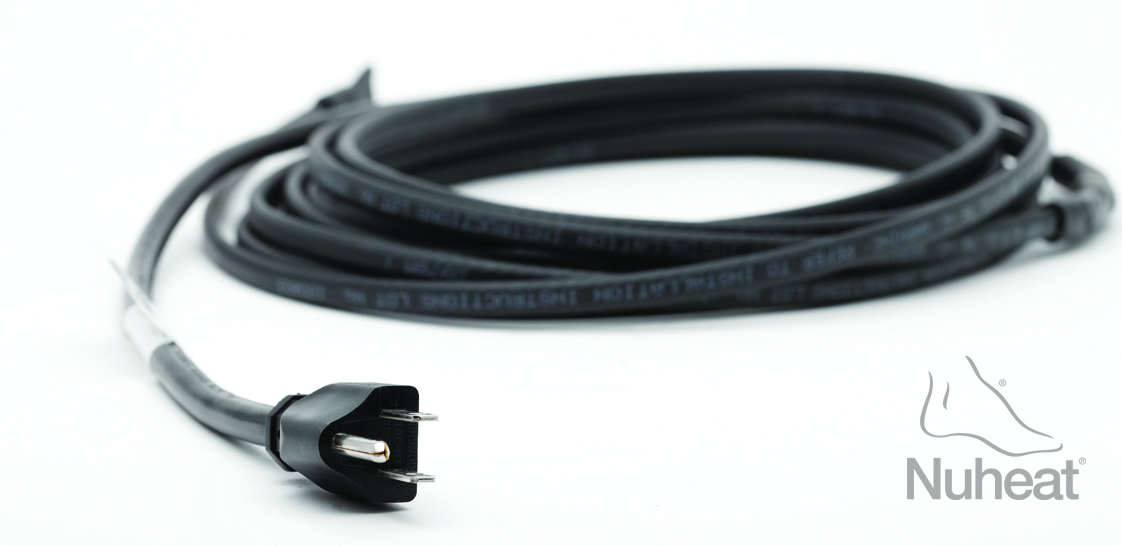

NuHeat Plug-In Self-Regulating Heating Cable for Pipes designed for residential and commercial pipe freeze protection applications.

Click here for a larger image

We are an authorized stocking distributor for NUHEAT Industries Ltd.

Links to other pipe heating cable:
EasyHeat PSR Pre-Terminated Self-Regulating Cable for pipes.
Chromalox Thermwire Pre-assembled Self-Regulating Freeze Protection Cable for Metal or Plastic Water Pipes. Ready for use up to 100 feet in length.
Wrap-On Pipe Heating Cable. Prevents frozen water pipes to –50ºF. Simply wrap on, insulate and plug in. For use on metal and rigid plastic pipes. A built-in thermostat turns the cable on at 38ºF.
EasyHeat AHB Constant Wattage Pre-Terminated Length Cable prevents pipes from freezing to -40° on 120 Volts AC suitable for use on plastic and metal water pipes
EASYHEAT ILH In-Line Inside the Pipe Heater freeze protection for water supply lines.
EASYHEAT Pipe Sentry FPC Series Pre-Terminated Self-Regulating Freeze Protection Heating Cable for Water Pipes
EASYHEAT SR Trace Self-Regulating Freeze Protection Cable
Danfoss PX-F Series Self-Regulating cut to length Pipe Freeze Protection Cable.

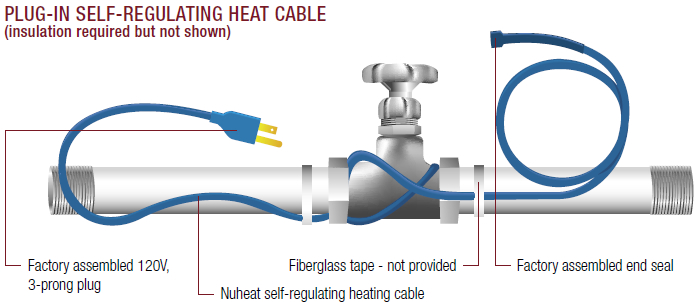

Factory assembled with a standard three-prong plug, each cable can simply connect to any grounded 120V receptacle. Installation is easy as the cable's self-regulating feature allows the heating cable to be overlapped across itself without risk of overheating and/or burnout.

• Designed for residential and commercial pipe freeze protection applications.
• Produces 8 watts per ft (@ 50°F) (on metal pipes)
• 120 Volts with plug and cord
• Simple plug-in feature allows for easy installation
• Cable can overlap across itself without risk of overheating and/or burnout for easy installation around pipes and pipe components
• Can be used on metal or plastic pipes up to 6 inches in diameter (based on 1" fiberglass insulation)
• CSA Certified to USA and Canadian safety standards.
• 3 Foot Cold Lead Length

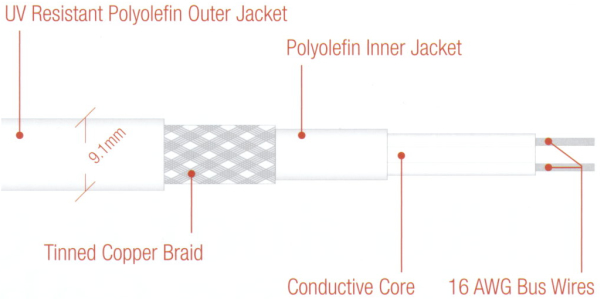

• CABLE DIMENSIONS: 0.36 inches x 0.22 inches (9.1mm x 5.6mm)
• MINIMUM BEND RADIUS: 1.18 inches (30mm)
• MAXIMUM EXPOSURE TEMP.: 150°F (66°C)
• WARRANTY: 3 years

GROUND-FAULT PROTECTION
Nuheat Industries and National Electrical Codes require 30-mA equipment ground-fault protection on each heating cable branch circuit to reduce the danger of fire caused by continuous electrical arcing resulting from improper installation or damage to the heating cable. Conventional circuit protection may not be suitable for preventing electrical arcing.

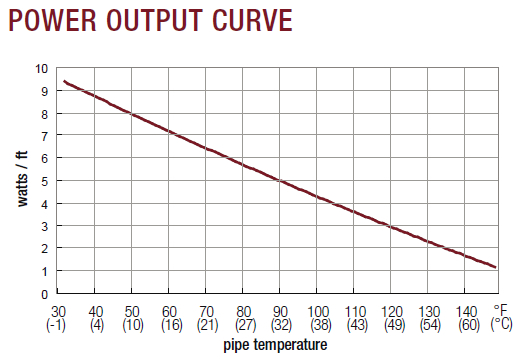

The Power Output Curve illustrates the relationship between wattage output and pipe temperature. As the pipe temperature rises, the heating cable uses less wattage and emits less heat.

	Wrap-On Pipe Insulation. Fiberglass Pipe Insulation available in 1/2-inch and 1-inch thick rolls of high tensile strength fiberglass and is ideal for insulating pipe heating cables and hot or cold water pipes. It reduces heat loss from hot water pipes.
	Fiberglass Cloth Tape. Fiberglass cloth tape roll with a pressure-sensitive adhesive backing. Fiberglass cloth tape roll with pressure-sensitive thermosetting silicone adhesive. 365° F (185°C) rated. 3/4" (1.9 cm) wide x 108 ft. (32.91 m) long roll.
	Aluminum Foil Tape. High temperature tape roll with a pressure-sensitive adhesive backing. 2" (5.08 cm) wide x 150 ft. (54.86 m) long roll, 200° F (93°C) rated.

Secure Online Ordering *Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method.  Your shipping cost will be displayed in your shopping cart.
Item ID	Catalog #	Description	Click "Select" below to see the price and our actual real-time quantity in stock
NUHEAT10205	9PK08W1-5	120 Volt - 8 Watts per Foot - 5 Foot Length
NUHEAT10206	9PK08W1-10	120 Volt - 8 Watts per Foot - 10 Foot Length
NUHEAT10207	9PK08W1-15	120 Volt - 8 Watts per Foot - 15 Foot Length
NUHEAT10208	9PK08W1-25	120 Volt - 8 Watts per Foot - 25 Foot Length
NUHEAT10209	9PK08W1-50	120 Volt - 8 Watts per Foot - 50 Foot Length
NUHEAT10210	9PK08W1-75	120 Volt - 8 Watts per Foot - 75 Foot Length
NUHEAT10211	9PK08W1-100	120 Volt - 8 Watts per Foot - 100 Foot Length
Optional Accessories:
WRAPON16503	16503	Standard 3-inch Wide Fiberglass
CHROM383355	AT-1	Roll of Aluminum Tape, 2" Wide x 150 ft Long
TAPE10004	SM431	3/4" Fiberglass Cloth Tape, 3/4" x 108 ft Long
