NUHEAT Floor-Warming System for Tile, Stone, Laminate and Engineered Wood Surfaces


We are an authorized stocking distributor for NUHEAT Industries Ltd.

Barefoot comfort for your home.  Throw away your slippers and enjoy the incomparable comfort of a warm tile floor with the NUHEAT floor-warming system!  Designed like an electric blanket for the sole purpose of heating ceramic tile and natural stone, this radiant heating system is one of the easiest and quickest to install.  This thin radiant electric heat mat is only 1/8” thick making it quick and easy to install directly between your tile and subfloor without significantly increasing the height of your floor.  There are over 60 different standard mat sizes that fit the majority of rooms and custom mats can also be made to fit areas with curves, angles and protruding fixtures.  NUHEAT is the easiest and quickest radiant floor heating system to install saving customers time and money.  This durable, high-tech floor-warming system offers a consistent distribution of heat across the floor.  NUHEAT is committed to ensuring that their product is the utmost in product quality, durability and safety.

“We have NUHEAT in our entrance hall, ski room and bathrooms in our Whistler, BC, Canada home. It’s wonderful to come in from the cold, take off our boots and step onto a warm floor. Our footwear is always warm and dry with NUHEAT – a real treat when putting on ski and snowboard boots in the morning! We find that our NUHEAT heated floors really add coziness and ambience to our home.”  Adair & Margaret Green

How it works

What are the basics of NUHEAT?

  • NUHEAT is designed for the sole purpose of heating ceramic tile and natural stone floors

  • NUHEAT is a thin radiant electric heat mat with heating wires imbedded in the fabric

  • NUHEAT is designed to fit any room – regular square or rectangular rooms can be covered with standard mats (off-the-shelf) and custom mats can be made for spaces with angles, curves and protruding fixtures

  • A professional tile installer will bond NUHEAT to your subfloor with thinset before laying your tile

  • A certified electrician will connect the NUHEAT system to an independent circuit* in your panel box

  • A programmable floor-sensing thermostat is typically used to control NUHEAT – this lets you set your floor temperature to your own personal comfort level

  • NUHEAT offers your installer full service including technical help, design assistance and control recommendations.

  • Installation Instructions

 *Note – Independent circuit means that no appliances or electrical devices can be connected to a circuit that NUHEAT is on.

What is Radiant Heating?

NUHEAT produces radiant heat – the most comfortable and energy efficient form of heating.  To better understand how radiant heat works, picture yourself working outside in the shade on a cool day.  Taking a break, you walk out of the shade and into the sunlight and soak up some rays.  You begin to warm up even though the air temperature around you is the same as when you were in the shade.  The heat you feel from the sun is radiant heat.  This imaginary description illustrates how you can be warm and comfortable even when the air temperature is cooler.  The same applies to NUHEAT – you can turn your thermostat down to a lower setting and still feel comfortable with a warm tile floor under your feet.  Another benefit of radiant heating is that it provides a constant temperature without the heating and cooling swings inherent with forced-air systems.

Safety

The NUHEAT electric floor warming system is designed to ensure your safety!  In terms of structural measures, every wire within the NUHEAT system is enclosed in two layers of insulation, the standard plastic insulation that all wires are required to have and an additional stainless steel braid.  The braid works to protect the electric floor heat from being penetrated by sharp objects and acts as the ground wire in the event of damage.

NUHEAT also offers a ground fault circuit interrupter (GFCI) required by electric code.  This safety device terminates the electrical power to the radiant heat system immediately in the event of damage or a severe flood.

CSA Certified   UL Listed.  For information on the safety tests that NUHEAT passed through the Underwriter’s Laboratory (UL) in the USA and the Canadian Standards Association (CSA), click here.

SPECIFICATION DATA

Note: NUHEAT cannot be installed under ‘European Showers’.

Warranty

NUHEAT offers a 25-year warranty on all radiant floor heating mats. To download a PDF of the NUHEAT warranty card, click here. (Note - A PDF will require approximately 2-5 minutes to download)

Please note the following warranty conditions:

  • NUHEAT requires that all "first-time" installers call Head Office at 1-800-778-9276 before starting the installation to ensure that the radiant heat mats will be installed in the proper manner

  • NUHEAT must be on a dedicated circuit and protected by a ground fault circuit interrupter (GFCI)

  • NUHEAT must be tested (resistance & insulation) with a digital multimeter before, during and after the installation

  • NUHEAT must be installed and connected according to the specifications set out in the US National Electric Code, Part 1 of the Canadian Electric Code and all local/municipal electrical regulations and standards

  • A certified electrician familiar with residential/commercial electrical installation codes and practices must connect NUHEAT to power.

Frequently Asked Questions

What is NUHEAT?

NUHEAT is an electric floor warming system, much like a durable electric blanket, designed to bring soothing warmth to ceramic tile and natural stone floors.  This thin mat system is only 1/8” thick and easily laid between the subfloor and tile making it ideal for both renovation and new construction projects.  Mats come in over sixty standard sizes and custom size mats are also available for rooms with curves and angles.

How much does NUHEAT cost to operate?

NUHEAT uses only 12 watts per square foot at full power producing a maximum temperature of 80-90°F or 27-32°C.  Couple this with a NUHEAT energy efficient control and your monthly cost is minimal, often the same cost as the lights in the same room.

What are the control/thermostat choices for NUHEAT?

The most popular control used with the NUHEAT radiant heating system is the Programmable Floor-sensing Thermostat.  This control allows the homeowner to set the floor temperature to their own comfort level and program the days and times that they want NUHEAT turned on or off.  Energy savings and comfort are fully optimized with this state-of-the-art programmable thermostat.

How easy is the NUHEAT installation?

NUHEAT is very simple to install.  A tile setter simply lays the NUHEAT “blanket” directly between the subfloor and tile.  The same materials used for laying tile are used for bonding the electric radiant heat mats to your subfloor.  A certified electrician can complete the connection between NUHEAT and your electrical circuit.  No time-consuming calculations, labor or additional materials are required.  Installation Instructions

How much does NUHEAT cost to purchase?

Price depends completely on the size and complexity of the area that you plan to heat.  For example, a room with curved or angled walls may require special custom mats which cost more than the standard (stock) mats.

Where can I install NUHEAT?

NUHEAT radiant heat mats may be installed under any ceramic tile, marble, granite or natural stone floor application to eliminate the cold chill.

Standard Mat Sizes

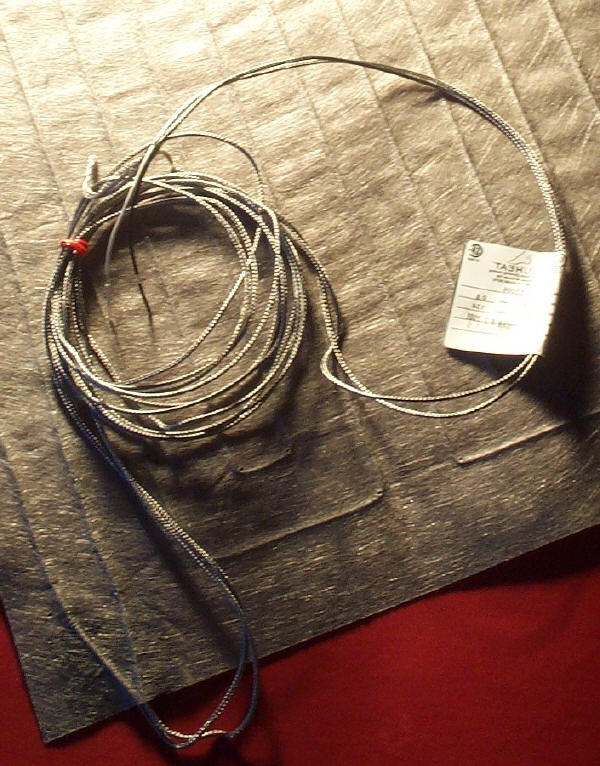

NUHEAT heating mats are composed of electrical resistance wires, evenly spaced and enclosed in a thin, durable fabric.

Designed like an electric blanket, mats can be laid directly underneath tile, marble or natural stone flooring. NUHEAT manufactures standard square and rectangular mat sizes and also designs custom sizes for areas with curves and angles. Contact us for assistance with floor coverage.

The installation of a Class A, non-receptacle, ground fault circuit interrupter (GFCI) is required (included with the programmable thermostats).  A full range of controls are available - see below for details.

Standard connecting wire length is 10 feet - additional length is available as spliced on Extra Lead Length. For 110 or 220 Volt - catalog NHL Extra - Adder for each extra foot of lead wire to be added to appropriate Mat or Mats when shipped from Nuheat.  May add 1 week to the delivery time.  In your shopping basket, select the quantity of feet you need in total.  Indicate the lengths of extra wire desired on each mat you order in the order notes field.

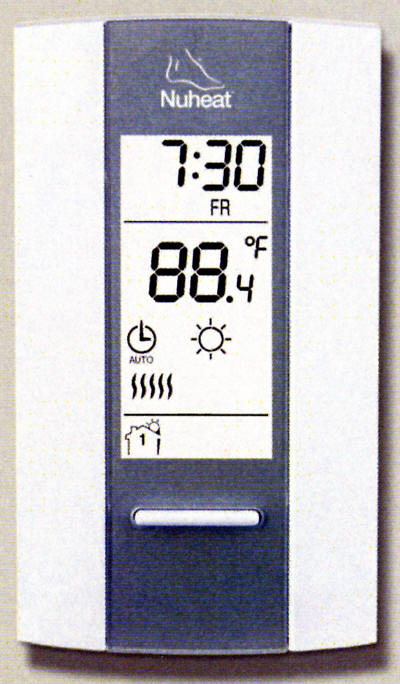

Programmable Floor-Sensing Thermostat (NTG5110 and NTG5220)

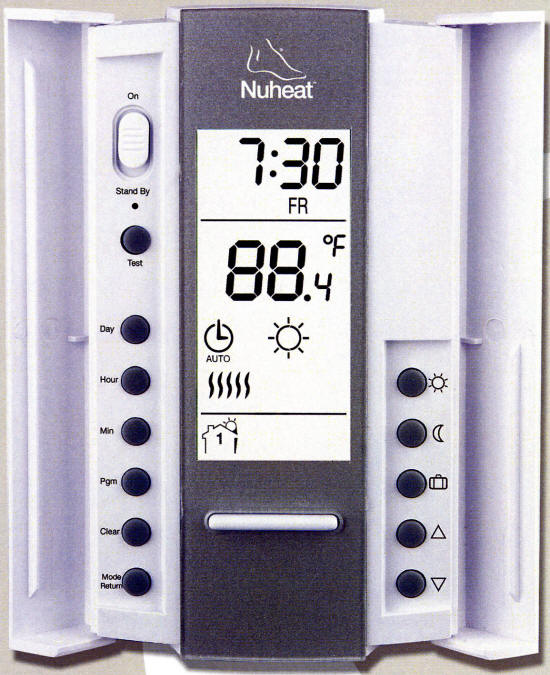

With doors open

  • Sleek new design

  • On/Off switch

  • ENERGY STAR® Qualified

  • Pre-programmed settings; including Early Start function

  • New backlit display

  • Quiet operation

  • Available in 110V (NTG5110)  & 220V (NTG5220)

  • Rated to 15 amps (1,800 watts.)

  • Interchangeable with FTGF1P & FTGF2P (Discontinued)

Energy Star

Download the NTG5110 manual
Download the NTG5220 manual

Programmable Floor-Sensing Thermostat for Laminate & Engineered Wood (NTG5110L and NTG5220L)

MatComfort 82F
Specifications
  • Programmable Floor Sensing Thermostat for laminate & engineered wood surfaces
  • Programmable 7 day settings
  • ENERGY STAR qualified
  • Pre-Programmed settings to maximize the performance of your Nuheat electric floor mats
  • Backlit display
  • On/Off switch
  • Available in 110 & 220 Volt formats
  • Rated to 15 amps (1,800 watts.)
Manufacturers of laminate & engineered wood recommend that their products should only be warmed up to 84° Fahrenheit. The MatComfort 82F is regulated to only warm floors up to 82° Fahrenheit. Nuheat ensures that your investment in a floor warming system is absolutely risk free! Nuheat MatSense Technology protects your investment in a radiant floor heating system. We are the only radiant floor heating system that offers a technologically advanced thermostat that can provide risk free protection.

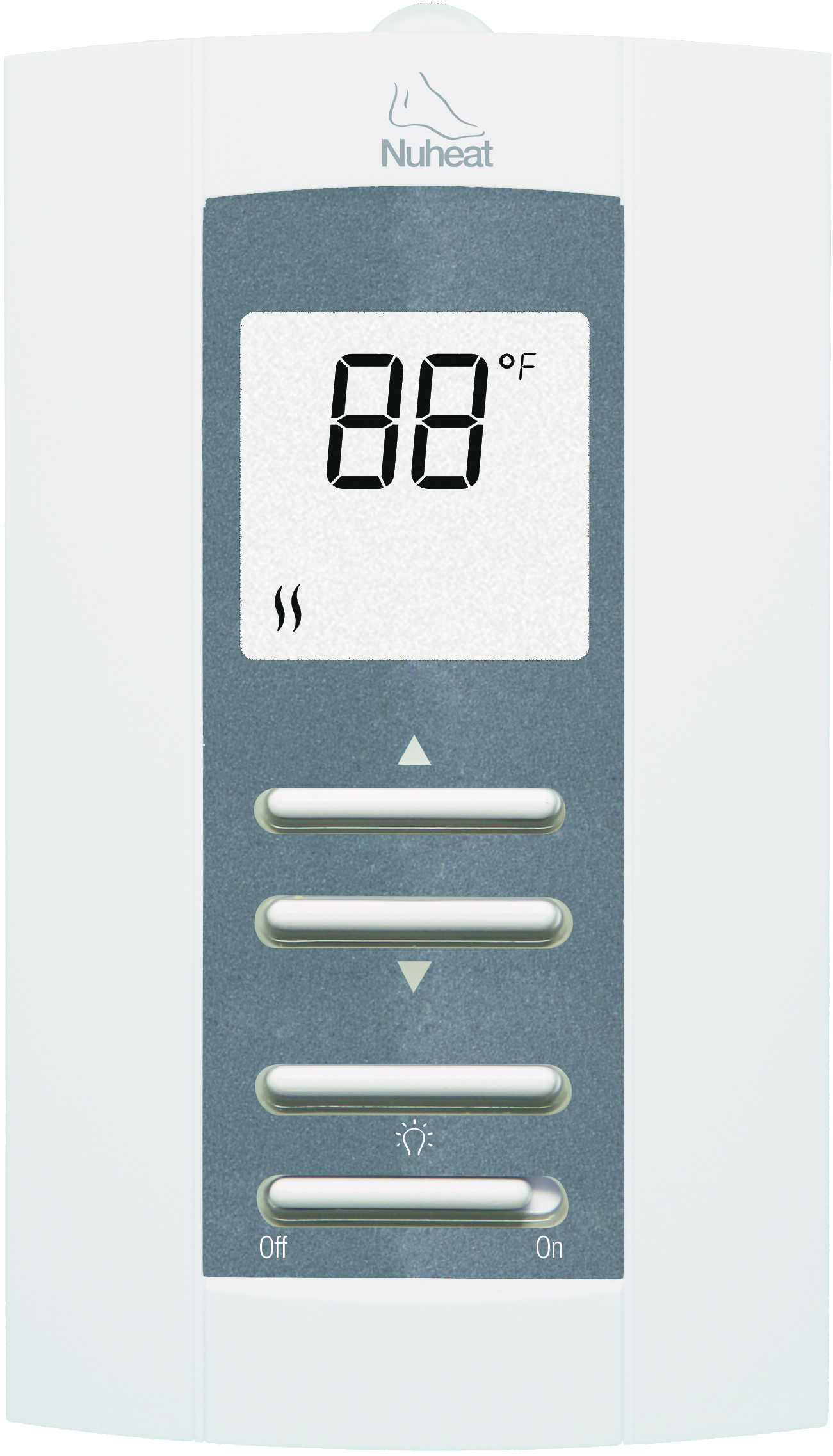

Tile & Stone Floor Heating Regulator (NDG6110 & NDG6220 )

MatComfort Regulator. The MatComfort Regulator offers homeowners control over their Nuheat floor warming system.
Specifications
  • Heating Indicator Light
  • Power Selection Dial
  • On / Off switch
  • Available in 110 & 220 Volt formats
  • An alternative to precision control and programmable features for your Nuheat radiant floor heating system

Nuheat MatSense Pro Electrical Fault Indicator. (Optional)

The MatSense Pro Ensures a Correct Nuheat Installation... every time!

The Nuheat MatSense Pro lets you see and hear if the Nuheat mat has been damaged during installation. Electrical Fault Indicator ensures a correct Nuheat installation. Hear and see if the mat has been damaged during installation

The MatSense Pro monitors the hot, neutral and ground wires. When the sensor finds an open circuit in the mat, the MatSense Pro sets off a distinct alarm. The MatSense Pro also detects short circuits in the mats and alerts the installer to the problem. Simply connect the conductor wires and ground to the MatSense Pro and turn it on.

Using the MatSense Pro does not replace the need to test the continuity of the Nuheat Mats prior, during and after the installation.
Secure Online Ordering
Delivery time for the following products: Some mats are typically in stock at Mor Electric Heating and are processed/shipped in 1 working day or less.  Mats not in stock will direct ship from Nuheat in 1-2 working days or less if you select Next Day Air or 2nd Day Air.  If you select Ground or 3rd Day they will ship from Mor Electric Heating in 6-8 working days or less.  The transit time to you depends on your selected UPS/FedEx shipping method, the cost of which will be displayed in your shopping cart.

Control Options and Accessories:
Item ID Catalog # Description Price Click "Select" below to see the actual quantity in stock
NUHEAT10045 NTG5110 Programmable Floor-sensing Thermostat (110V) $175.00 Select
NUHEAT10049 NTG5220 Programmable Floor-sensing Thermostat (220V) $195.00 Select
NUHEAT10139 NTG5110L Laminate/Engineered Wood Floor Thermostat (110V) $175.00 Select
NUHEAT10141 NTG5220L Laminate/Engineered Wood Floor Thermostat (220V) $195.00 Select
NUHEAT10140 NDG6110 Tile & Stone Floor Heating Regulator (110V) (Not needed with NTG5110 or NTG5110L) $99.00 Select
NUHEAT10142 NDG6220 Tile & Stone Floor Heating Regulator (220V) (Not needed with NTG5220 or NTG5220L) $99.00 Select
NUHEAT10147 MatSense Pro Electrical Fault Indicator ensures a correct Nuheat installation. Hear and see if the mat has been damaged during installation. $20.00 Select
NUHEAT10008 GFI-110WB Ground Fault Circuit Interrupter (GFCI) (110V) (Not needed with NTG5110 or NTG5110L) $25.00 Select
NUHEAT10143 RLY20A120 Relay 120V Input & Load Relay, 20 Amps (Not needed with NTG5110 or NTG5110L) $60.00 Select
NUHEAT10149 FG-Sen/Probe Floor Sensing Probe. Replacement or Back-up Sensor (Installing a second sensor as a back-up in case the one included with the thermostat fails is recommended.) $24.00 Select
NUHEAT10171 NHL Extra Optional Spliced on Extra Lead Length. For 110 or 220 Volt - Adder for each extra foot of lead wire $7.47 Select

110V STANDARD SIZE MATS
    Inches Ohms Amps Watts
NUHEAT10043 F1006 40 x 27 134 0.8 90 $220.00 Select
NUHEAT10035 F1008 40 x 32 114 1.0 106 $232.00 Select
NUHEAT10084 F1010 40 x 40 91 1.2 133 $262.00 Select
NUHEAT10040 F1012 40 x 48 76 1.5 160 $270.00 Select
NUHEAT10183 F1206 48 x 24 126 0.9 96 $224.57 Select
NUHEAT10034 F1208 48 x 30 101 1.1 120 $260.00 Select
NUHEAT10052 F1209 48 x 36 85 1.3 143 $264.00 Select
NUHEAT10184 F1212 48 x 48 63 1.7 192 $277.33 Select
NUHEAT10062 F1506 60 x 24 101 1.1 120 $260.00 Select
NUHEAT10019 F1508 60 x 30 81 1.4 150 $266.00 Select
NUHEAT10059 F1509 60 x 36 67 1.6 180 $276.00 Select
NUHEAT10003 F1510 60 x 42 61 1.8 200 $278.00 Select
NUHEAT10020 F1512 60 x 48 50 2.2 240 $292.00 Select
NUHEAT10030 F1515 60 x 60 40 2.7 300 $316.00 Select
NUHEAT10061 F1806 72 x 24 84 1.3 144 $264.00 Select
NUHEAT10078 F1808 72 x 30 67 1.6 180 $276.00 Select
NUHEAT10022 F1809 72 x 36 56 2.0 216 $288.00 Select
NUHEAT10085 F1810 72 x 42 48 2.3 252 $298.00 Select
NUHEAT10047 F1812 72 x 48 42 2.6 288 $304.00 Select
NUHEAT10086 F1815 72 x 60 34 3.3 360 $334.00 Select
NUHEAT10064 F1818 72 x 72 28 3.9 432 $370.00 Select
NUHEAT10077 F2106 84 x 24 72 1.5 168 $274.00 Select
NUHEAT10046 F2108 84 x 30 58 1.9 210 $282.00 Select
NUHEAT10011 F2109 84 x 36 48 2.3 252 $298.00 Select
NUHEAT10060 F2110 84 x 42 41 2.7 294 $310.00 Select
NUHEAT10090 F2112 84 x 48 36 3.1 336 $324.00 Select
NUHEAT10044 F2115 84 x 60 29 3.8 420 $360.00 Select
NUHEAT10039 F2118 84 x 72 24 4.6 504 $422.00 Select
NUHEAT10091 F2121 84 x 84 21 5.3 588 $462.00 Select
NUHEAT10075 F2506 96 x 24 63 1.7 192 $276.00 Select
NUHEAT10016 F2508 96 x 30 50 2.2 240 $292.00 Select
NUHEAT10055 F2509 96 x 36 42 2.6 288 $304.00 Select
NUHEAT10009 F2510 96 x 42 36 3.1 336 $324.00 Select
NUHEAT10032 F2512 96 x 48 32 3.5 384 $344.00 Select
NUHEAT10005 F2515 96 x 60 25 4.4 480 $402.00 Select
NUHEAT10036 F2518 96 x 72 22 5.1 560 $458.00 Select
NUHEAT10092 F2521 96 x 84 18 6.1 672 $526.00 Select
NUHEAT10093 F2525 96 x 96 16 7.0 768 $590.00 Select
NUHEAT10094 F2706 108 x 24 56 2.0 216 $288.00 Select
NUHEAT10015 F2708 108 x 30 45 2.5 270 $300.00 Select
NUHEAT10067 F2709 108 x 36 37 2.9 324 $320.00 Select
NUHEAT10033 F2710 108 x 42 34 3.3 360 $334.00 Select
NUHEAT10001 F2712 108 x 48 28 3.9 432 $370.00 Select
NUHEAT10042 F2715 108 x 60 22 4.9 540 $446.00 Select
NUHEAT10031 F2718 108 x 72 19 5.9 648 $510.00 Select
NUHEAT10095 F2721 108 x 84 16 6.9 756 $580.00 Select
NUHEAT10079 F2725 108 x 96 14 7.9 864 $618.00 Select
NUHEAT10096 F2727 108 x 108 12 8.8 972 $686.00 Select
NUHEAT10097 F3006 118 x 24 51 2.1 236 $290.00 Select
NUHEAT10041 F3008 118 x 30 41 2.7 295 $310.00 Select
NUHEAT10066 F3009 118 x 36 34 3.2 354 $330.00 Select
NUHEAT10029 F3010 118 x 42 29 3.8 413 $354.00 Select
NUHEAT10063 F3012 118 x 48 26 4.3 472 $400.00 Select
NUHEAT10023 F3015 118 x 60 20 5.4 598 $464.00 Select
NUHEAT10051 F3018 118 x 72 17 6.4 708 $548.00 Select
NUHEAT10069 F3021 118 x 84 15 7.5 826 $592.00 Select
NUHEAT10098 F3025 118 x 96 13 8.6 944 $668.00 Select
NUHEAT10056 F3027 118 x 108 11 9.7 1067 $716.00 Select
NUHEAT10025 F3030 118 x 116 11 10.5 1150 $764.00 Select

220V STANDARD SIZE MATS
NUHEAT10065 G1509 60 x 36 269 0.8 180 $276.00 Select
NUHEAT10058 G1510 60 x 42 242 0.9 200 $278.00 Select
NUHEAT10076 G1512 60 x 48 202 1.1 240 $292.00 Select
NUHEAT10099 G1515 60 x 60 161 1.4 300 $316.00 Select
NUHEAT10012 G1808 72 x 30 268 0.8 180 $276.00 Select
NUHEAT10100
