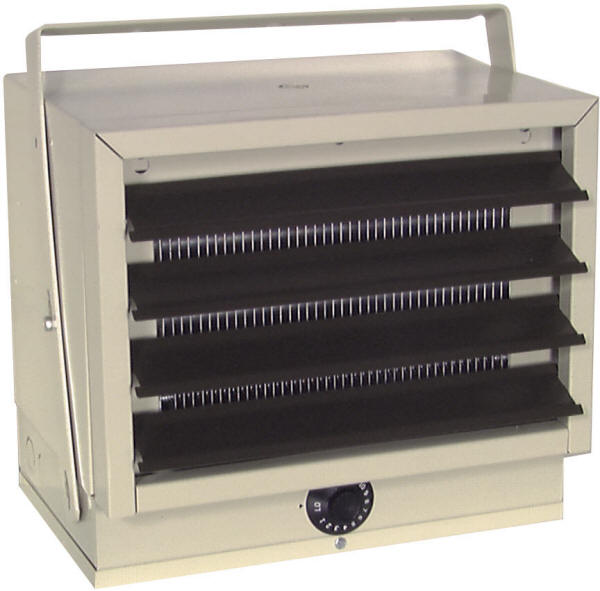

Qmark Type MWUH5004
Horizontal/Downflow Unit Heater
UL Listed- Applications include primary, supplementary, or auxiliary
heat source in factories, stores, garages, warehouses, public buildings,
service stations, workshops, large or exposed areas or additions.
- Heater comes equipped with ceiling mounting bracket for
horizontal or vertical flow mounting or any position in between.
- Built-in single pole thermostat adjusts from 45° to135°F.
- Eight wattages and two voltages make the MWUH5004 field
adjustable from 1874 watts at 208 volts to 5000 watts at 240 volts. (See
Section Chart Below.)
| Volts |
Watts |
BTUH |
Amps |
|
240 |
5000/4165 |
17063/14214 |
20.8/17.4 |
| 3332/2500 |
11371/8531 |
13.9/10.4 |
|
208 |
3750/3123 |
12797/10658 |
18.0/15.0 |
| 25001875 |
8531/6399 |
12.0/9.0 |
- Automatic control delays fan action until heating element
is warm. When thermostat is satisfied, fan continues to operate until heating
element is cool. By preventing circulation of cold air and expelling excess
heat, comfort level is raised and component life is extended.
- A high-level cutout automatically shuts off current in
event of overheating and reactivates the heater when temperature returns to
normal.
- Dimensions are 14" wide, 12-1/2" tall, and 11-1/4" deep.
- Fan Motor 8 watts, 1350 RPM
- Minimum mounting height 6'
-
| Selecting the quantity and wattage of heaters you will need in
a given area depends on whether you are using the heaters as a primary heat
source (no other heaters present) or supplementing existing heaters such
as a forced air furnace system. A general rule of thumb for primary
heating is to use 10 Watts /
Square Foot of heat. Example: a 10'x10' room is 100 square feet:
100 x 10 W/Ft2 = 1000 Watts.
Keep in mind that this is for an insulated building or room insulated to "electric heating" standards and is an
estimation based on average conditions. |
Secure
Online Ordering
Delivery time: typically ships in 1 working day or less plus the time of
your selected UPS shipping method. Your shipping cost will be displayed in your shopping cart. This delivery time is for normal conditions and is
subject to Qmark factory availability. |
|
Item ID |
Catalog# |
Description |
Price |
Click "Select" below |
|
QMARK685360047706 |
MWUH5004 |
Horizontal/Downflow Unit Heater |
$306.42 |
 |
