Honeywell Tile, Stone and
Hardwood Floor Warming
System
We are an authorized distributor for the
Honeywell floor warming system
Spa-Like Luxury At Home
With Honeywell Floor Heating
From bathroom and kitchen to
bedroom... find the right solutions to customize
your everyday climate, air quality and more.
|
Honeywell's floor warming system offers
you unparalleled comfort and luxury in any room in your
home with one of the most well known and trusted brand names among homeowners.
The Honeywell floor warming system adds body-enveloping warmth to tile,
stone and hardwood flooring and provides a level of
personalized comfort unmatched in conventional building and flooring practices.
Honeywell makes it easy….The Honeywell ultra-thin electric floor warming
system comes in easy to install fiberglass mesh backed rolls that are embedded
directly into a thin layer of cement before final floor covering installation.
Project delays can be eliminated with overnight custom
system design and same day shipping. Dedicated trained radiant heating experts
are available 24/7 to assist you with installation and technical support.
ystem
Description
Honeywell Floor Heating

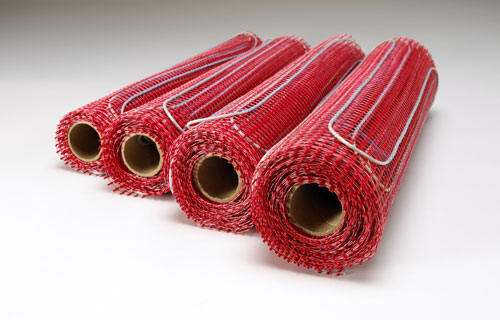

systems consist of a Teflon insulated copper alloy resistance heating
element sewn to a fiberglass mesh backing. The heating element is evenly
spaced in 2” serpentine loops. It also delivers a faster, more even
distribution of heat for improved homeowner comfort.
The entire system is less than 1/8” thick allowing
it to be easily installed under tile and stone without greatly affecting
the floor height.
The fiberglass mesh backing helps to hold the warming cable in place for
easy, fault-free installation. It also allows the system to be covered
directly by the thin set cement used to lay tile or natural stone
flooring.

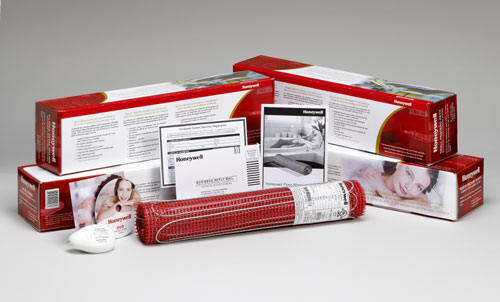

Full room heating systems generally consist of a single Honeywell
heating “roll” of predetermined length. The system is placed in position
using the easy-to-follow floor layout diagram provided with each kit,
with a pre-attached lead that runs to a thermostat and/or junction box
for power. No additional installation wiring is required.
For heated areas smaller
then 150 square feet we recommend our 120 volt heating rolls. This is
usually the easiest system to wire in most houses across America.
There is no heating or efficiency differences between 120 volt and 240
volt. For heated areas larger then 150 square feet we recommend our 240 volt
heating rolls. For larger areas it is often easier to run 240 volt power
then to run the heating system on 120 volt. Also if you are planning on
replacing existing baseboard heating, check the voltage, as older
baseboards were often wired in 240 volt.
attqtystemHoneywell
floor heating systems are 15-watts per square foot, the maximum
allowable by the National Electrical Code.
They will raise floor and
room temperatures to the desired setting more rapidly and yet, when
partnered with our SmartStat programmable thermostat, use no more
electricity than comparable 12 watt per square foot systems.
Energy
Efficient & 100% Maintenance Free
Honeywell floor
heating systems are energy efficient and environmentally friendly.
Unlike conventional forced-air heating systems, electric radiant heat
converts 100% of its energy into producing even, room-filling heat that
envelopes the whole body in soothing warmth. Even when employing a full
10-hour on cycle, a Honeywell system will heat a large size family room
or sunroom for less than $0.58 a day, and an oversized bathroom for
considerably less. In addition to being energy efficient, Honeywell
systems are 100% maintenance free, with no moving parts to wear out or
filters to change.
 UL Listed
Warming Kitchen Floors - Turn
the kitchen into a place the entire family can gather in
comfort of warm floors. With a Honeywell
Radiant Floor Heating System your kitchen will become
not just a place to prepare meals but somewhere the
entire family can gather in comfort.
Warming Bathroom Floors - Cold
Bathroom floors are a thing of the past, Honeywell floor
warming has a solution for you.
With the growing market for bathroom
remodeling, and a desire among homeowners for clean,
fresh, easy to maintain hard floor surfaces, the
problem of cold feet stepping out of warm showers &
bath tubs is a common one. It is understandable that
people are reluctant to put down rugs and bath mats
– why should they? The choice for ceramic tile was
partly based on a desire to show off design and
color.
It's
a cold winter morning and you stumble into
the bathroom for your shower. One hour ago,
your Honeywell Radiant Floor Heating System
started to warm the floor. The ceiling,
walls and furniture surfaces have absorbed
the radiant heat, surrounding you with
warmth and comfort. Good morning America.
|
|
|
|
Usually one of the
coldest spaces in the home, basement rooms have always
been a place that is difficult to keep warm
(particularly during the colder months of the year).
However, with the current trend among homeowners of
converting their basements to create children’s
playrooms, dens, media rooms and offices, efficient
warming has become an increasingly important need.
With the tendency of warm air to
rise, forced air systems are not the most efficient
way to heat these rooms – the floor will usually
remain cold while you may feel warm above your
knees. With a Honeywell Radiant Floor Heating System
you keep the heat where it is needed, at the lower
six feet of the room. Radiant floor temperatures are
far more pleasant than being struck by hot and cold
breezes (as is typical with forced air systems).
|
|
Install a warm floor in
your basement
"With the heat vents at the ceiling the warm
air stays up there while the slab continuously
absorbs the ambient heat from the air close to
the ground. This used to give me 76º at the
ceiling while my feet were freezing on a 64º
slab!"
Joseph
Meadows, PA
User
Manuals
|
|
Frequently
Asked Questions
| How quickly does it warm up?
The time needed to warm up your floor depends on
several factors, such as the heat loss, your local weather or season,
the type of subfloor you have, the space & insulation under the heated
floor, and the watts option you chose (10 or 15 watt/ sq. ft.). In most
cases, a second floor bathroom with 15-watt/ sq. ft. product will reach
78-to-82 deg after 30 to 40 minutes (which is most people's preferred
temperature) and 90 deg after 2 hours. Installations with 10 watt
products have a slower build of heat.
Is there any Fire Hazard?
No, there is no risk. As a matter of fact, our product
is UL
certified. UL (Underwriters Laboratory) tests electrical components
and equipment for potential hazards. When something is UL-listed, that
means that the UL has tested the device, and it meets their requirements
for safety - i.e.: fire or shock hazard.
Installation
The Honeywell new ultra-thin electric systems are designed to
be installed on top of the sub floor and directly beneath the stone floor
covering during the final application. The mesh backing allows the system to
be quickly laid out and affixed to the sub floor by the floor covering
professional immediately prior to floor covering application. There is no
need for a radiant heating specialist, and most installations can be
completed by the first time floor covering installer or HVAC professional
without prior training, thanks to our installation guides and 24/7 technical
support line.
How do I get started?
You can send us a floor plan for a free customized installation plan and
a precise estimate. Simply
fax or email us
a floor plan and we’ll have our design team take a look at your room and
work out exactly how we can fit our product in there. Make sure that you
mark on what kind of floor you’re looking to heat, and we’ll prepare a
customized installation plan that will show you the coverage that we can
achieve, the way you need to lay out the mat and the full electrical
specs for the project…as well as the price.
If the surface you would like to warm is simple, you
can call us toll free
to get an estimate on the phone.
Who installs Honeywell?
There are two parts in any Honeywell installation: the
installation in the floor and the electrical connection. Obviously
the electrical connection should always be done by an experienced
electrician.
The open question is really Who Installs Honeywell in the Floor?
Generally it is the tile setter or the flooring installer. A tile setter
can easily cut the rolls and fit the room. The only small electrical
experience he needs is to read the ohm resistance with a ohm meter.
(see
section 7 of the installation manual on the web site)
What should I tell my electrician?
A designated line is strongly recommended to reduce
the risk of sporadic or nuisance tripping in the GFCI. Based on the
square footage, a 220 line, or 120 line with a relay contactor
(installations over 120 Square feet) will be needed. The thermostat
works best situated in a double gang box with a single mud ring, giving
enough room for the lead wires and sensor wire if the LineVoltPRO
is being
used. Again based on the square footage and voltage of the system we can
determine the size of the breaker on the box, most systems would require
a 15 amp breaker. Two conduits are brought to the floor from the control
unit, one houses the sensor wire and the other will house the leads. The
sensor and the leads cannot share the same conduit.
How do I lay out the rolls on the floor?
The easiest thing to do is to
fax us your floor plan and we will fax back an installation layout
that is customized to your open floor space with a price quotation FREE
of charge.
Repair
Is the product repairable?
Yes, the location of a break or an electrical short
can be found. Our success rate at
repairing the Honeywell system, if damaged during installation, is
extremely high. In locating a break we send out a device, ShortStop,
which transmits a radio signal down the wire. If our floor plan has been
followed, the position of the break or short should not be to difficult
to establish. A couple of tiles will need to be removed and the broken
cable will need
splicing. A repair Free splice kit is available to perform this
reparation.
Surface to cover
What floor area should I cover?
If the Honeywell roll is installed as a secondary
source of heat, we recommend covering only the standing and traffic
areas. We like to heat the toe-kick space under your counters and
vanities, but we generally do not cover the last 6-to-18 inches against
a wall where no one will be walking or standing.
What are the different control options?
The lower end controller options we have are a
Comfort Regulator and a
Programmable timer. The latter controller offers 7-day, 14 event
programming capabilities at a value price (does not regulate

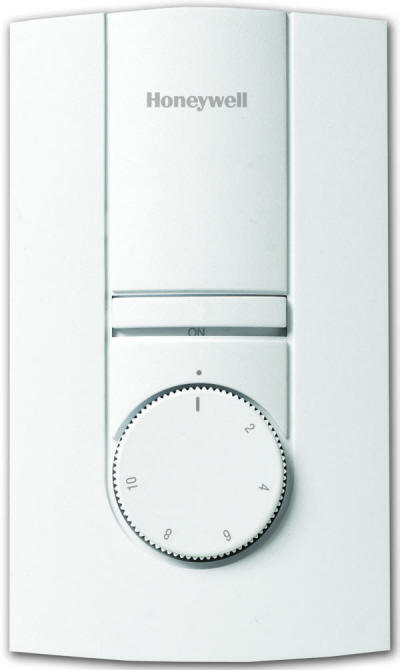

temperature) Our Comfort regulator features a convenient dial to control
your preferred comfort level with ease.

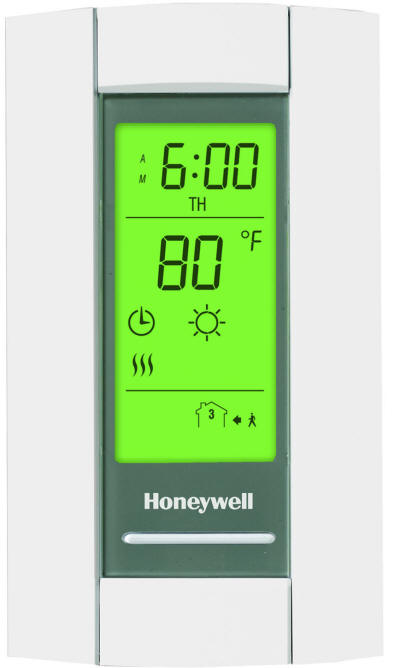

Our top of the line model is a fully
programmable thermostat with a built in Ground Fault Circuit
Interrupter. This thermostat features a temperature probe that senses
the temperature of your floor. It provides homeowners with total control
over their floor heating system. Along with a
7-day, 4 events per day settings, the thermostat is designed for
maximum comfort and system enjoyment. We recommend that this product be
used with all hardwood and floating wood floor heating capabilities
where a floor covering manufacturer has specified a maximum heating
level.
How does "Electric" Floor Heating Compare to
"Hydronic" Radiant Floors?
"Hydronic" systems use a boiler to heat up hot water
and a pump to circulate the hot water in plastic pipes installed in a
concrete slab. "Electric" systems use an electric resistance cable,
sometimes assembled into a mat or a roll (conceptually similar to an
electric blanket) to heat up a thin layer of concrete in the floor
structure.
1. One difference is the floor elevation involved. The hydronic system
elevates the floor by a couple of inches, which can be a problem in many
remodeling jobs. Thin electric systems will elevate the floor by only
1/8".
2. Time to heat up: Hydronic systems are placed 1.5" or 2" into a
concrete slab. This is so deep into the floor that it usually takes 4 to
7 hours to heat up when they are first turned ON. Therefore, they are
left ON for many months and consume energy during a longer period of
time.
3. Energy Saving: The thin electric mats are placed above the sub-floor,
just under the flooring material. They will heat the floor in 30 to 60
minutes under tile. They are controlled by a timer and a thermostat and
in most cases, the homeowners will preset ON-OFF cycles to provide heat
only WHEN he/she needs it and WHERE he/she needs it (selecting rooms and
heating from your feet up).
4. Cost of Installation: In remodeling jobs or in select rooms of a new
construction hydronic systems will cost more to install. In very large
jobs (complete home in new constructions), the hydronic systems will
often be less expensive to install.
5. Maintenance and repairs: Hydronic systems need to circulate water
continuously and they use valves and manifolds, which are prone to
sedimentation, mechanical problems and maintenance issues. Electric
systems have no moving parts and require no maintenance. If a hydronic
installation is faulty, it is difficult to find a leak and the system is
difficult to repair. With electric systems an underground fault detector
can find the exact location of the break and after breaking just one or
two tiles it is easier to splice the electric cable and replace the few
tiles removed.
6. Operating costs: The cost of electricity in America varies between 3
cents/kWh up to 18 cents per kWh, therefore, the cost of generating
1,000 BTU with a hydronic system may sometimes be lower than the cost of
generating 1,000 BTU with an electric system. However, the real
comparison needs to consider the different ways these two systems are
used. The hydronic system will be ON for many months, while the electric
system will be ON-&-OFF several times a day according to the ON-OFF
settings of each room thermostat. Moreover, during each ON period, the
electric system will only use electricity continuously for the initial
period of temperature build-up. Thereafter, it will cycle between ON and
OFF and will only draw electricity during 25% to 33% of the time
remaining during the ON period.
|
Installation PDF:
http://www.honeywellfloorheating.com/support/documents/HoneywellEnglishInstallationGuide.pdf
-
Now, thanks to Honeywell floor warming, you can turn your bathroom into a
private retreat of unparalleled warmth and comfort with the simple addition
of an ultra-thin, radiant floor warming system from the company known and
trusted by homeowners for over 100 years.
-
Honeywell floor warming systems install discreetly beneath tile or stone
floors to add body enveloping warmth that quickly soothes away the stress of
the outside world.
-
FREE Lifetime Technical Support For As Long As You Own Your Honeywell Floor
Warming System
-
Honeywell floor warming systems are manufactured from the highest quality
materials and contain 24% more warming cable than competitive systems. Your
new system will provide you with years of maintenance free, uninterrupted
comfort and enjoyment, and is backed by a Free lifetime technical assistance
plan that is the first of its kind in its industry.
-
When it comes time to sell your new home, you’ll also find that your radiant
warmed floor will have significant appeal for prospective home buyers who
will be attracted to its functional luxury.
-
Ask your builder to
include a Honeywell floor warming system in your master bath, kitchen or
foyer. Including a system will add little to the overall cost of your new
home construction, and will provide years of self-pampering luxury and
comfort for you, your family and your guests.
-
Choice Of High Quality Honeywell Controls For Maximum Comfort Management
-
Choose how best to manage your system with a quality Honeywell thermostat.
-
Honeywell 7-Day Programmable Thermostat: This top-of-the-line electronic
thermostat offers four separate programmable events for each day of the
week and an in-floor sensor for precise temperature control to +/- .05°.
-
Honeywell Comfort Regulator: For less stringent control requirements, our
Comfort Regulator offers a convenient power selection dial that sets the
amount of time that a system remains on (during repeating 15-minute cycles),
and a manual on/off button.
-
Easy-To-Install Floor Warming Systems That Go Right Down With Your New Floor
Covering
-
Honeywell electric floor warming systems are so easy to install and
economical to operate that you will wonder how you ever lived without one.
-
Designed to create a
custom fit for even the most unique room layouts, our advanced “stay-flat”
warming system can be installed over any subfloor approved for tile or stone
application. Measuring less than 1/8” thick, it will fit discreetly beneath
your chosen floor covering to add spa-like, radiant warmth and comfort to
naturally cold tile and stone surfaces.
-
You will come to enjoy the advantages of the even, room-filling warmth
created by your Honeywell floor warming system so much that you may never
want to turn it off. Fortunately, that won’t be a problem because all of
our systems are designed to be energy efficient. You’ll find the average
cost to warm a master bath to be less than that of powering two 75-watt
light bulbs. So, go ahead, indulge yourself. You deserve it.
-
Honeywell Floor Warming Systems Are Built To Perform For The Life of Your
New Floor Covering
-
The warming cable used in Honeywell floor warming systems will provide up to
70 years of performance life based on accelerated aging tests. That’s
probably several decades beyond the “decorative life” of your new floor
covering.
-
Should you ever require technical assistance or have questions about
programming your system’s thermostat or control, you will find knowledgeable
floor warming system customer service representatives available 24/7 at
(866) 891-WARM (9276).
-
Our technical assistance service is provided Free to all homeowners for the
life of their system. It’s one of the many advantages brought to you by the
Honeywell family of floor warming professionals.
24/7 Installation Support
• Lifetime Technical Assistance • Free Design Service
Thermostats
| Honeywell 7-Day Programmable
Thermostat is one of the most advanced thermostats for
electric heating on the market. It features precise
comfort control, a sophisticated design and high-end
programming features.
How
you plan to use your radiant floor heating system and
where it will be installed will determine what type of
thermostat or control should be included with your
installation. If bathroom or kitchen floors are to be
heated, you may wish to use a 7-day, 4-event
programmable thermostat that can have the floors
warm-and-inviting first thing in the morning and late in
the evening. Family rooms and sunrooms may
operate
just as well with
a
simpler
control
- designed as a basic on/off switch, with the ability to
regulate the level of power going to the floor (thereby
regulating the floor temperature).
Programmable
Consistent Comfort, Plus Energy Savings.
|
Honeywell's LineVoltPRO™ 8000 is
one of the most advanced digital, programmable
thermostats for electric heating that you can find.
It features precise comfort control, a sophisticated
design and high-end programming features. Begin
lowering your heating bill immediately with the
pre-programmed 7-day schedule, or modify the
programming to suit your lifestyle. With LineVoltPRO™
8000, you'll see substantial savings and feel
consistently comfortable. |
HWF1GA-15-120
HWF1GB-15-240
Consistent Comfort, Plus Energy Savings.
Begin lowering your heating bill immediately with the
pre-programmed 7-day schedule, or modify the programming to suit your
lifestyle. With the Honeywell 7-Day Programmable Thermostat , you'll see
substantial savings and feel consistently comfortable.
This thermostat works with
an in-floor sensor and a digital display that indicates the exact floor
temperature. It also features a manual set-back to a "high" and a "low"
temperature level, and it features a built-in GFCI. The programmable
function allows you up to 4 setting changes for each day of the week (i.e. 2
“on” settings and 2 “off” settings per day).
TEMPERATURE CONTROL
Microprocessor-optimized PIA
Heating cycles: 15 minutes
Accuracy: ± 0.5ºC / 0.9ºF
DIMENSIONS (H•W•D)
124 x 70 x 23 mm / 4.9 x 2.8 x 0.9 inches
Floor sensor: 4.6 m / 15 feet
Key Features
Pre-set 7-day program. Achieve up to 15% energy savings (if used as
directed. Savings may vary based on geographic region and usage).
Quiet operation. Soundproofed to reduce the clicking noise commonly heard
with conventional thermostats.
Easy-to-use. On-demand backlight, early start, on/off switch and a visible
heat indicator are just some of the product features.
3-year warranty
UL Listed
Regulator
The Floor Heating Regulator
The Comfort Regulator is ideal for those kinds of floor heating project where
specific daily scheduling is not the primary concern. Used regularly for Sunroom
and Family Room projects, this control device operates as a manual on/off
switch, with the addition of a regulator-dial that allows direct control over
how much power is going to the floor (thereby giving control over the floor
temperature).
HWR1GA-15-120
The Floor Heating Regulator
The Comfort Regulator is ideal for those kinds of floor heating project
where specific daily scheduling is not the primary concern. Used regularly
for Sunroom and Family Room projects, this control device operates as a
manual on/off switch, with the addition of a regulator-dial that allows
direct control over how much power is going to the floor (thereby giving
control over the floor temperature).
HEATING CONTROL
Heating cycles: 15 minutes
Power setting range: 0% to 100%
E.g., power setting of "6" heats for 60% of the 15 minute cycle - heater is
on for 9 minutes and off for 6 minutes.
DIMENSIONS (H•W•P)
124 x 70 x 23 mm / 4.9 x 2.8 x 0.9 inches
Key Features:
Built-in Ground Fault Circuit Interrupter (GFCI), with test button and
verification light
Epoxy-soundproofed relay for quiet operation
Easy installation - no temperature probe required
Single control dial means easy heating control
Battery free
UL Listed
|
