HeatTrak Portable Residential and Industrial Snow Melting
Traction Mat
We are
an authorized distributor for
HeatTrak,
LLC.
manufacturer of snow melting mats.
Links to other Heattrak products:
Snow Melting Doormat (Heated Entrance Mat)
Rubber Top
Stair Treads Snow Melting Mats
Aluminum Top Stair Treads Snow Melting
Mats
Underlay Snow Melting Mat
for use under existing entrance mats
|
The HeatTrak Mat™ either plugs
directly into any standard 120V or 240V outlet using an equipment
leakage circuit interrupter (ELCI), or they can be hardwired into an
electrical junction box. The HeatTrak™ products melt up to 2” of
falling snow per hour and cost as little as 60 cents a day to operate
(depending on the cost per kilowatt hour).
To ensure the product’s reliability,
The HeatTrak Mat™ is built and tested
according to the UL499 and CSA E335-1 electrical standard before leaving
the HeatTrak facility. |
 |
 |
The HeatTrak Mat™ is an
alternative to more traditional forms of snow and ice removal, such as
shoveling, snow blowing, harsh chemicals, and embedded systems. Unlike
the alternatives, however, The HeatTrak Mat™ does
not require the effort of shoveling or snow blowing, preserve surfaces
from harsh chemicals, and continuously melts
snow and ice keeping surfaces constantly clear and safe. In addition,
The HeatTrak Mat™ is
less expensive to install than embedded snow melting systems and their
portability allows them to be used in places where embedded elements
cannot be used. The HeatTrak™ products are extremely durable and are
designed to be left outside for the entire winter season. |
| Durable and Reliable
We are confident that you will be
satisfied with the quality and performance of your
snow mat. To prove it, we will stand behind
your purchase with a 24-month replacement
warranty. For complete warranty details, contact us.
CSA Certified
The HeatTrak Mat™ is designed with grommet holes on each side to
make securing the mat both simple and effective (see instruction manual for
recommended methods of securing the mat). |
 |
 |

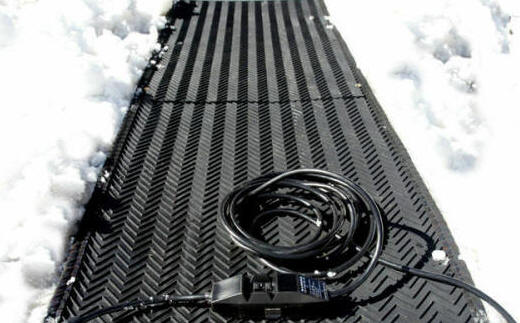

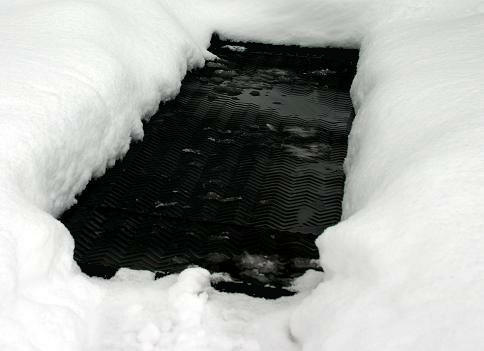

The HeatTrak Mat™ is designed to lay over
any flat surface requiring snow and ice removal. In addition to melting snow
and ice, the mat’s non-slip rubber surface acts as a traction mat, further
preventing potential slip-and-fall accidents. The HeatTrak Mat™ is
an efficient and convenient way to eliminate snow and ice accumulation

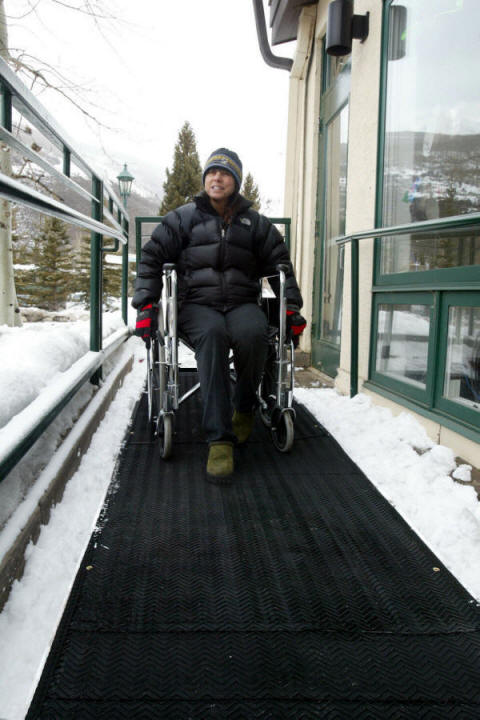

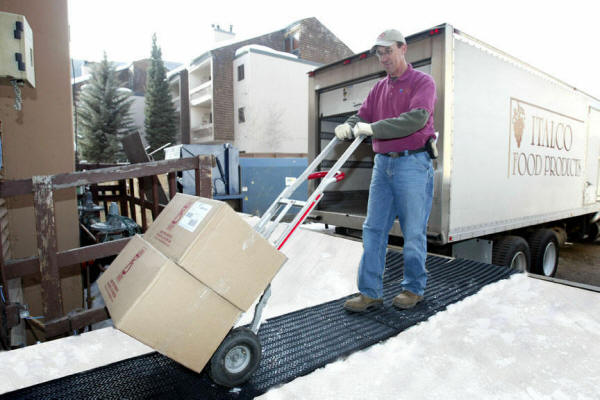

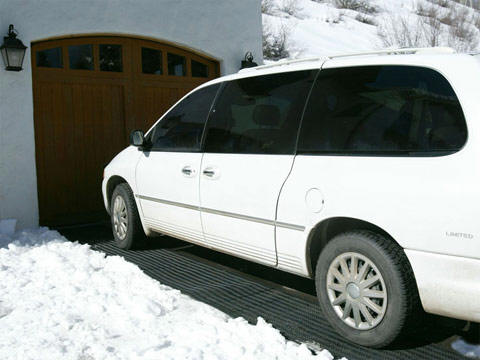

around the home or workplace. The HeatTrak Mat™ is a
portable electric heating mat that lays over walkways,
driveways, loading docks, handicap ramps, and many other surfaces, to provide a
clean and safe passageway for foot, wheelchair, or automobile access. |
Product Specs
|
Surface |
|
Thickness |
1/4 inch thick |
|
Chevron height |
0.125 inch |
|
Minimum bend radius |
3 in. |
|
Material |
Reinforced UV stabilized butyl
rubber |
|
Heating Element |
|
Voltage |
120/240 Vac |
|
Power density |
40 Watts/
Sq. Ft. |
|
In-line Safety Device/Power Cord |
|
Service voltage |
120Vac or 240Vac |
|
Circuit breaker rating |
15 Amp |
|
ELCI trip level |
27 mA |
|
Cold lead length (nominal) |
6 feet. |
|
Cold lead gauge |
14/3 |
Grommets
-
Type: Brass
-
Size: 7/16 (No. 3)
-
Spacing: 3 ft nominal
Minimum installation temperature
Environment
Approximate cost to operate per hour.
Based on a range of cost per kilowatt hour
|
Size |
$0.06 |
$0.09 |
$0.12 |
$0.15 |
$0.18 |
$0.21 |
|
24" x 6' |
$0.02 |
$0.03 |
$0.04 |
$0.05 |
$0.06 |
$0.07 |
|
24" x 9' |
$0.03 |
$0.05 |
$0.07 |
$0.08 |
$0.10 |
$0.11 |
|
24" X 12' |
$0.04 |
$0.06 |
$0.09 |
$0.11 |
$0.13 |
$0.15 |
|
24" X 15' |
$0.05 |
$0.08 |
$0.11 |
$0.14 |
$0.16 |
$0.19 |
|
24" X 18' |
$0.06 |
$0.10 |
$0.13 |
$0.16 |
$0.19 |
$0.23 |
|
24" X 20' |
$0.07 |
$0.11 |
$0.15 |
$0.18 |
$0.22 |
$0.26 |
|
36" X 4' |
$0.02 |
$0.03 |
$0.04 |
$0.06 |
$0.07 |
$0.08 |
|
36" X 6' |
$0.03 |
$0.05 |
$0.07 |
$0.08 |
$0.10 |
$0.12 |
|
36" X 9' |
$0.05 |
$0.08 |
$0.11 |
$0.13 |
$0.16 |
$0.18 |
|
36" X 12' |
$0.07 |
$0.11 |
$0.14 |
$0.18 |
$0.21 |
$0.25 |
|
36" X 15' |
$0.09 |
$0.13 |
$0.18 |
$0.22 |
$0.27 |
$0.31 |
|
36" X 18' |
$0.11 |
$0.16 |
$0.21 |
$0.27 |
$0.32 |
$0.37 |
|
36" X 21' |
$0.13 |
$0.19 |
$0.25 |
$0.31 |
$0.38 |
$0.44 |
 |

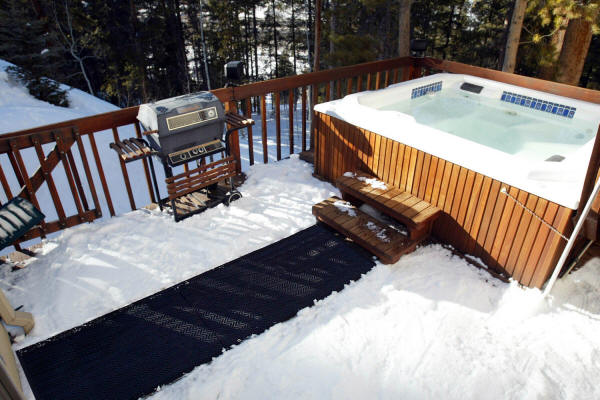

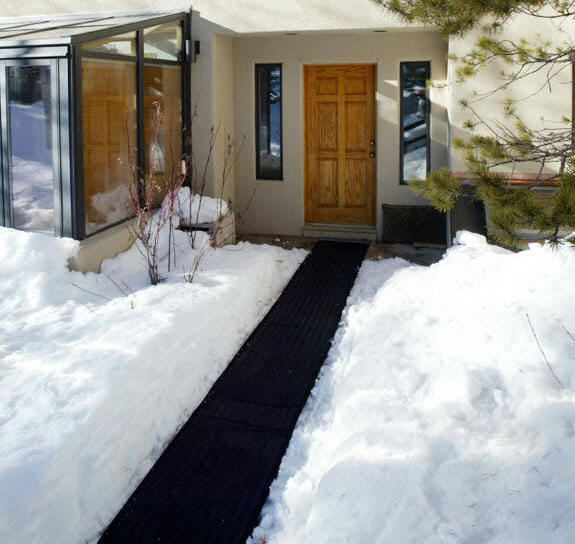

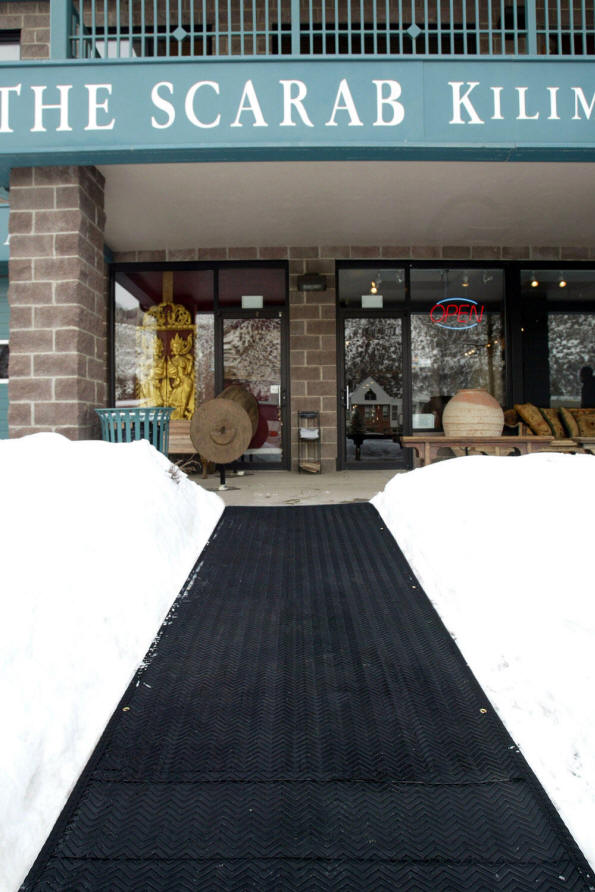

HeatTrak® snow-mats are designed to remove
hazardous snow from many dangerous areas that exist around our homes and our
work places. Use our mats to provide a safe and clear way on sidewalks,
driveways, loading docks, wheelchair ramps, building entrances, or any place
where snow removal is necessary. HeatTrak® Construction - The HeatTrak®
snow-mat is made of an electrically operated heating element sandwiched between
two protective surfaces of non-slip rubber, making it as durable as automobile
tires and allowing it to endure harsh wear.
Heavy-duty and durable, these heated mats are built to
stand up to the harshest winter weather and leave a clear path for pedestrians
and vehicles. The HEATTRAK Portable Snow
Melting Mat can be moved easily from one problem area to another and can be
unrolled in the fall and picked up in the spring. It is designed to roll
out over most surfaces including wood, metal, concrete, or asphalt. |

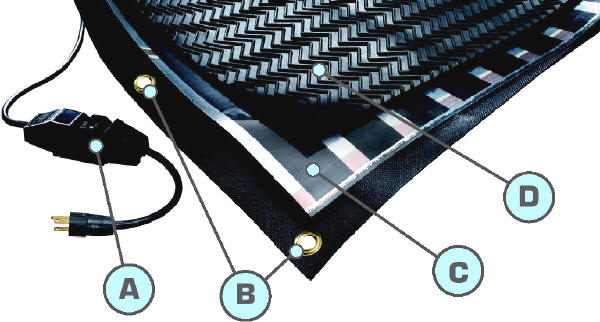

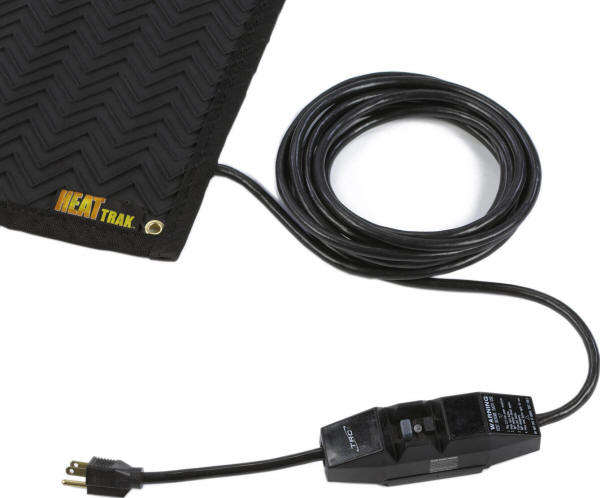

Unique Snow Melting Technology
A.
In-Line Safety Device.
Provides built-in safety against electrical hazards.
B.
Attachment Grommets.
Spaced 36 inches apart, these pre-installed
grommets provide convenient places to anchor the mat.
C.
Heating Element.
Provides reliable, even heat distribution.
D.
Non-Slip Waterproof Rubber Surface.
Helps prevent slip and fall accidents.

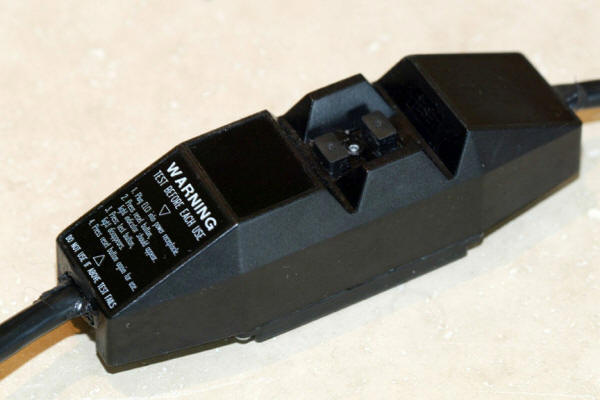

In-line safety device/power cord
All mats (120 Volt and 240 Volt) have a built-in GFCI in
the cords
All mats can be plugged into any wall outlet (GFCI or non-GFCI)

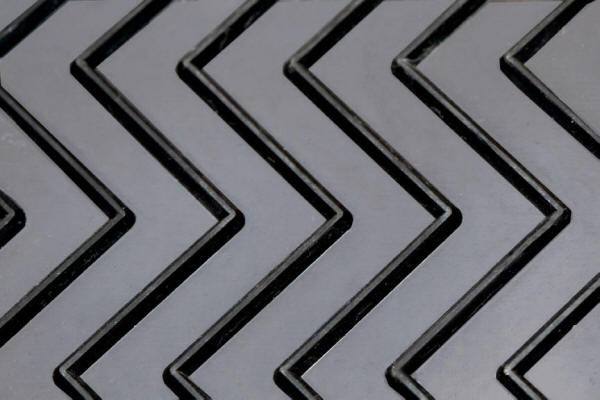

Non-Slip Waterproof Rubber Surface
|
Secure Online Ordering
Delivery time: typically direct ships
from HeatTrak in 1-2 working days
or less plus the time of your selected UPS shipping method.
Your shipping cost will be displayed in your shopping cart. |
|
Item ID |
Catalog
# |
Size |
Volts |
Wattage |
Amps |
Ship
Wt. (Lbs.) |
Price |
|
|
2 foot wide 120 Volt mats: |
|
HEATTRAK10075 |
HTM24-3 |
24" x 3'
|
120 Volts |
192 Watts |
1.6 Amps |
19 |
$182.81 |
 |
|
HEATTRAK10001 |
HTM24-6 |
24" x 6'
|
120 Volts |
352 Watts |
2.9 Amps |
28 |
$365.63 |
|
|
HEATTRAK10002 |
HTM24-9 |
24" x 9'
|
120 Volts |
544 Watts |
4.5 Amps |
37 |
$548.44 |
|
| HEATTRAK10003 |
HTM24-12 |
24" x 12'
|
120 Volts |
720 Watts |
6.0 Amps |
45 |
$731.25 |
|
| HEATTRAK10004 |
HTM24-15 |
24" x 15'
|
120 Volts |
912 Watts |
7.6 Amps |
54 |
$914.06 |
|
| HEATTRAK10005 |
HTM24-18 |
24" x 18'
|
120 Volts |
1,072 Watts |
8.9 Amps |
58 |
$1,096.88 |
|
| HEATTRAK10006 |
HTM24-20 |
24" x 20'
|
120 Volts |
1,216 Watts |
10.1 Amps |
67 |
$1,218.75 |
|
|
3
foot wide 120 Volt mats: |
| HEATTRAK10011 |
HTM36-4 |
36" x 4' |
120 Volts |
371 Watts |
3.1 Amps |
28 |
$365.63 |
|
| HEATTRAK10012 |
HTM36-6 |
36" x 6' |
120 Volts |
557 Watts |
4.6 Amps |
39 |
$548.44 |
|
| HEATTRAK10013 |
HTM36-9 |
36" x 9' |
120 Volts |
875 Watts |
7.3 Amps |
51 |
$822.66 |
|
| HEATTRAK10014 |
HTM36-12 |
36" x 12' |
120 Volts |
1,193 Watts |
9.9 Amps |
64 |
$1,096.88 |
|
|
3 foot wide 240 Volt mats: |
| HEATTRAK10015 |
HTM36-4B |
36" x 4' |
240 Volts |
371 Watts |
1.5 Amps |
28 |
$365.63 |
|
| HEATTRAK10016 |
HTM36-6B |
36" x 6' |
240 Volts |
557 Watts |
2.3 Amps |
39 |
$548.44 |
|
| HEATTRAK10017 |
HTM36-9B |
36" x 9' |
240 Volts |
875 Watts |
3.6 Amps |
51 |
$822.66 |
|
| HEATTRAK10018 |
HTM36-12B |
36" x 12' |
240 Volts |
1,193 Watts |
5.0 Amps |
64 |
$1,096.88 |
|
| HEATTRAK10019 |
HTM36-15 |
36" x 15' |
240 Volts |
1,484 Watts |
6.2 Amps |
76 |
$1,371.09 |
|
| HEATTRAK10021 |
HTM36-21 |
36" x 21' |
240 Volts |
2,094 Watts |
8.7 Amps |
100 |
$1,919.53 |
|
|
HEATTRAK10074 |
HTM36-25 |
36" X 25' |
240 Volts |
2,597 Watts |
10.8 Amps |
112 |
$2,285.16 |
|
|
