HeatTrak Aluminum Top Stair Treads Snow Melting Mats

Links to other Heattrak products:
 Snow Melting Doormat (Heated Entrance Mat)
Rubber Top Stair Treads Snow Melting Mats
Portable Snow Melting Mat
Underlay Snow Melting Mat for use under existing entrance mats


We are an authorized distributor for HeatTrak, LLC., manufacturer of snow melting mats.

HeatTrak Stair Treads™ are an alternative to more traditional forms of snow and ice removal, such as shoveling, snow blowing, harsh chemicals, and embedded systems.  Unlike the alternatives, however, HeatTrak Stair Treads™ do not require the effort of shoveling, preserve surfaces from harsh chemicals, and continuously melt snow and ice keeping surfaces constantly clear and safe.  In addition, HeatTrak Stair Treads™ are less expensive to install than embedded snow melting systems and their portability allows them to be used in places where embedded elements cannot be used.  HeatTrak Stair Treads™ are extremely durable and are designed to be left outside for the entire winter season.

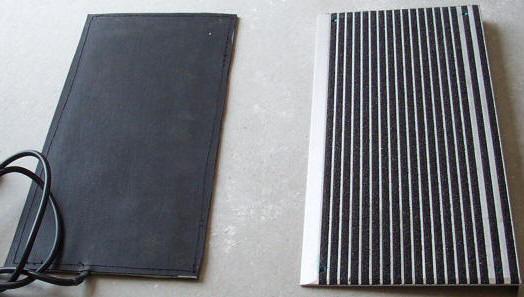

The aluminum tread at right is placed over the heating mat on the left.


Clearly marked hole for mounting

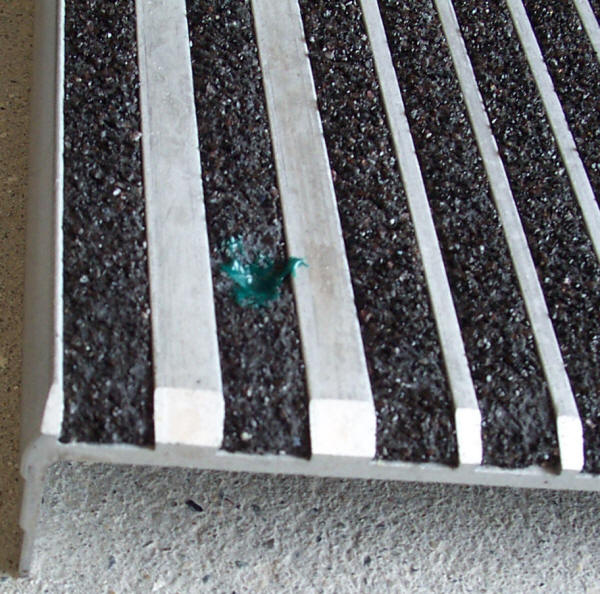

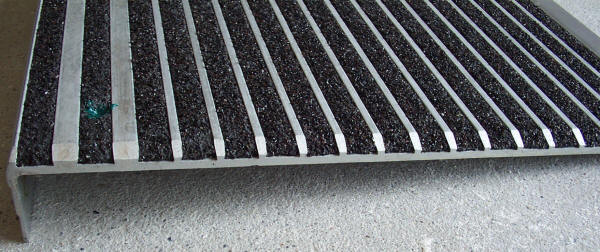

Sturdy aluminum tread

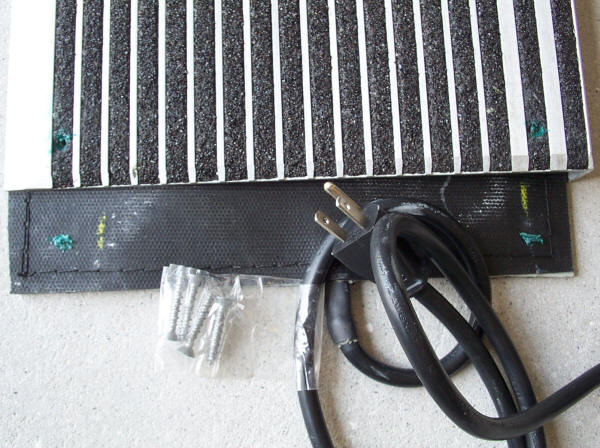

A complete kit

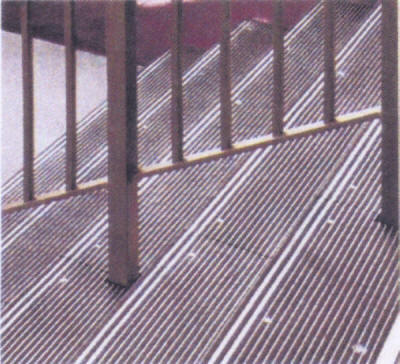

HeatTrak Stair Treads™ are an efficient and convenient way to eliminate snow and ice accumulation on stairs.  The Aluminum Top Non-Slip Surface stair treads are designed to withstand extra heavy foot traffic around the factory.  Each tread is sold individually with its own 6’ long cord that plugs directly into an electrical junction box.  The Aluminum Top Non-Slip Surface treads are designed with 4 grommet holes to make securing the treads both simple and effective.

Product Specs

Aluminum Tread

Material

Extruded aluminum; abrasive filler

Thickness

1/4"



Heating Element

Voltage

120/240 Vac

Power density

35 Watts/ Sq. Ft.



In-line Safety Device/Power Cord

Service voltage

120Vac or 240Vac

Circuit breaker rating

15 Amp

ELCI trip level

27 mA

Cold lead length (nominal)

6 ft

Cold lead gauge

14/3

HeatTrak Stair Treads™ either plug directly into any standard 120V or 240V outlet using an equipment leakage circuit interrupter (ELCI), or they can be hardwired into an electrical junction box.  The HeatTrak™ products melt up to 2” of falling snow per hour and cost as little as 60 cents a day to operate (depending on the cost per kilowatt hour).

To ensure the product’s reliability, HeatTrak Stair Treads™ are built and tested according to the UL499 and CSA E335-1 electrical standard before leaving our facility.

Approximate cost to operate per hour. Based on a range of cost per kilowatt hour

Size

$0.06

$0.09

$0.12

$0.15

$0.18

$0.21

$0.24

9" x 2'

$0.003

$0.004

$0.005

$0.007

$0.008

$0.009

$0.011

9" x 3'

$0.005

$0.007

$0.009

$0.011

$0.014

$0.016

$0.018

9" x 4'

$0.006

$0.009

$0.013

$0.016

$0.019

$0.022

$0.025

9" x 5'

$0.008

$0.011

$0.015

$0.019

$0.023

$0.027

$0.031

11" x 2'

$0.003

$0.005

$0.006

$0.008

$0.009

$0.011

$0.013

11" x 3'

$0.005

$0.008

$0.011

$0.013

$0.016

$0.018

$0.021

11" x 4'

$0.007

$0.011

$0.015

$0.018

$0.022

$0.026

$0.029

11" x 5'

$0.009

$0.013

$0.018

$0.022

$0.027

$0.031

$0.036

  • CSA Certified


In-line safety device/power cord

Installation Instructions

 You must have the free Adobe Acrobat Reader plug-in.

Secure Online Ordering
Delivery time: typically direct ships from HeatTrak in 1-2 working days or less plus the time of your selected UPS shipping method.  Your shipping cost will be displayed in your shopping cart.

  • Stair treads can also come linked together in groups of  2 - 12, with or without a plug.  Please indicate in the order notes field your preference.

  • When using anything more than 12 treads, more than 1 outlet will be needed.

  • Choose 9" or 11" (If any part of the stair is not covered by the 9" or 11" tread, there will be an un-melted area.)
Item ID Catalog # Size Volts Watts Amps

Ship Wt. (Lbs.)

 Price
9 inch wide 120 Volt treads:
HEATTRAK10038 HAT9-2 9" x 2' 120 45.0 0.4 4.1 $255.00 Select
HEATTRAK10039 HAT9-3 9" x 3' 120 75.0 0.6 6.1 $335.00 Select
HEATTRAK10040 HAT9-4 9" x 4' 120 105.0 0.9 8.2 $415.00 Select
HEATTRAK10041 HAT9-5 9" x 5' 120 127.5 1.1 10.2 $495.00 Select
11 inch wide 120 Volt treads:
HEATTRAK10042 HAT11-2 11" x 2' 120 52.5 0.4 5.0 $270.00 Select
HEATTRAK10043 HAT11-3 11" x 3' 120 87.5 0.7 7.5 $350.00 Select
HEATTRAK10044 HAT11-4 11" x 4' 120 122.5 1.0 10.0 $430.00 Select
HEATTRAK10045 HAT11-5 11" x 5' 120 148.8 1.2 12.5 $510.00 Select
9 inch wide 240 Volt treads:
HEATTRAK10046 HAT9-2B 9" x 2' 240 45.0 0.2 4.1  $255.00 Select
HEATTRAK10047 HAT9-3B 9" x 3' 240 75.0 0.3 6.1 $335.00 Select
HEATTRAK10048 HAT9-4B 9" x 4' 240 105.0 0.4 8.2 $415.00 Select
HEATTRAK10049 HAT9-5B 9" x 5' 240 127.5 0.5 10.2 $495.00 Select
11 inch wide 240 Volt treads:
HEATTRAK10050 HAT11-2B 11" x 2' 240 52.5 0.2 5.0 $270.00 Select
HEATTRAK10051 HAT11-3B 11" x 3' 240 87.5 0.4 7.5 $350.00 Select
HEATTRAK10052 HAT11-4B 11" x 4' 240 122.5 0.5 10.0 $430.00 Select
HEATTRAK10053 HAT11-5B 11" x 5' 240 148.8 0.6 12.5 $510.00 Select
