DURAKOOL
Series Gold Label
35 Amp Mercury
Relay Contactor Power Controls
Links to other Mercury Relays:
DURAKOOL 60 Amp mercury
relays
We are a distributor of DURAKOOL
mercury relays, manufactured by
AEC (American Electronic Components).
Quiet, reliable performance with virtually no
maintenance requirements and long life expectancy.
For more than sixty years, Durakool has specialized in the
production of mercury displacement relays and contactors. They helped create
mercury-switching technology. Durakool
products provide silent, reliable switching because of the unique properties of
mercury as a contact material. They are virtually immune to breakage, corrosion
or wear. The contacts, enclosed in
hermetically sealed steel containers, operate in a wide range of temperatures,
under low or high pressures, in dust or vapor-filled atmospheres. They produce
no external sparks and are unaffected by line noise or voltage spikes.
Durakool Gold Label 35 and 50 Amp models
(normally open) are economical, special purpose
contactors developed to handle resistive loads over
millions of switching cycles, they have been used
successfully in commercial cooking equipment, plastics
machinery, process heating controls, comfort heating
and lighting control applications. As in all Durakool
contactors, the liquid contact action of mercury
switching is far superior to conventional mechanical
contactors, offering significantly longer life. Gold
Label contactors operate dependably in harsh
industrial/commercial environments without special
protection and do not require sophisticated equipment
for troubleshooting.
| SPECIFICATIONS |
| Maximum Time: |
Operate 70 ms,
Release 90 ms |
| Contact Bounce, Release: |
None |
| Recommended DC Load Polarity: |
Top Connector Negative |

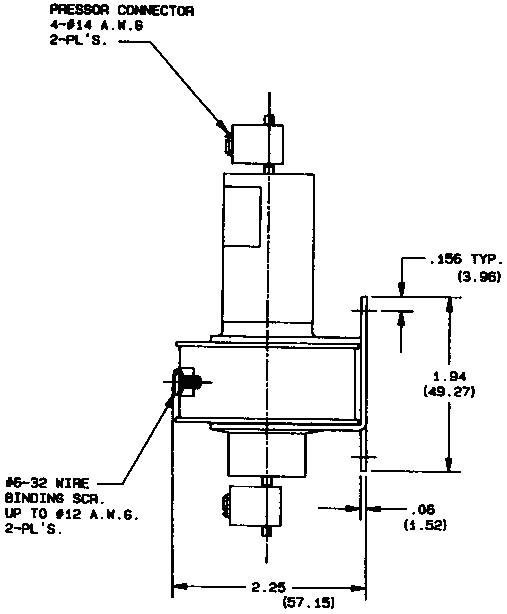

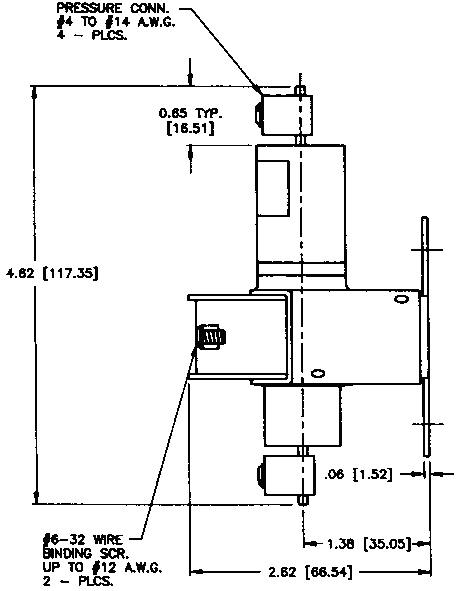

| Load Connectors: |
Pressure Connector #4-14
AWG Cu. |
| Coil Terminals: |
#6-32 Wire Binding Screw,
Max. #12 AWG
Cu. |
| Breakdown Voltage: |
2000 VRMS/Min. Across
Contacts |

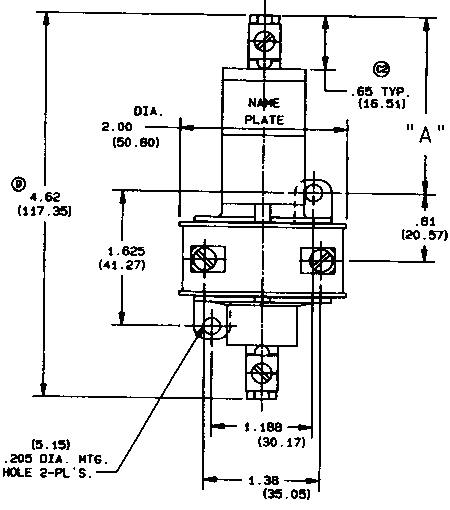

1 Pole -
Normally Open
|
Coil Voltage |
Ohms |
Watts |
Amps |
V.A. |
Part Number |
|
24 volts |
40 dc ohms |
2.80 watts |
0.233 amps |
5.59 |
1035A24AC |
|
120 volts |
902 dc ohms |
3.69 watts |
0.057 amps |
6.84 |
1035A120AC |
|
208 volts |
3100 dc ohms |
3.46 watts |
0.030 amps |
6.24 |
1035A208AC |
|
240 volts |
3700 dc ohms |
3.14 watts |
0.025 amps |
6.00 |
1035A240AC |
|
277 volts |
5410 dc ohms |
3.42 watts |
0.022 amps |
6.09 |
1035A277AC |
|
480 volts |
15000 dc ohms |
3.49 watts |
0.013 amps |
6.24 |
1035A480AC |
|
12 dc volts |
57 dc ohms |
2.50 watts |
0.210 amps |
--- |
1035A12DC |
|
24 dc volts |
230 dc ohms |
2.50 watts |
0.104 amps |
--- |
1035A24DC |

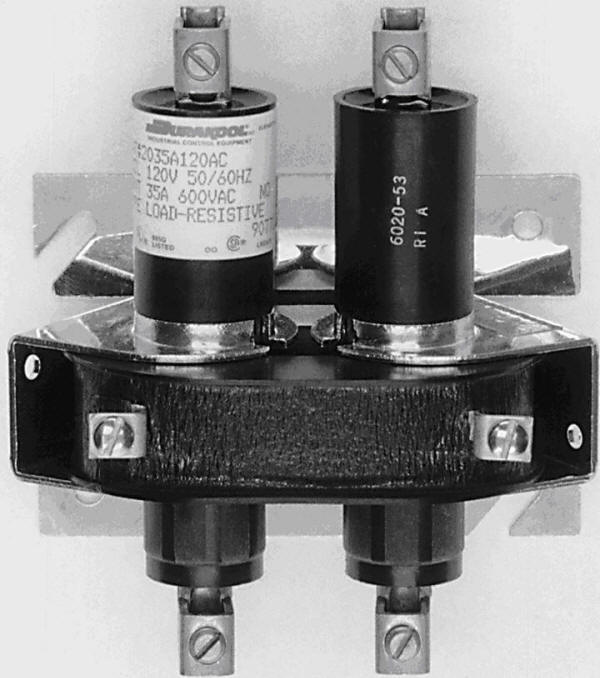

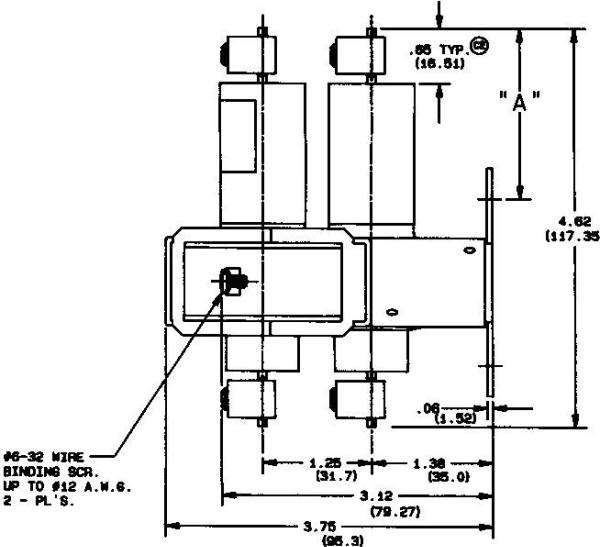

2 Pole -
Normally Open
|
Coil Voltage |
Ohms |
Watts |
Amps |
V.A. |
Part Number |
|
24 volts |
15 dc ohms |
5.10 watts |
0.529 amps |
12.69 |
2035A24AC |
|
120 volts |
350 dc ohms |
7.10 watts |
0.130 amps |
15.60 |
2035A120AC |
|
208 volts |
960 dc ohms |
7.00 watts |
0.075 amps |
15.60 |
2035A208AC |
|
240 volts |
1520 dc ohms |
5.70 watts |
0.055 amps |
13.20 |
2035A240AC |
|
277 volts |
2300 dc ohms |
5.70 watts |
0.045 amps |
12.47 |
2035A277AC |
|
480 volts |
5600 dc ohms |
5.80 watts |
0.029 amps |
13.92 |
2035A480AC |
|
12 dc volts |
24 dc ohms |
6.00 watts |
0.500 amps |
--- |
2035A12DC |
|
24 dc volts |
90 dc ohms |
6.40 watts |
0.266 amps |
--- |
2035A24DC |

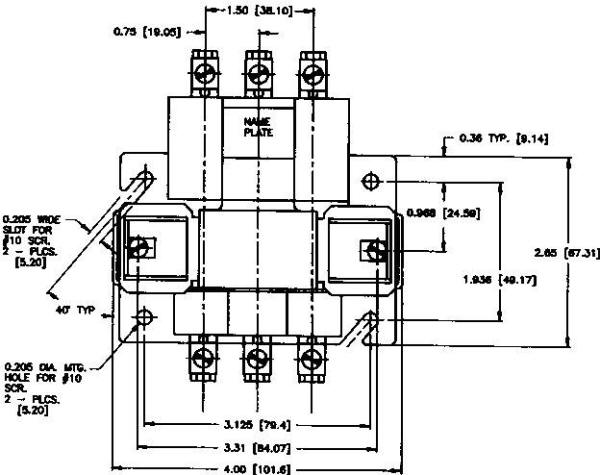

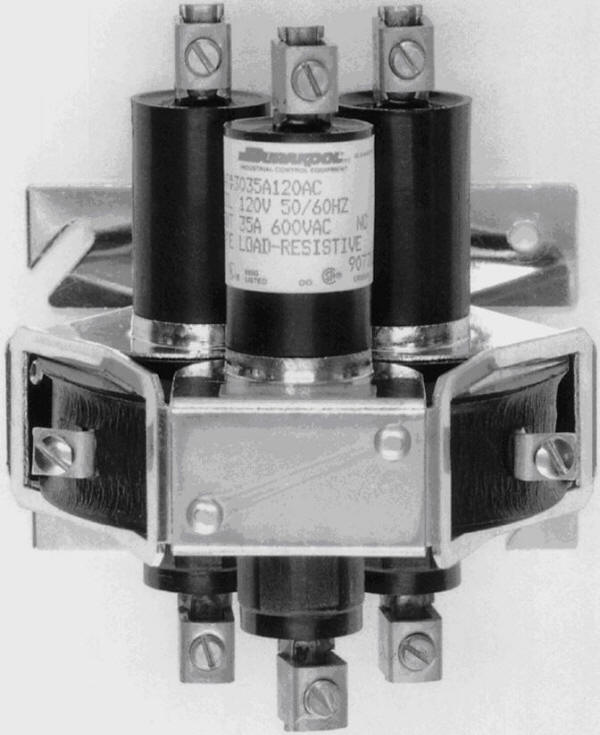

3 Pole -
Normally Open
|
Coil Voltage |
Ohms |
Watts |
Amps |
V.A. |
Part Number |
|
24 volts |
5 dc ohms |
11.10 watts |
1.270 amps |
30.48 |
3035A24AC |
|
120 volts |
135 dc ohms |
9.20 watts |
0.220 amps |
26.40 |
3035A120AC |
|
208 volts |
480 dc ohms |
8.70 watts |
0.111 amps |
23.09 |
3035A208AC |
|
240 volts |
520 dc ohms |
9.20 watts |
0.109 amps |
26.16 |
3035A240AC |
|
277 volts |
830 dc ohms |
8.10 watts |
0.081 amps |
22.44 |
3035A277AC |
|
480 volts |
2100 dc ohms |
9.40 watts |
0.055 amps |
26.40 |
3035A480AC |
|
12 dc volts |
12.8 dc ohms |
11.20 watts |
0.938 amps |
--- |
3035A12DC |
|
24 dc volts |
51 dc ohms |
11.30 watts |
0.470 amps |
--- |
3035A24DC |
|
Secure
Online Ordering
*Delivery time: typically ships in 1 working day or less plus the time of
your selected UPS shipping method. Because
these products contain mercury, restrictions have been imposed by some states.
Please check your states laws for mercury restrictions before purchasing,
especially in California. Your shipping cost will be displayed in your shopping cart. |
|
Item ID |
Catalog# |
Description |
Price |
Click "Select" below to see the actual quantity in stock |
|
DURA10011 |
1035A120AC |
Coil Voltage: 120 volts AC -
1
Pole - Normally Open - 35 Amp Mercury Relay Contactor Power Control |
$44.00 |
 |
|
DURA10005 |
2035A120AC |
Coil Voltage: 120 volts AC - 2
Pole - Normally Open - 35 Amp Mercury Relay Contactor Power Control |
$47.27 |
|
|
DURA10008 |
3035A120AC |
Coil
Voltage: 120 Volts AC - 3 Pole Normally Open - 35 Amp Mercury Relay Contactor
Power Control |
$81.82 |
|
|
DURA10010 |
1035A24AC |
Coil
Voltage: 24 Volts AC - 1 Pole Normally Open - 35 Amp Mercury Relay Contactor
Power Control |
$47.27 |
|
|
DURA10041 |
2035A24AC |
Coil
Voltage: 24 Volts AC - 2 Pole Normally Open - 35 Amp Mercury Relay Contactor
Power Control |
$53.45 |
|
|
DURA10009 |
3035A24DC |
Coil
Voltage: 24 Volts DC -
3 Pole Normally Open - 35 Amp Mercury Relay Contactor
Power Control |
$81.82 |
|
|
*This delivery time is for normal conditions and
is subject to factory availability. |
|
