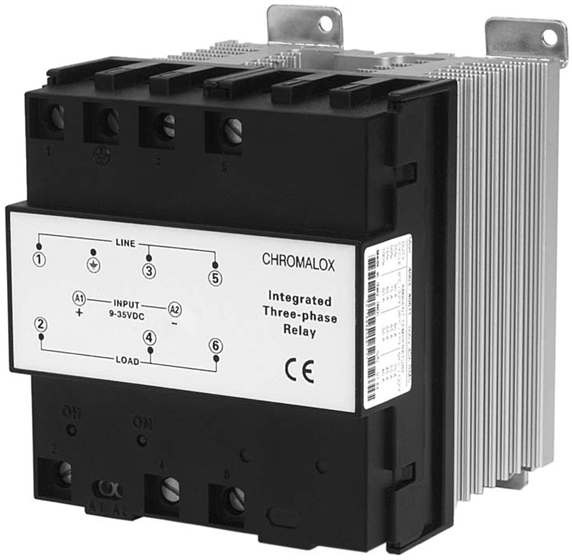

Chromalox 4003 DIN-Rail Mount Three Phase Power Controller

Mor Electric Heating is an authorized distributor for Chromalox®

Replacement/Crossover of Mercury Relay Contactors

• UL Listed

•
• DIN-Rail Mount Three Phase Power Controller
• Three Phase Loads up to 60 Amps, 575 Vac
• 9-35 Vdc, 100-240 Vac or 24 Vac Input Signals
• Easy DIN-Rail or Sub-Panel Installation
• Size Compatible for Easy Replacement of Mercury Displacement Relays
• Zero-Crossover Switching to Minimize RFI and EMI
• Optional Integral Heatsink Thermostat
• LED Indication of SSR ON
• DV/DT Protection

Description
The 4003 series solid state power controllers will switch up to 60 Amps 3 phase, 600Vac. The Vac input unit can easily replace any mercury or magnetic contactors. The Vdc input is
compatible with existing SCRs and will work with a variety of process controllers.

The 4003 series solid state power controllers combine Chromalox’s years of SCR technology experience and know-how with new components and packaging technologies to deliver reliable and easy-to-install SCR components. The 4003 series power controllers are compactly packaged to allow for fast and easy DIN-rail or sub-panel mounting, with wiring terminals easily accessible from the front. The depth and height of all controllers in the 4003 series are consistent, optimizing the mounting and wiring of mixed controller types. Optional heatsink thermostat protects the SCRs from failure.

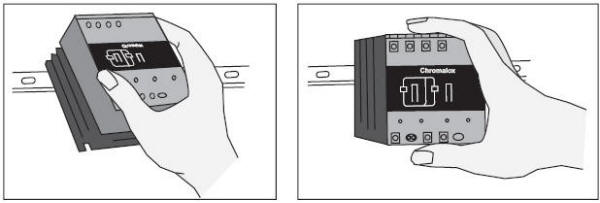

Quick, Easy Installation
The 4003 series power controllers are compactly packaged to allow for fast and easy DIN-rail or sub-panel mounting, with wiring terminals easily accessible from the front.

Electrical and Safety Features
• Ground Potential Heatsink
• SCR to Heatsink Isolation
• SCR resistant to Electrical Spikes, PIV up to 1600V

Minimal Electrical Noise
The dependable back to back SCRs fire at the zero-crossover (zero voltage) point in the sine wave. This minimizes both RFI and EMI that can create havoc for other electronic equipment in a plant.

Installation

Dimensions

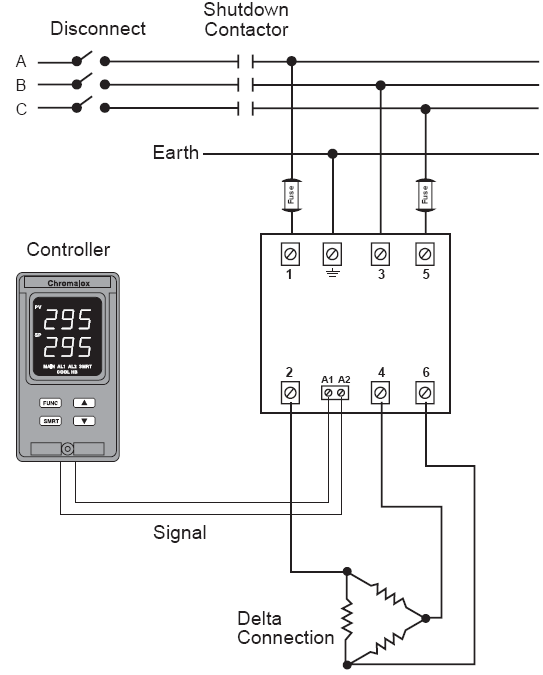

Three Phase, 2-Leg Connection

Specifications
Mounting ........................................................ Wall or DIN Rail

Terminals ........................................................ Screw terminals with front access

Load Type ....................................................... Resistive

Inputs
Voltage dc
Off State ................................................ 0-4Vdc
On State ................................................ 9 to 35Vdc (20ma continuous)

Voltage ac
100-240Vac models
Off State .......................................... 0 to 10Vac
On State .......................................... 100 to 240Vac (±10%)
24Vac models
Off State .......................................... 0 to 4Vac
On State .......................................... 24Vac (±15%)

Min. Holding Current ................................. 50mA RMS

Voltage Drop on Power
Semiconductor.............................................. 1.2Vdc

Isolation
Between Power Circuit
and Earth .................................................. 3000V rms
Between Electronics
and Power Circuits................................ 7500V pk

Operating Temperature ............................. 32° to 122°F (0°-50°C)

Humidity .......................................................... 20% to 85% RH Non-Condensing

Storage Temperature ................................. -20° to 70°C

Complete the Model Number using the Matrix provided:

Chromalox Catalog Page Chromalox Info Sheet

You must have the free Adobe Acrobat Reader plug-in.

Secure Online Ordering Delivery time: typically ships in 1 working day or less plus allow additional time for your selected UPS or FedEx shipping method.  Your shipping cost will be displayed in your shopping cart.
Item ID	PCN#	Catalog#	Description	Price	Click "Select" below to see our actual real-time quantity in stock
CHROM329762	329762	4003-40610	40AMP 3PH 600V, 100 to 240Vac Input	$265.00
CHROM329789	329789	4003-60610	60AMP 3PH 600V, 100 to 240Vac Input	$330.00
The following typically ships in 5-7 working days or less plus allow additional time for your selected UPS or FedEx shipping method.
CHROM329738	329738	4003-20310	20AMP 3PH 400V, 100 to 240Vac Input	$175.00
CHROM307897	307897	4003-20371	20AMP 3PH 400V, 9-35Vdc Input	$185.00
CHROM329746	329746	4003-20610	20AMP 3PH 600V, 100 to 240Vac Input	$190.00
CHROM329800	329800	4003-20620	20AMP 3PH 600V, 24Vac Input	$175.00
CHROM307926	307926	4003-20671	20AMP 3PH 600V, 9-35Vdc Input	$200.00
CHROM307934	307934	4003-40671	40AMP 3PH 600V, 9-35Vdc Input	$275.00
CHROM307942	307942	4003-60671	60AMP 3PH 600V, 9-35Vdc Input	$340.00
